Manufacturer	Jetway
Model Number	JNF731-3855U
CPU	Intel Celeron 3855U 1.60GHz 2C/2T; 2MB Cache; 15W TDP
Chipset	SoC
Memory	1 x DDR4 SODIMM Slot Maximum 16GB Capacity Non-ECC, Un-Buffered Memory 2133MHz Minimum
Video	Intel HD Graphics 510
Storage Technology	1 x SATA 6.0Gb/s 1 x mSATA
Connectivity	4 x Intel Gigabit LAN (3 x i211AT & 1 x i219LM)

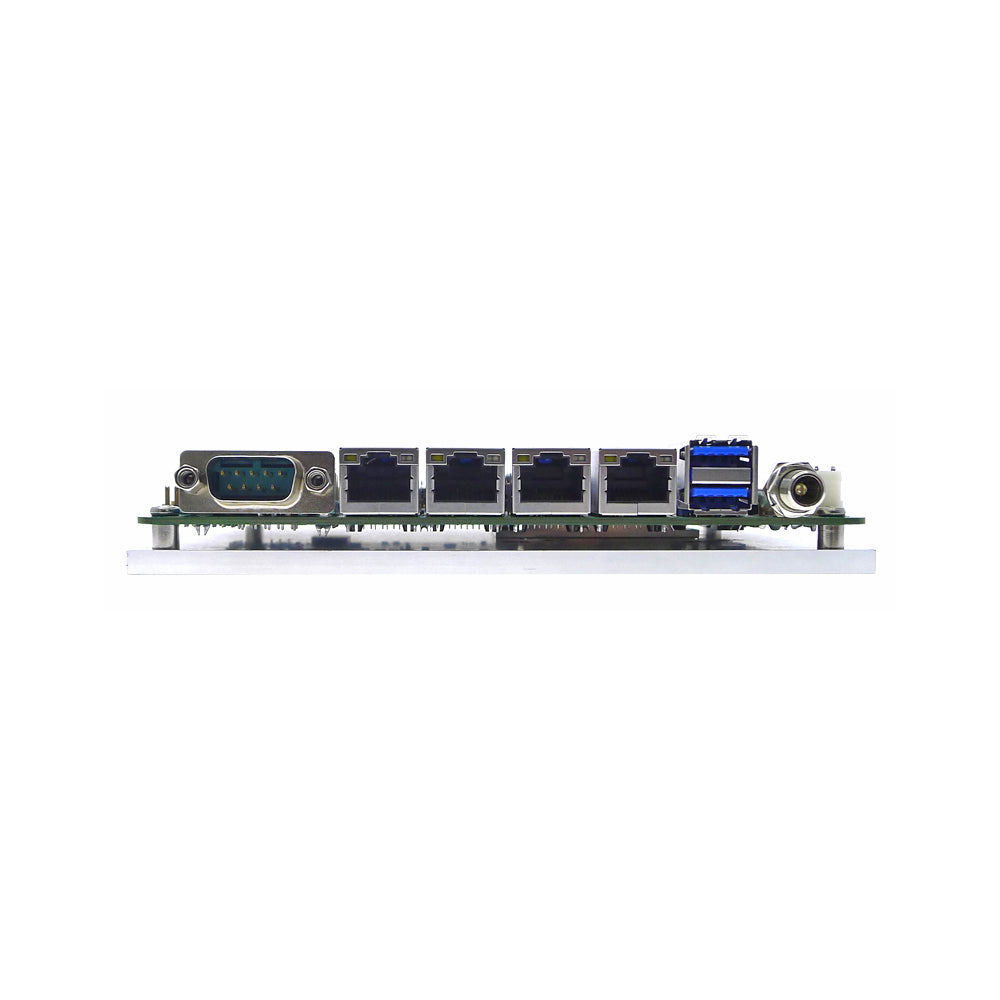

Rear I/O	1 x Serial 4 x RJ45 LAN 2 x USB 3.0 1 x 12V DC-IN Jack
Onboard I/O Headers	2 x Mini PCI Express Slot (1 * Full-size, 1 * Half-size) 1 x Serial Headers (RS232/422/485) 2 x USB Pin Headers for up to 3 additional USB 2.0 Ports 1 x 19-pin HDMI 1.4 Header (4096 * 2304 @ 24Hz) 1 x SIM Card Reader Socket 1 x 8-bit GPIO Header 1 x AT/ATX Mode Jumper 1 x Chassis Intrusion Header 1 x 7-pin PS/2 Mouse/Keyboard Header 4 x 2-pin LAN LED Header 1 x 5-pin SMBUS Header 1 x 4-pin Fan Header 1 x 4-pin Floppy Power Output (Male) 1 x 2-pin +12V Alternate Power Connector
Environmental	Operating Temperature : 0 ~ 60°C Storage Temperature : -20 ~ 85°C CE, FCC, RoHS, REACH
Form Factor	3.5" SBC 148mm x 102mm (5,8" x 4.0")
Warranty	2-Year Manufacturer's Warranty
Included in Box	NF731-3855U Motherboard SATA Cables (Data/Power) HDMI Header Cable Instruction Manual and Drivers & Application Disc
