Manufacturer	Jetway

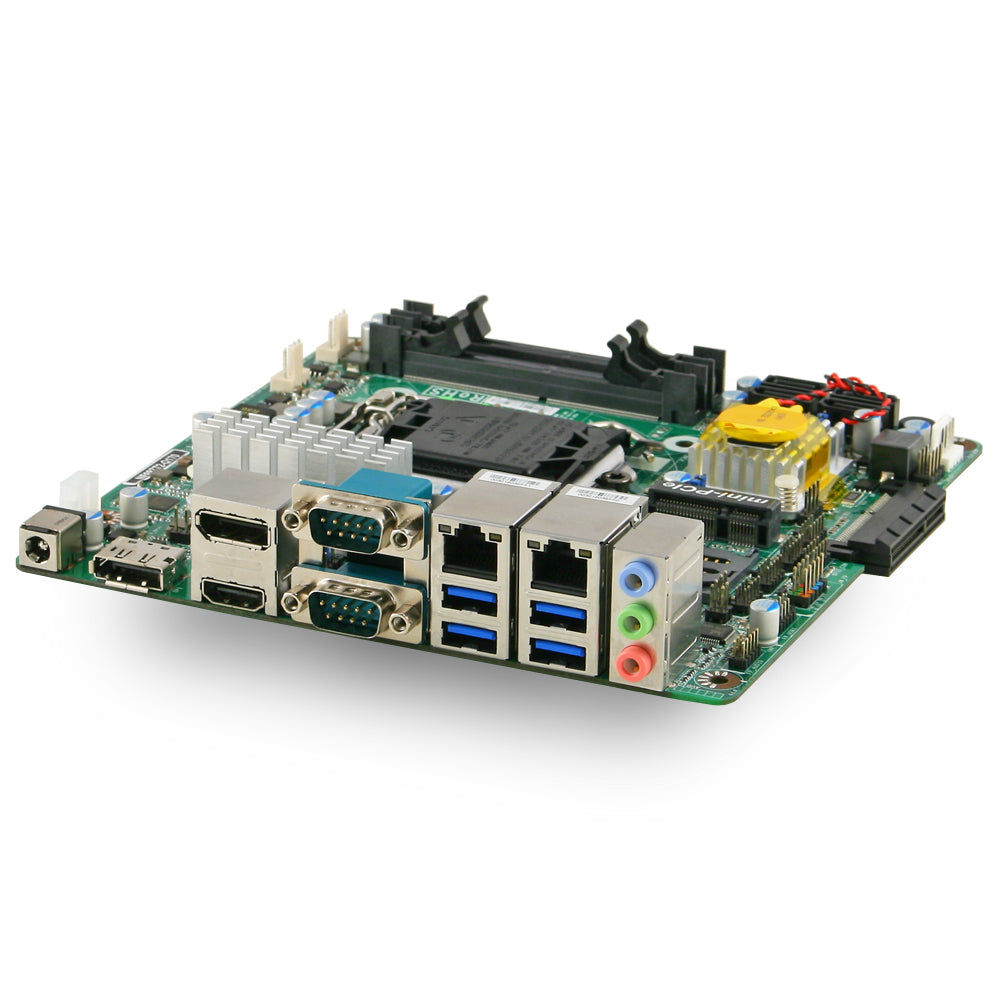

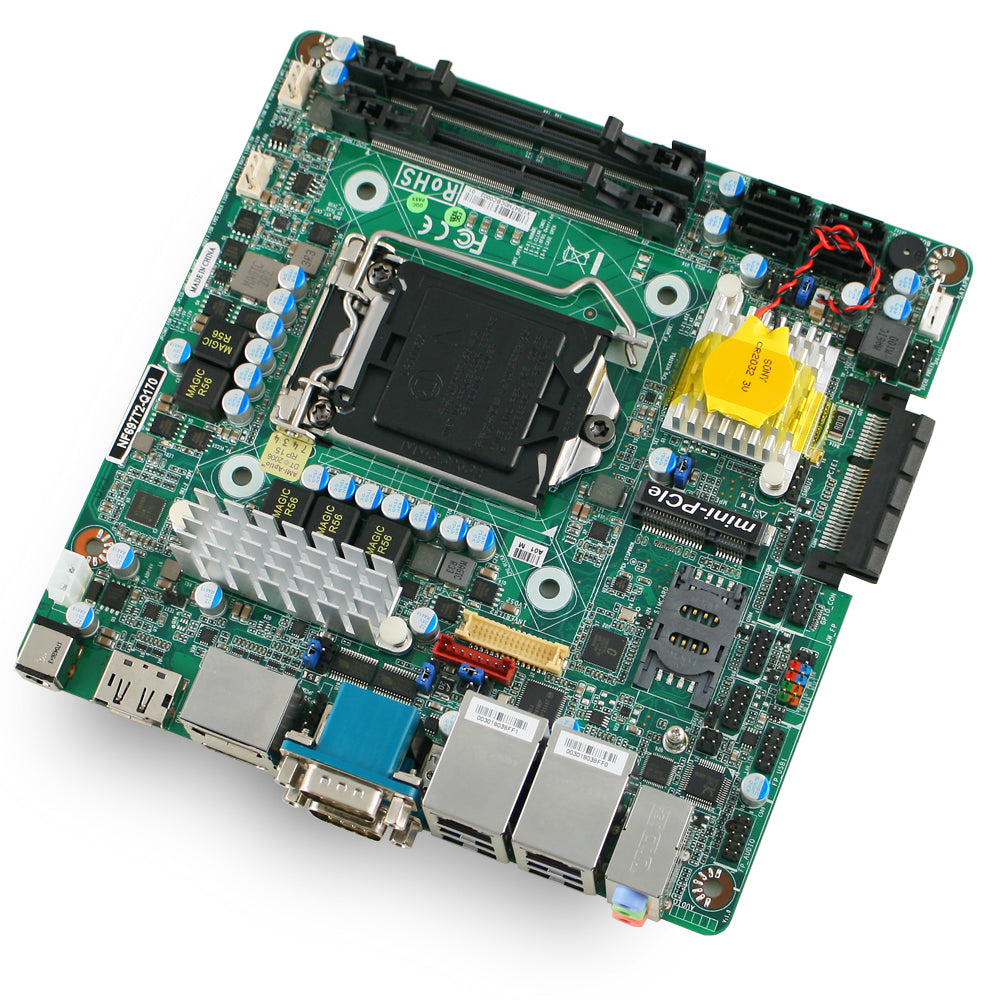

Model Number	NF697T2-Q170
CPU	6th and 7th Generation Intel Core i3, i5, i7 Processors 6th and 7th Generation Intel Celeron and Pentium Processors LGA 1151
Chipset	Intel Q170
Memory	2 x DDR4 SODIMM Slots Maximum 32GB Capacity; Non-ECC, Un-Buffered Memory 2133MHz Minimum Dual Channel
Video	Intel HD Graphics (CPU Dependent) 2 x DisplayPort 1.2 (4096 x 2304 @ 60Hz) 1 x HDMI 1.4 (4096 x 2304 @ 24Hz) 24-bit dual channel LVDS (1080p @ 60Hz) Supports Triple Display
Audio	Realtek ALC662VD HD Audio
Storage Technology	4 x SATA 6.0Gb/s RAID 0, 1, 5, 10, JBOD
Connectivity	2 x Intel Gigabit LAN (i211-AT, i219-LM supporting iAMT 11 & vPro)
Expansion	1 x Mini PCI-E (full-size) 1 x Side-port PCI-E 3.0 x4 1 x SIM Card Reader
Rear I/O	1 x DC-IN (9V ~ 24V DC; 2.5/5.5mm) 2 x DisplayPort 1 x HDMI 2 x Serial 2 x RJ45 LAN 4 x USB 3.1 Gen 1 3 x Audio I/O
Onboard I/O Headers	1 x USB 2.0 (up to 2 ports; 2.00mm pitch) 24-bit Dual Channel LVDS AT/ATX Power Mode Header 4 x Serial RS232 (2.00mm pitch) Chassis Intrusion Header PS/2 KB/Mouse Header SMBUS Header 8-bit GPIO Internal 2-pin DC-IN power connector
Environmental	Operating Temperature : 0 ~ 60°C Storage Temperature : -20 ~ 85°C CE, FCC, RoHS, ErP/EuP, REACH
Form Factor	Mini-ITX (170mm x 170mm)
Warranty	2-Year Manufacturer's Warranty
Included in Box	NF697T2-Q170 Motherboard I/O Shield 2 x SATA Cables Full-length mSATA bracket 2 x Serial Header Cables 1 x Peripheral Power Cable Harness Instruction Manual and Drivers & Application Disc
