Manufacturer	Jetway
Part Number	JNF694L-3350
CPU	Intel Celeron N3350 Dual Core Processor 1.10 - 2.40 GHz, 2C/2T 2 MB L2 Cache, 6W TDP
Chipset	SoC
Memory	1 x DDR3L-1866 SODIMM Slots Maximum 8GB Capacity Non-ECC, Un-Buffered Memory Low Voltage 1.35V Required, 1866MHz
Video	Intel HD Graphics 500 200- 650 MHz DisplayPort: 4096x2160 @ 60Hz HDMI: 3840x2160 @ 30 Hz DirectX 12, OpenGL 4.4 Supports up to 3 displays
Audio	Realtek ALC662 HD Audio
Storage Technology	1 x SATA3 6.0Gb/s 1 x M.2 SATA 2242/2260
Connectivity	1 x Realtek RTL8111H GbE LAN
Expansion	1 x PCI-E x1 Slot 1 x Mini PCI-E slot (full-size)

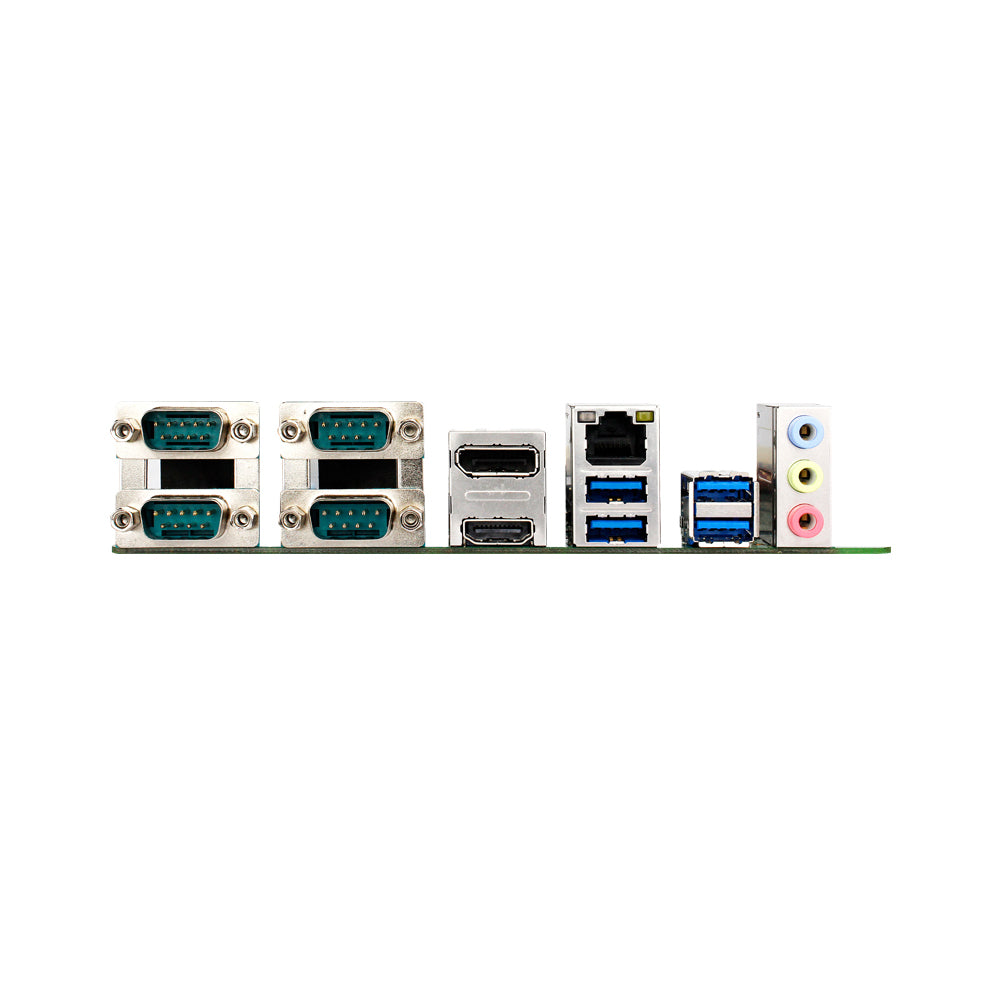

Rear I/O	4 x Serial Port (RS232) 1 x DisplayPort 1 x HDMI 1 x RJ45 GbE LAN 4 x USB 3.0 3 x Audio I/O
Onboard I/O Headers	2 x USB headers (supports up to 3x USB 2.0 Ports) 1 x SMBus header 1 x 24bit LVDS & Inverter (1920x1080 @ 60Hz) 1 x PS/2 header 1 x 8-bit GPIO header 1 x AT/ATX mode jumper
Environmental	Operating Temperature : 0 ~ 60°C Storage Temperature : -20 ~ 85°C CE, FCC, RoHS, REACH
Form Factor	Mini-ITX 170mm x 170mm 6.7" x 6.7" (in inches)
Warranty	2-Year Manufacturer's Limited Warranty
Included in Box	JNF694L-3350 Mini-ITX Motherboard SATA Cable Power Cable Full Height I/O Shield Instruction Manual and Drivers & Application Disc
