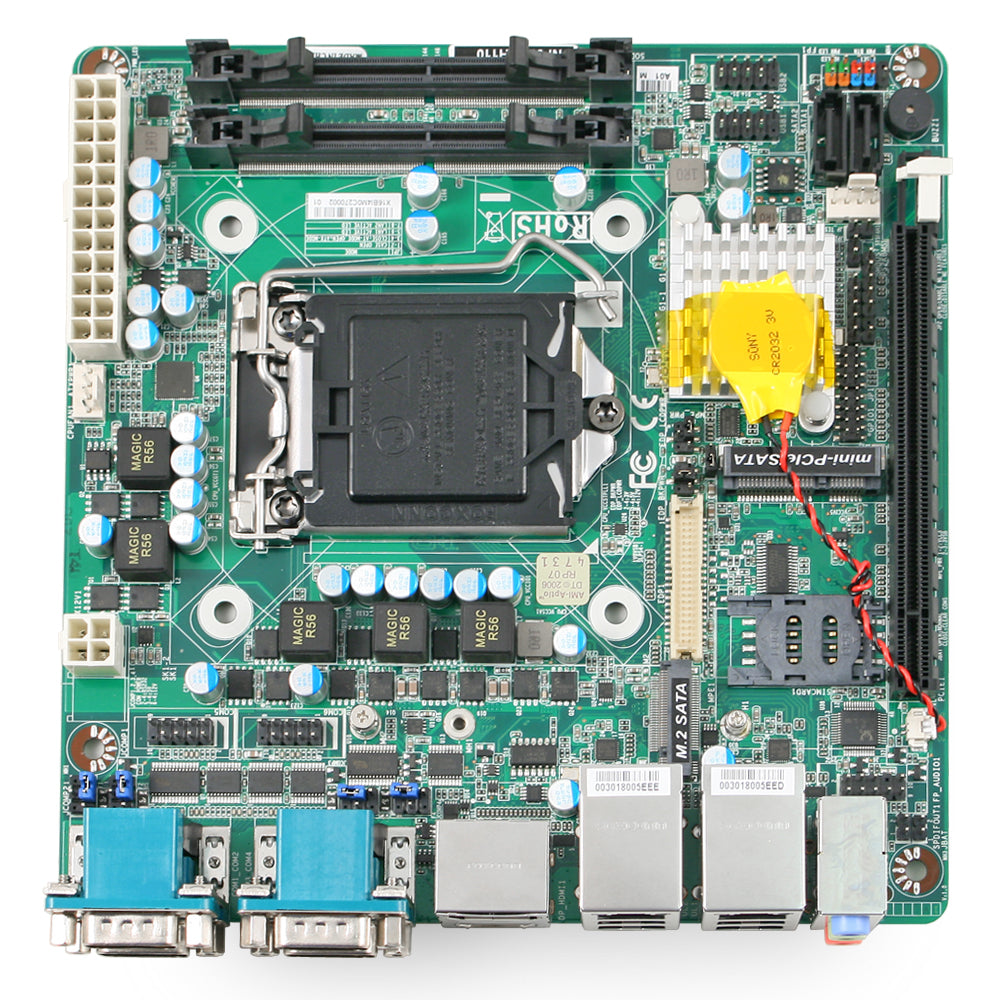

Manufacturer	Jetway Computer
Model Number	JNF693-H110
CPU	Intel LGA1151 Supports 6th and 7th Generation Intel Core i3/i5/i7 Supports 6th and 7th Generation Intel Pentium, Celeron
Chipset	Intel H110
Memory	2 x DDR4 SODIMM Maximum 32GB capacity 2133MHz Minimum Unbuffered, non-ECC memory
Video	Intel HD Graphics (CPU Dependent) Supports Dual Display DisplayPort (4096 x 2304 @ 60Hz) HDMI (3840 x 2160 @ 24Hz)
Storage	2 x SATA 6Gb/s 1 x M.2 SATA (M key, 2242/2260) 1 x mSATA (shared with Mini PCIe slot) 1 x SIM Card reader (not a SIM Card modem)
Connectivity	2 x Realtek GbE LAN
Audio	Realtek ALC662 HD Audio
Expansion Slots	1 x PCI Express x16 (2.0) 1 x Mini PCIe (shared with mSATA)
Power	1 x 24-pin ATX Connector 1 x 4-pin 12V Connector
Rear Panel I/O	1 x Serial (RS232/422/485 Selectable) 3 x Serial (RS232 Only) 1 x DisplayPort 1 x HDMI 2 x RJ45 LAN 4 x USB 3.0 3 x Audio I/O
Onboard I/O Headers	1 x Serial (RS232) 1 x Serial (RS232/422/485 Selectable) 2 x USB 2.0 (up to 4 ports) 1 x Chassis intrusion header 1 x eDP 1 x AT/ATX power mode 1 x 8-bit GPIO 1 x SMBUS 1 x PS/2 Keyboard/Mouse
Form Factor	Mini-ITX 170mm x 170mm (6.7" x 6.7")
BIOS	AMI 64MB Flash ROM
Warranty	2-Year Manufacturer's Warranty
Compliance	CE, FCC, RoHS, ErP/EuP, REACH

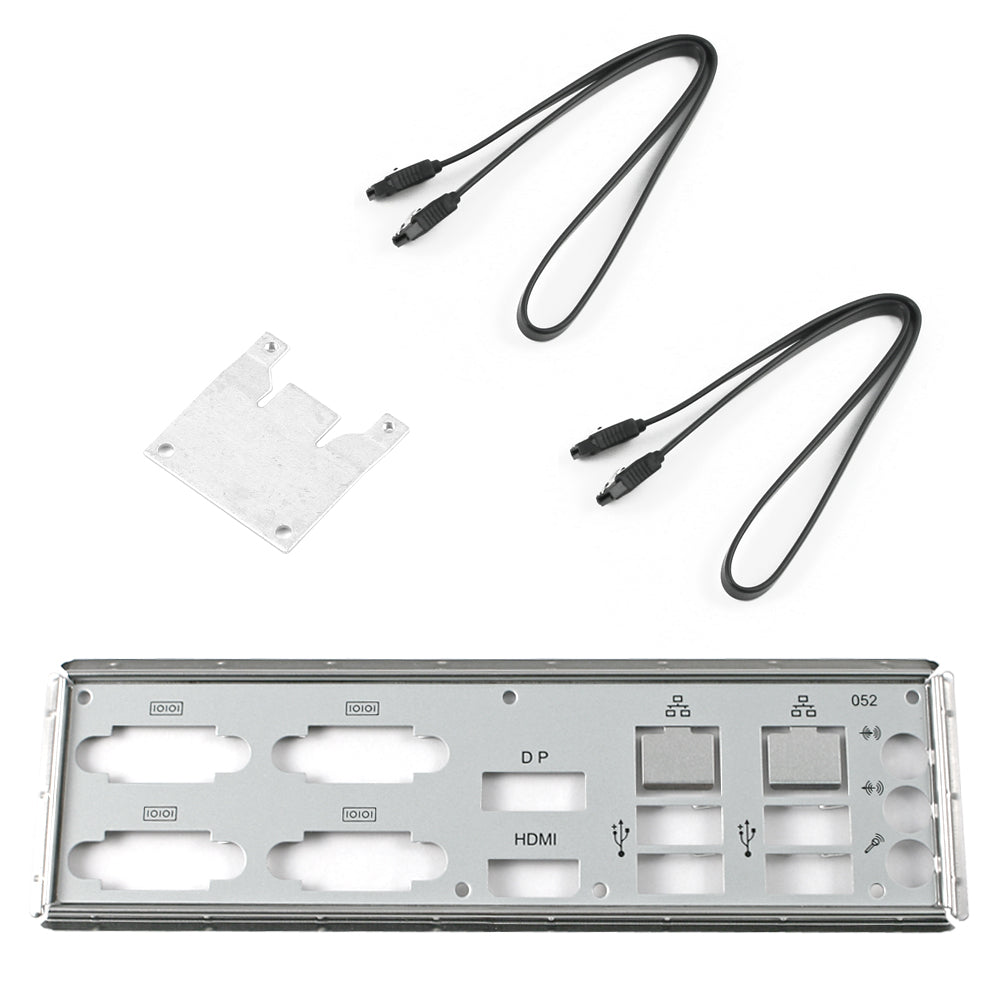

Included in Box	Jetway JNF693-H110 Mini-ITX Motherboard 1 x I/O Shield 2 x SATA Cables 1 x Full-height Mini PCIe Bracket 1 x Driver Disc and Manual
