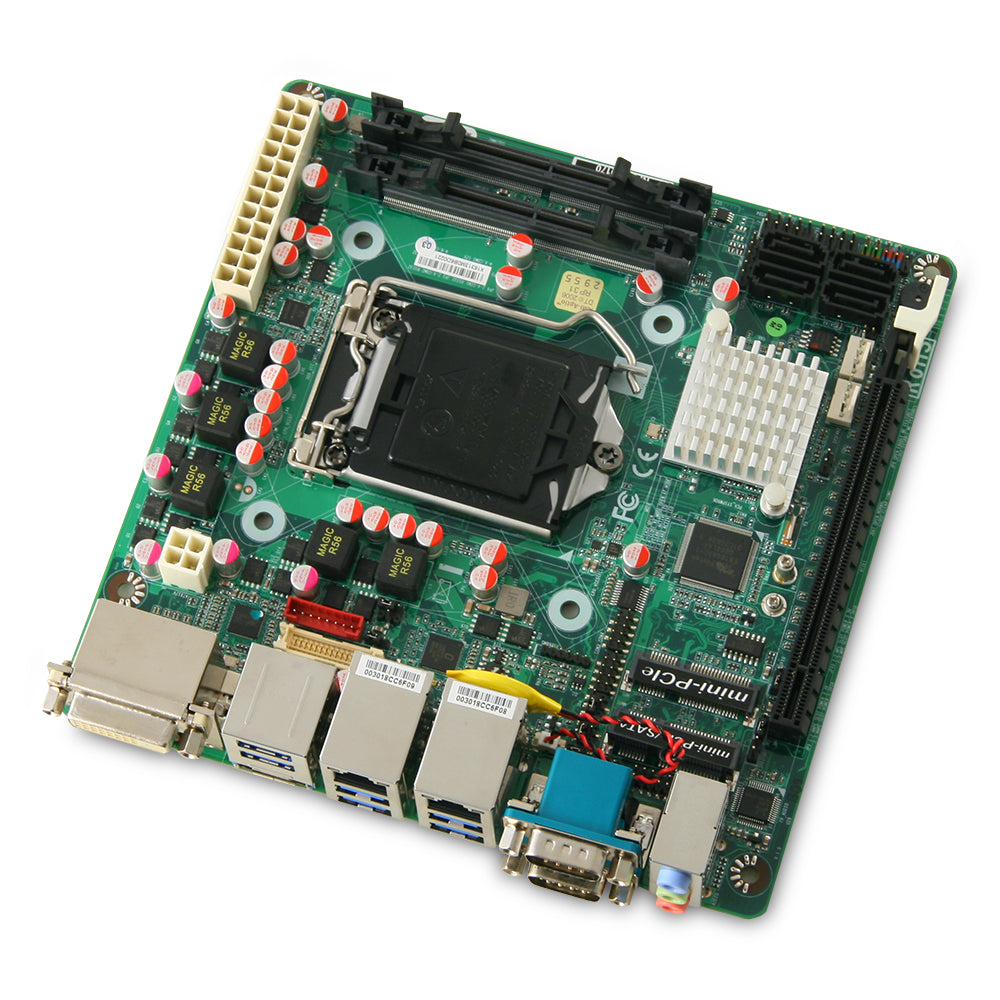

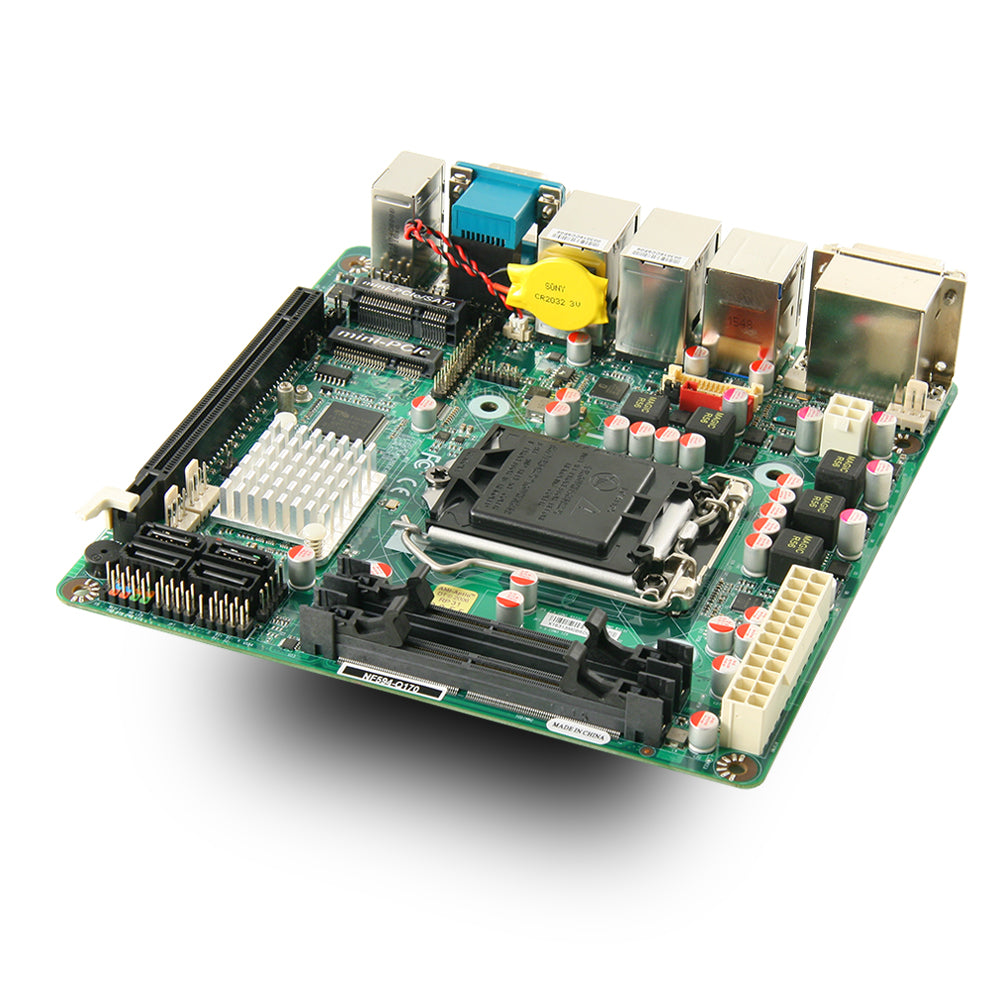

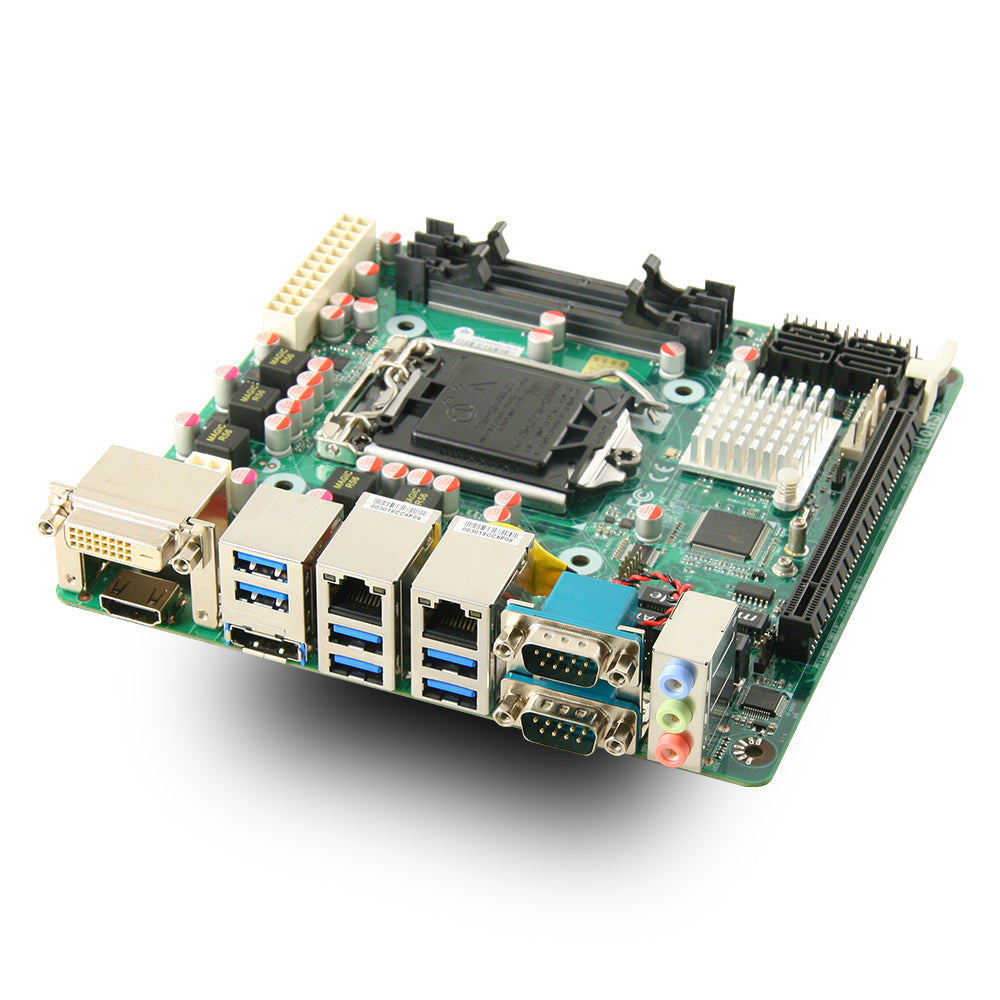

| Jetway NF594-Q170 Intel Core LGA1151 Mini-ITX Motherboard with iAMT 11.0, vPro |
|
| Manufacturer |
Jetway |
| Part Number |
NF594-Q170 |
| CPU |
Supports 6th Gen Intel Core i3/i5/i7 Processor
LGA 1151 |
| Chipset |
Intel Q170 Express |
| Memory |
2 x 260-pin DDR4-2133 SODIMM Memory
Maximum 32GB Capacity
Dual Channel Support |
| Video |
Intel HD Graphics (CPU-Dependent)
HDMI Max Resolution: 4096x2160@60Hz
DVI-D Max Resolution: 1920x1080
DisplayPort Max Resolution: 4096x2304@60z |
| Audio |
Realtek ALC662VD HD Audio |
| Storage |
4 x SATA3 6Gb/s
RAID 0, 1, 5, 10, and JBOD |
| Connectivity |
1 x Intel i219-LM PHY Gigabit LAN with iAMT 11.0
1 x Intel i211-AT PCI-E Gigabit LAN |
| Expansion Slots |
1 x PCI-E x16 (3.0)
1 x mSATA/Mini PCI-E slot (full size)
1 x Mini PCI-E slot (half size) |
| Power |
1 x 24-pin ATX Connector
1 x 4-pin 12V ATX Connector |

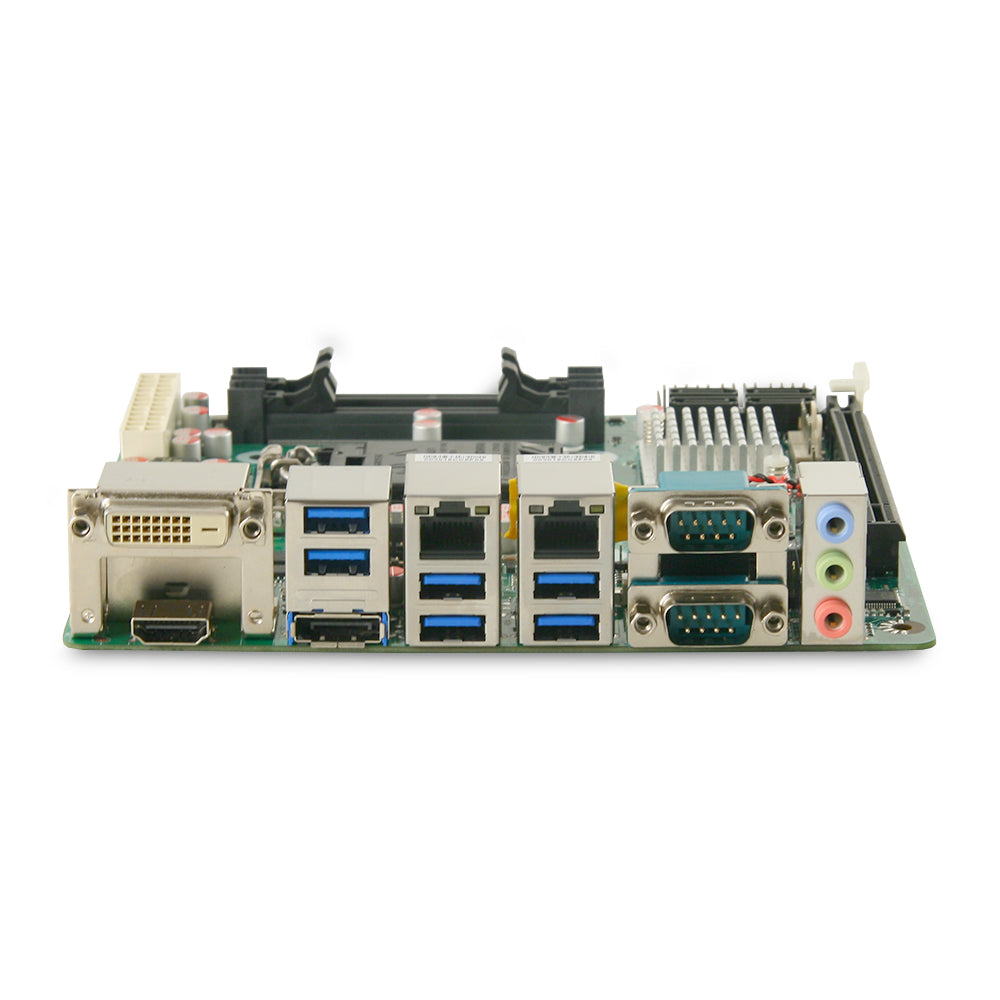

| Rear Panel I/O |
1 x DVI-D
1 x HDMI
6 x USB 3.0
1 x DisplayPort
2 x RJ45 LAN
1 x COM (RS232)
1 x COM (RS232/422/485O)
3 x Audio I/O |
| Onboard I/O Headers |
1 x USB 2.0 header (Supports up to 2 ports)
1 x Serial header (RS232)
1 x Serial header (RS232/422/485)
1 x 24-bits Dual Channel LVDS Connector/Inverter
1 x Chassis Intrusion jumper
1 x AT/ATX Mode jumper
1 x 8-bit GPIO header
1 x SMBUS header
1 x 2-pin HDMI_SPDIF out header
1 x PS2 Keyboard/Mouse header
3 x 4-pin Fan headers |
| Special Features |
Support AHCI, ACPI S3, CPU Smart Fan
Watchdog Timer 10-255 min/sec |
| Form Factor |
Mini-ITX
170mm x 170mm
6.7" x 6.7" |
| BIOS |
AMI 128MB Flash ROM |
| Warranty |
2-Year Manufacturer's Limited Warranty |
| Compliance |
CE, FCC, RoHS, ErP/EuP, REACH |
| Environmental |
Operating Temperature: 0 ~ 60 C
Storage Temperature: -20 ~ 85 C |

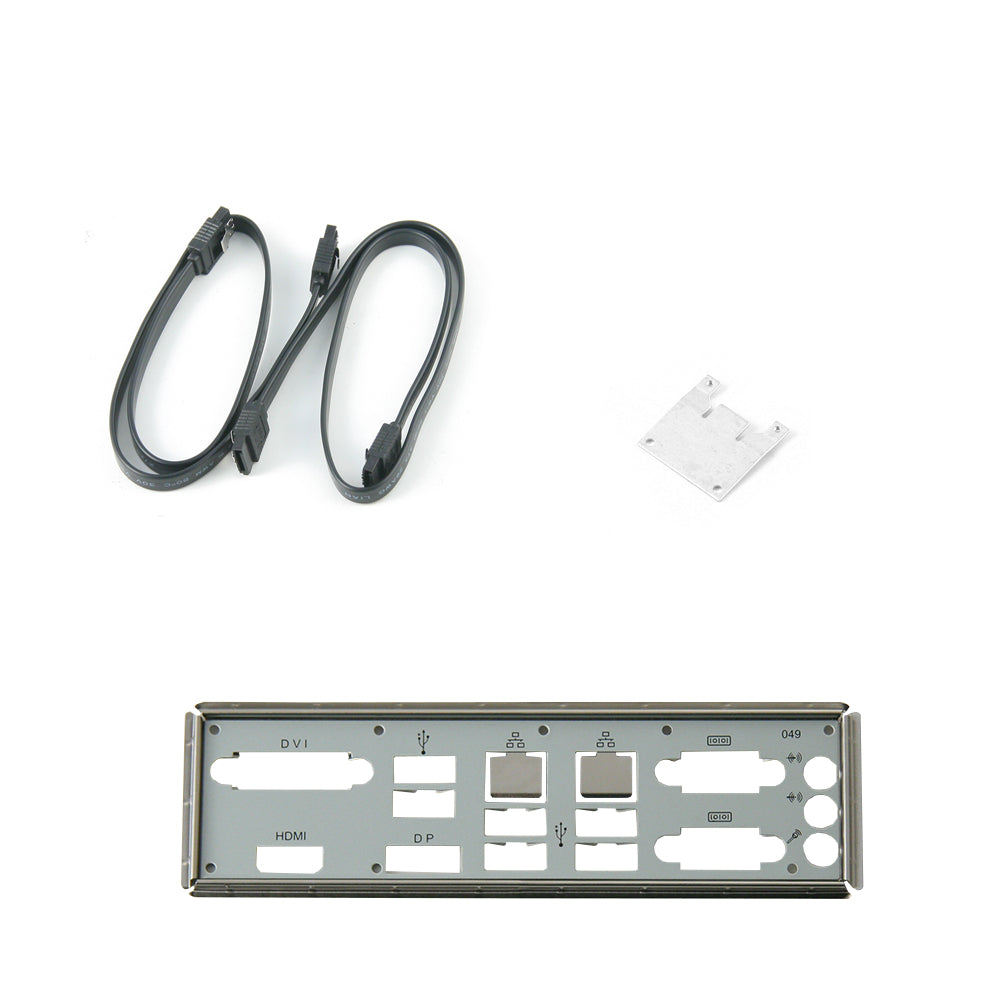

| Included in Box |
Jetway NF594-Q170 Mini-ITX Motherboard
1 x I/O Shield
1 x Driver Disc
1 x Manual
4 x SATA Cables |
