Jetway NF532-2930 Intel Celeron N2930 Industrial 3.5" SBC Dual LAN Motherboard
Manufacturer	Jetway
Part Number	JNF532-2930
Model Number	NF532-2930
CPU	Intel Celeron N2930 1.83 - 2.16 GHz 4 core / 4 Threads 7.5W TDP (4.5W SDP), 22nm, 2MB Cache, 64-bit
Chipset	SoC
Memory	1 x DDR3L SODIMM Memory Maximum 8GB Capcity 1333MHZ Minimum Low Voltage 1.35V Required
Video	Intel HD Graphics 313 - 854 MHz
Audio	Realtek ALC662 HD Audio
Storage	1 x SATA2 3.0Gb/s Drive 1 x mSATA/Mini PCI-E
Connectivity	2 x Realtek RTL8111G GbE 10/100/1000 Mbps
Expansion Slots	1 x Mini PCI-E Slot (half size) 1 x SIM Card Slot
Power	On-board DC-DC Converter +9-24V DC-IN barrel connector (~2.5/5.5mm)

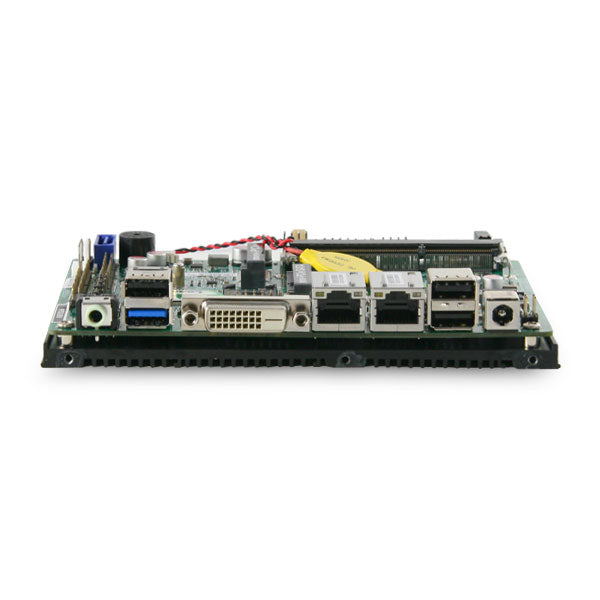

Rear Panel I/O	1 x Audio Out 3 x USB 2.0 1 x USB 3.0 1 x DVI-D 2 x RJ45 1 x DC-IN
Front Panel I/O	2 x Power LED 1 x Power Button 1 x Reset Button
Onboard I/O Headers	1 x Fan header 1 x Front Panel header 2 x LAN LED header 2 x USB 2.0 headers (Supports up to 2 ports each) 1 x S/PDIF Out header 1 x SMBUS header 1 x GPIO header 1 x Front Panel VGA header 1 x SM_BUS header 4 x Serial port header 1 x PS/2 header
Form Factor	3.5" SBC 148mm x 102mm
BIOS	AMI 64MB Flash ROM
Warranty	2-Year Manufacturer's Warranty
Compliance	CE, FCC, ErP
Environmental	Operating Temperature: 0 ~ 40 C Storage Temperature: -20 ~ 85 C
Included in Box	Jetway NF532-2930 3.5" SBC Motherboard 1 x SATA Cable 1 x SATA Power Cable 1 x Mini PCI-E full length adapter 1 x DVI to VGA adapter
