| Product ID | MWS-TRX40-DXL |
| CPU | AMD 3rd Generation Threadripper Processor AMD Socket sTRX4 Liquid Cooled |
| Chipset | AMD TRX40 |
| Memory | Includes 64GB DDR4 DIMM 8 x 288-pin DDR4 DIMM slots Maximum 256GB Capacity 2133MHz Minimum Quad-Channel Supports ECC or non-ECC, Un-buffered Memory |
| Video | GPU Dependent |
| Audio | Realtek ALC4050H+ALC1220 7.1 Channel HD Audio |
| Storage Technology | 8 x SATA3: 6Gb/s Supports RAID 0, 1, 10 2 x M.2: PCI-E 4.0 x4 1 x M.2: SATA or PCI-E 4.0 x4 |
| Connectivity | 1 x Dragon RTL8125AG 2.5GbE LAN Supports Wake-On-LAN Supports PXE 1 x Inte I211-AT GbE LAN Supports Wake-On-LAN Supports PXE 1 x Intel 802.11AX WIFI Module Dual Band (2.4/5 GHz) Bluetooth 5.0 + High speed class II |
| Expansion Slots | 4 x PCI-E 4.0 x16 slots Quad: x16/x8/x16/x8 1 x M.2 Vertical E-Key (Occupied by WIFI Module) |
| Rear Panel I/O | 2 x Antenna Connector 2 x BIOS Flashback Button 1 x RJ45 GbE LAN 6 x USB 3.2 (Gen1) 1 x PS/2 Keyboard/Mouse 1 x USB 3.2 (Gen2) Type-C 1 x RJ45 2.5GbE LAN 2 x USB 3.2 (Gen2) Type-A 5 x Audio I/O 1 x S/PDIF |
| Front Panel I/O | 1 x Power Button 1 x Reset Button 2 x USB 3.0 2 x Audio I/O 1 x USB 3.1 Type-C 1 x ARGB Control Button (M: Mode, C: Color) 2 x USB 3.0 |
| Drive Support | 1TB NVMe M.2 Solid State Drive Installed 4TB 3.5" 7200PRM Enterprise SATA Hard Drive Installed 6 x 2.5" Drive Bays 4 x 3.5"/2.5" Drive Bays |
| Cooling | 3 x 120mm/2 x 140mm (Base) (Occupied by Radiator) 1 x 120mm Case Fan (Rear) Supports 3 x 120mm/2x 140mm (Top) Supports 3 x 120mm (Side) |
| Power Supply | 1600W 80+ Gold Power Supply 115-240V, 17-9A, 50-60Hz |
| OS Software | Ubuntu 18.04 LTS NVIDIA CUDA, TensorFlow, Caffe2, PyTorch, Mxnet, DL4J, Docker, Keras |
| Case Dimensions | 18.5" x 11.2" x 20.2" (in inches) 471 x 285 x 513mm |
| Warranty | 1-Year Warranty on Parts and Labor |
PRODUCT ID: MWS-TRX40-DXL

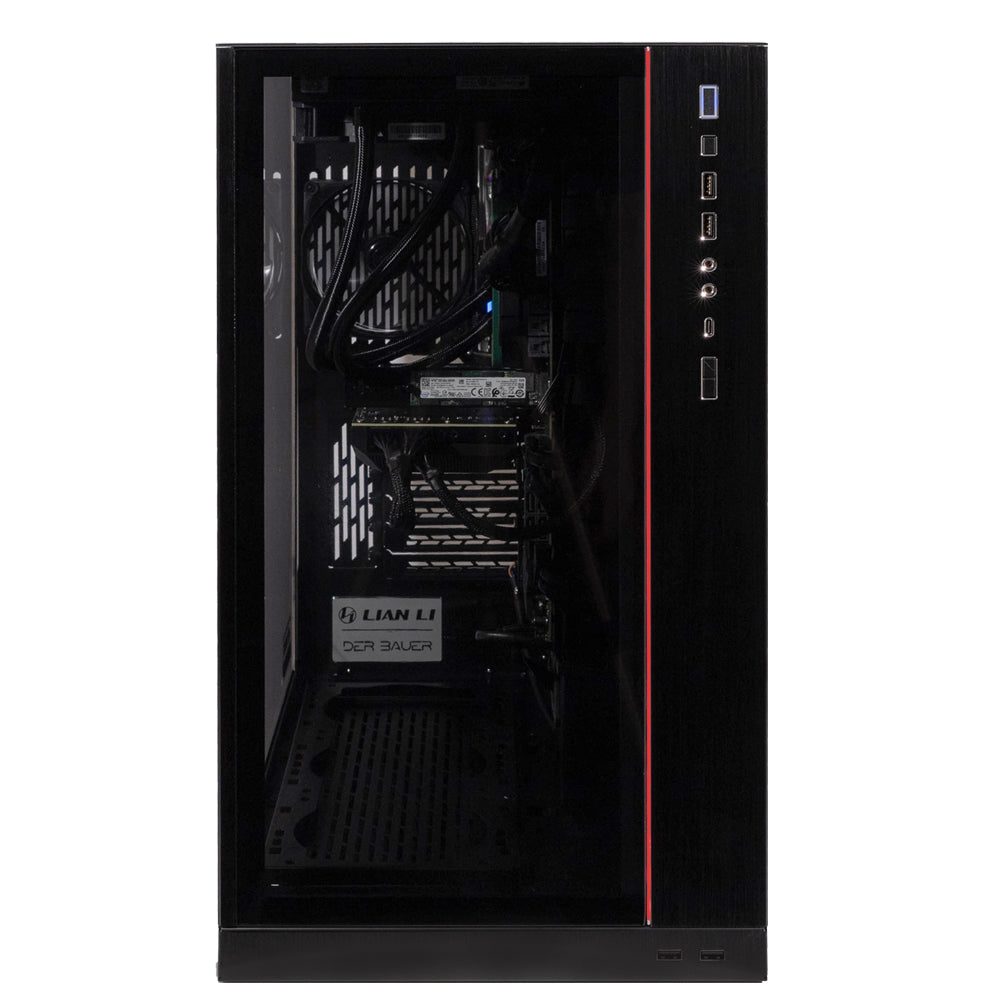

Deep Learning Workstation - AMD Threadripper, Three High Performance GPU Accelerators
This product is discontinued!
