| Manufacturer |
GigaIPC |
| Part Number |
mITX-H31CA |
| CPU |
Supports Intel 8th Gen Core Processors
LGA 1151
Supports up to 65W TDP |
| Chipset |
Intel H310C Express Chipset |
| Memory |
2 x DDR4 SODIMM Slots
Maximum 32GB Capacity
2666/2400 MHz
Dual Channel |
| Video |
Intel HD Graphics (CPU dependent)
HDMI Max Resolution: 4096x2160@30Hz
DisplayPort Max Resolution: 4096x2160@60Hz
VGA Max Resolution: 1920x1200@60Hz
eDP Max Resolution: 3840x2160@60Hz
LVDS Max Resolution: 1920x1080@60Hz |
| Audio |
Realtek ALC269 HD Audio |
| Storage Technology |
2 x SATA3 6Gb/s Ports with one SATADOM Support
1 x M.2 SATA slot (2242/2280) |
| Connectivity |
1 x Intel i219V GbE LAN
1 x Realtek RTL8111HS GbE LAN |
| Expansion Slots |
1 x PCI-E 3.0 x16 slot
1 x M.2 E Key slot (2230) |
| Power |
4-Pin DC-IN (+12V/+19V/+24Vdc)
Alternate 4-Pin ATX Power Connector |

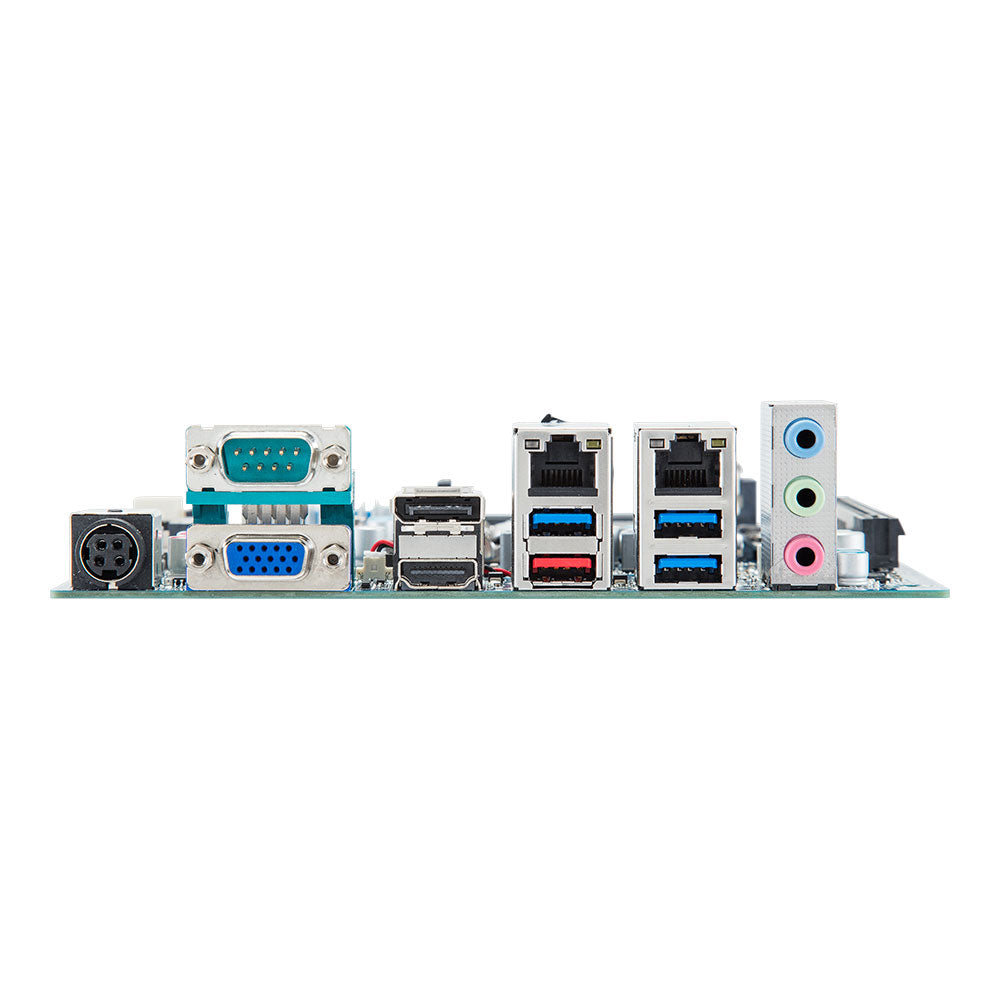

| Rear I/O |
1 x 4-Pin DC-IN (+12/+19/+24Vdc)
1 x Serial COM (RS-232/422/485 and RI/5V/12V)
1 x VGA
1 x DisplayPort
1 x HDMI
2 x RJ45 GbE LAN
4 x USB 3.0
3 x Audio I/O |
| Onboard I/O Headers |
1 x CPU fan header
1 x Front Panel header
1 x Front Panel Audio header
4 x USB 2.0/1.1 headers
1 x COM header (RS-232/422/485 and RI/5V/12V)
1 x Clear CMOS jumper
1 x 8-Pin GPIO (4 in/4 out)
1 x Backlight Control header
1 x eDP Connector
1 x LVDS Connector |
| Form Factor |
Mini-ITX
170 x 170mm
6.7" x 6.7" (in inches) |
| Environmental |
Operating Temperature: 0°C to 60°C (32°F to 140°F)
Non-Operating Temperature: -20°C to 70°C (-4°F to 158°F)
Operating Humidty: 0% - 90% (non-condensing)
Non-Operating Humidity: 0% - 95% (non-condensing) |
| Warranty |
1-Year Manufacturer's Limited Warranty |
