Manufacturer	GigaIPC
Part Number	mITX-4205A
CPU	Intel Pentium J4205 Processor 1.50 - 2.60 GHz 4 Cores / 4 Threads 10W TDP, 14nm, 2 MB Cache
Chipset	SoC
Memory	2 x DDR3L-1866MHz SODIMM Slots Maximum 8GB Capacity Dual Channel
Video	Intel HD Graphics 505 250 - 800 MHz HDMI Max Resolution:3840x2160@30Hz VGA Max Resolution: 1920x1200@60Hz eDP Max Resolution: 3840x2160@60Hz LVDS Max Resolution: 1920x1200@60Hz Note: eDP is alternate with LVDS, only one can be used at a time
Audio	Realtek ALC269 HD Audio
Storage Technology	4 x Marvell 88XE9230 SATA3 Ports Supports RAID 0/1/10 1 x SoC SATA3 Ports Supports SATADOM 1 x mSATA
Connectivity	2 x Realtek RTL8111HS GbE LAN
Expansion Slots	1 x PCI-E 2.0 x1 slot
Power	12V DC-IN Barrel Connector Alternate 4-Pin ATX Connector

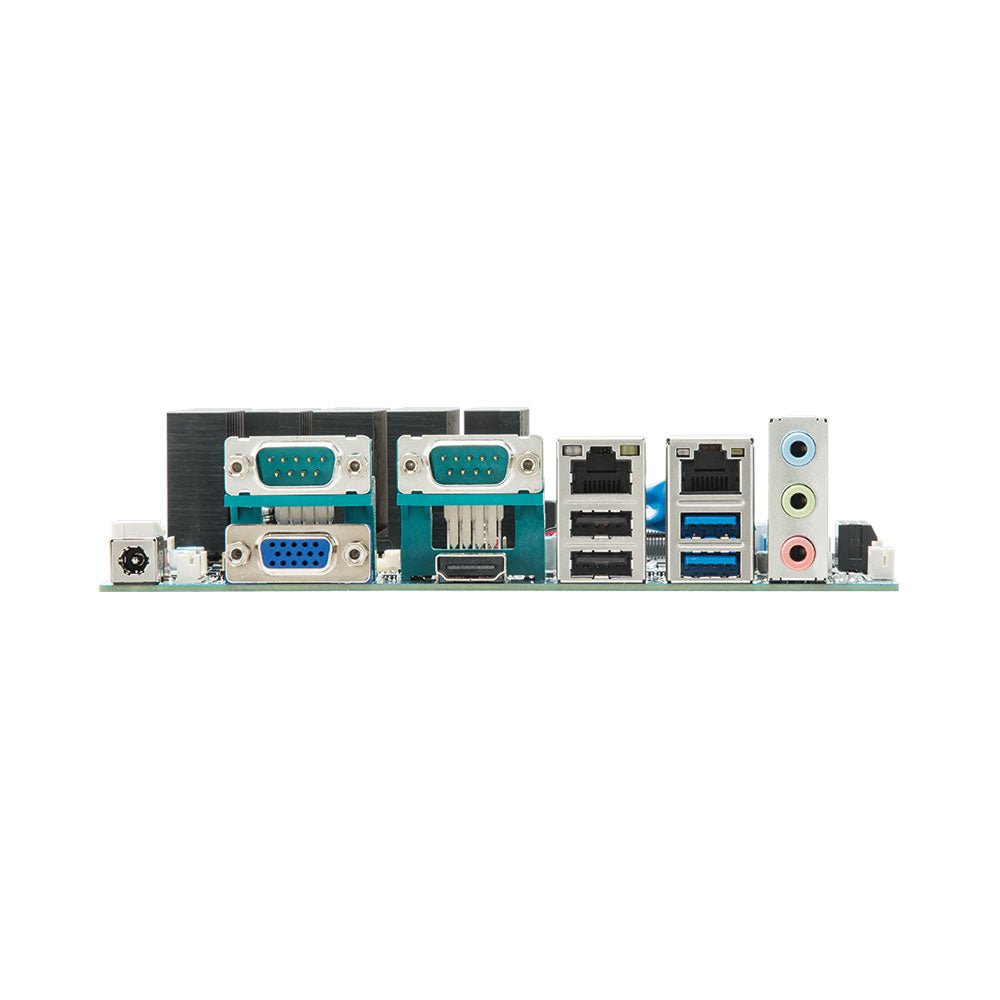

Rear I/O	1 x 12V DC-IN 2 x Serial COM (RS232/422/485 and 5V/12V/RI) 1 x VGA 1 x HDMI 2 x RJ45 GbE LAN 2 x USB 2.0 2 x USB 3.0 3 x Audio I/O
Onboard I/O Headers	1 x PS/2 Keyboard/Mouse header 1 x CPU fan header 1 x System fan header 1 x Front Panel Audio header 2 x USB 2.0/1.1 header 2 x USB 3.0 header 4 x COM header (RS232) 2 x LAN LED headers 1 x Clear CMOS jumper 1 x Case Open header
Form Factor	Mini-ITX 170 x 170mm 6.7" x 6.7" (in inches)
Environmental	Operating Temperature: 0°C to 60°C (32°F to 140°F) Non-Operating Temperature: -20°C to 70°C (-4°F to 158°F) Operating Humidty: 0% - 90% (non-condensing) Non-Operating Humidity: 0% - 95% (non-condensing)
Warranty	1-Year Manufacturer's Limited Warranty
