Manufacturer | GigaIPC |
Model Number | mITX-4105A |
CPU | Intel Celeron J4105 Processor 1.5 - 2.5 GHz 4 Cores / 4 Threads 10W TDP, 4MB Cache |
Chipset | SoC |
Memory | 2 x DDR4-2400MHz SODIMM Slots Maximum 8GB Capacity Dual Channel Support |
Video | Intel UHD Graphics 600 250 - 750 MHz HDMI Max Resolution: 3840x2160@60Hz VGA Max Resolution: 1920x1200@60Hz eDP Max Resolution: 3840x2160@60Hz LVDS Max Resolution: 1920x1200@60Hz eDP connector and LVDS port cannot be used at same time Supports up to triple displays |
Audio | Realtek ALC269 HD Audio |
Storage Technology | 4 x SATA3 6Gb/s Connectors via Marvell 88SE9230 Supports RAID 0, 1, 10 1 x SATA3 6Gb/s Connectors via J4105 Supports SATADOM M.2: SATA 6Gb/s |
Connectivity | 2 x Realtek RTL8111HS GbE LAN |
Expansion Slots | 1 x PCI-E 2.0 x4 1 x M.2 (2280, SATA, M key) slot (On Motherboard Underside) 1 x M.2 (2230, E Key, CNVi only) slot |
Power | 12V DC-IN Alternative 2-Pin ATX Connector |

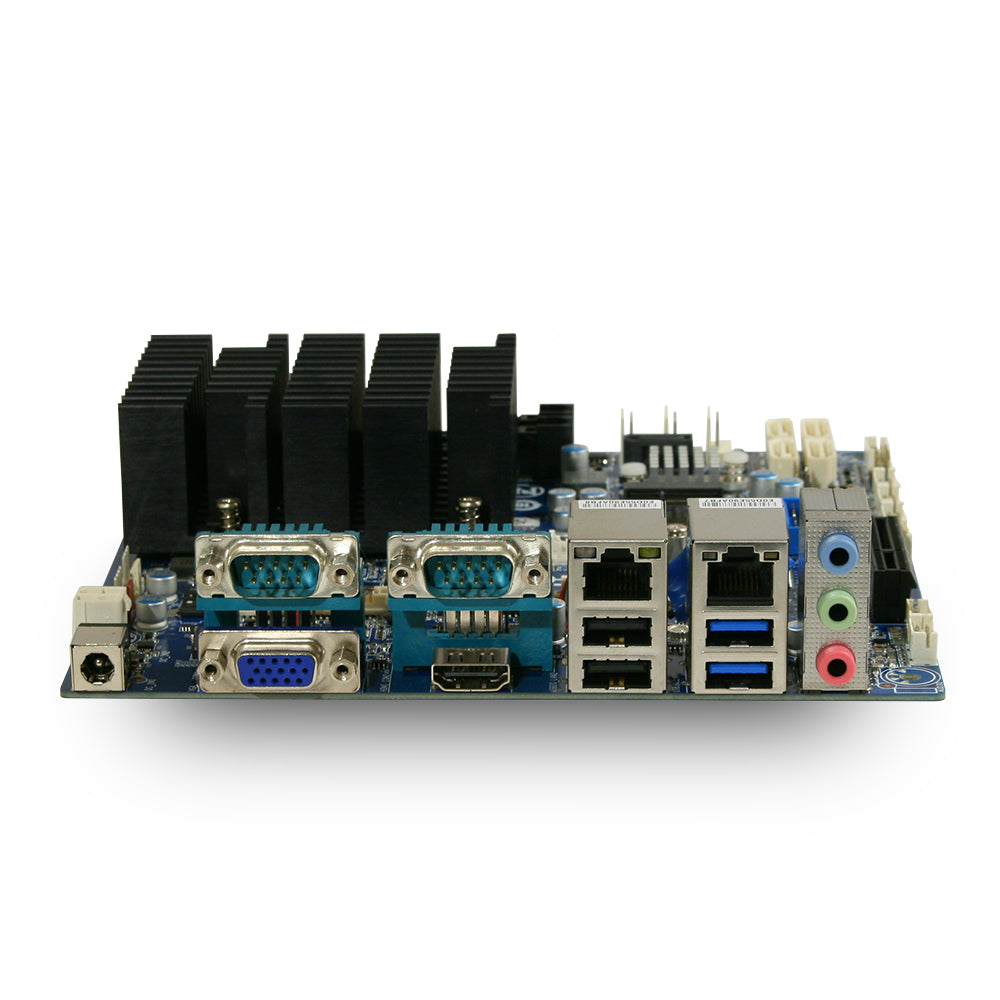

Rear I/O | 1 x 12V DC-IN 2 x COM (RS232/422/485, RI/5V/12V) Ports 1 x VGA 1 x HDMI 2 x RJ45 GbE LAN 2 x USB 2.0 2 x USB 3.0 3 x Audio I/O |
Onboard I/O Headers | 1 x CPU Fan header 1 x System Fan header 1 x Front Panel Audio header 1 x USB 2.0/1.1 headers 2 x USB 3.0 headers 4 x COM (RS232) header 1 x Case open header 1 x LVDS connector (eDP option) 2 x LAN LED headers 1 x RAID LED header 1 x AT mode jumper 1 x Buzzer header |
Form Factor | Mini-ITX 170 x 170mm 6.7" x 6.7" (in inches) |
Environmental | Operating Temperature: 0°C - 60°C Non-operating Temperature: -20°C - 70°C Operating Humidity: 0-90% (non-condensing) Non-operating Temperature: 0-95% (non-condensing) |
Warranty | 1-Year Manufacturer's Limited Warranty |
