Manufacturer	GigaIPC
Part Number	mITX-2748A
CPU	AMD Ryzen V2748 Processor 8 Cores / 16 Threads 2.9 - 4.25 GHz 35-54W TDP, 8MB L3 Cache Includes Heatsink and Fan Assembly
Chipset	SoC
Memory	2 x DDR4 SODIMM slots Maximum 32GB Capacity Dual Channel 3200 MHz
Video	AMD Radeon Graphics DisplayPort Max Resolution: 4096x2160@60Hz LVDS Max Resolution: 1080P (Switch from DP) 4 Independent Display Outputs
Audio	Realtek Audio Codec
Storage Technology	1 x SATA 6Gb/s Port
Connectivity	2 x Realtek RTL8118-CG GbE LAN
Expansion Slots	1 x PCI-E 3.0 x16 slot (x8 Interface) 1 x M.2 2230 Slot (E Key) 1 x Mini PCI-E with SIM Slot
Power	1 x 12-24V DC-IN Alternate 4-Pin ATX Power Connector

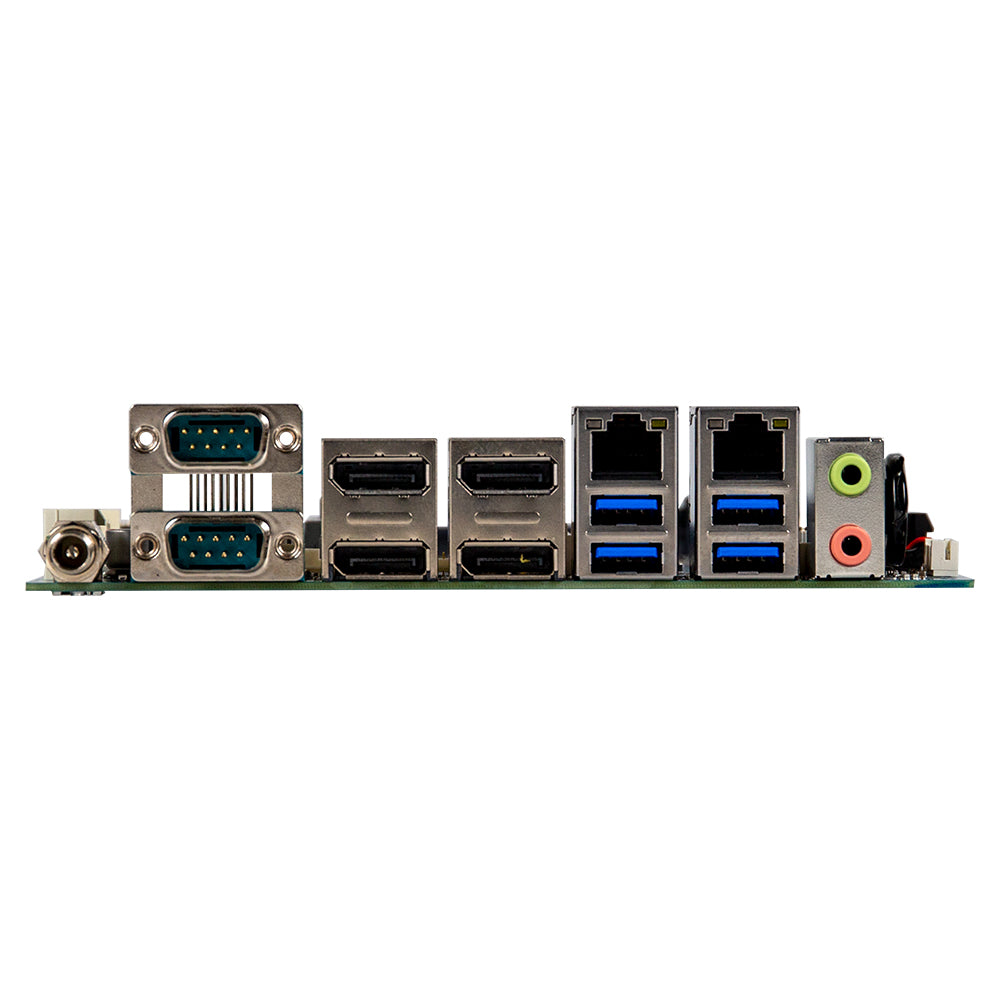

Rear I/O	1 x 12-24V DC-IN 2 x COM (RS232/422/485 & RI/5V/12V) 4 x DisplayPorts 2 x RJ45 GbE LAN 4 x USB 3.2 (Gen1) 2 x Audio I/O
Onboard I/O Headers	1 x CPU fan header 1 x System fan header 1 x Front panel header 1 x Front panel audio header 1 x 2W Speaker out header 6 x USB 2.0 headers 2 x COM headers (RS-232/422/485) 1 x GPIO (8 bits) & SMBus header 1 x Backlight Control header 1 x LVDS/ DP Jumper 1 x AT/ATX mode select jumper 1 x ATX Control header 1 x Clear CMOS jumper
Form Factor	Mini ITX 6.7" x 6.7" (in inches) 170 x 170mm
Environmental	Operating Temperature: 0°C to 60°C (32°F to 140°F) Non-Operating Temperature: -40°C to 85°C (-40°F to 185°F) Operating Humidity: 0 to 90% (Non-Condensing) Non-Operating Humidity: 0 to 95% (Non-Condensing)
Warranty	1-Year Manufacturer's Limited Warranty
