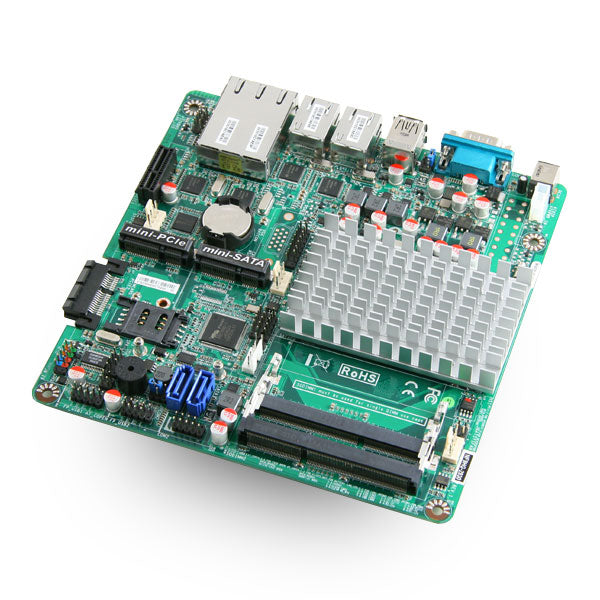

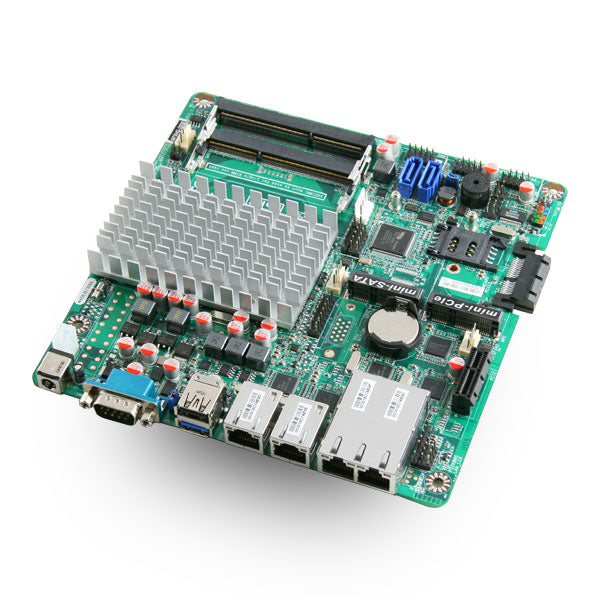

Jetway NF9HG-2930 Intel Celeron N2930 Quad Core Fanless Mini-ITX Motherboard with 4 X Intel Gigabyte LAN
Model Number	NF9HG-2930
Part Number	JNF9HG-2930
CPU	Intel Celeron N2930 Quad Core Processor 1.83 - 2.16 GHz 4 core / 4 Threads 7.5W TDP (4.5W SDP), 22nm, 2MB Cache, 64-bit
Chipset	SoC
Memory	2 x 204-pin DDR3L SODIMM Maximum 8GB capacity 1333MHz Minimum Low Voltage 1.35V required
Video	Intel HD Graphics 313 MHz - 854 MHz
Storage	2 x SATA2 3Gb/s 1 x mSATA slot Note: mSATA and SATA_1 shared
Connectivity	4 x Intel i211AT Gigabit LAN
Expansion Slots	2 x PCI-E x1 (2.0) 1 x Mini PCI-E (half length)
Power	On-board DC-DC Converter; +12V DC-IN barrel connector (~2.5/5.5mm) ATX12V 1 x 2 Power Connector (Molex 5566-2) Tip: Use only one DC-Power Source

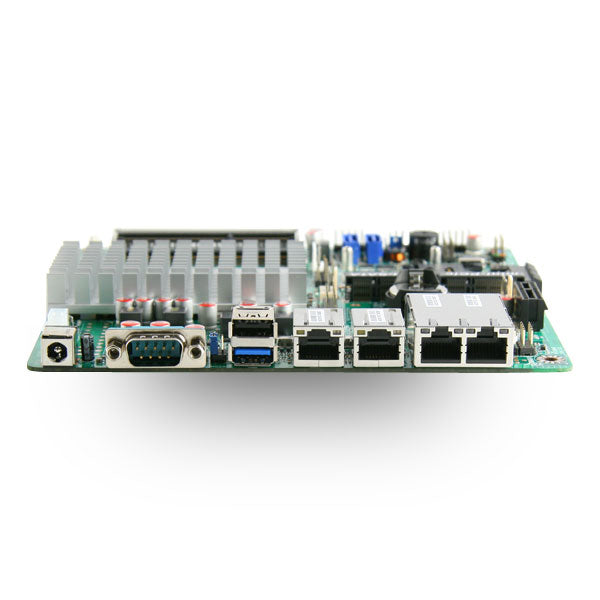

Rear Panel I/O	1 x 12V DC-IN 1 x COM Port 1 x USB 2.0 1 x USB 3.0 4 x RJ45 LAN
Onboard I/O Headers	1 x VGA Header 1 x 5-pin SMBUS(I2C) Header 1 x 8-bit GPIO Header 1 x 7-pin PS2 Keyboard Mouse Header 1 x SIM Card Holder 1 x Serial Port Header 2 x USB 2.0 Headers (Up to 4 additional Ports) 3 x 4-pin Fan Headers 2 x PCI Express x1 Slot
Special Features	Support AHCI, ACPI S3, CPU Smart FAN, Watchdog Timer 10-255 min/sec
Form Factor	Mini-ITX 170mm x 170mm (6.7" x 6.7")
BIOS	AMI 64MB SMT Flash ROM
Warranty	2-Year Manufacturer's Warranty
Compliance	CE, FCC, RoHS, ErP/EuP
Environmental	Operating Temperature : 0 - 60 C Storage Temperature : -20 - 85 C
Included in Box	Jetway NF9HG-2930 thin Mini-ITX Motherboard SATA Cables SATA Y Power Cables RS232 COM Header Port Adapter VGA Header Port Adapter Thin I/O Shield I/O Shield Mini PCI-E Full Length Adapter Brackets Driver & Application Disc Documentation: User Manual
