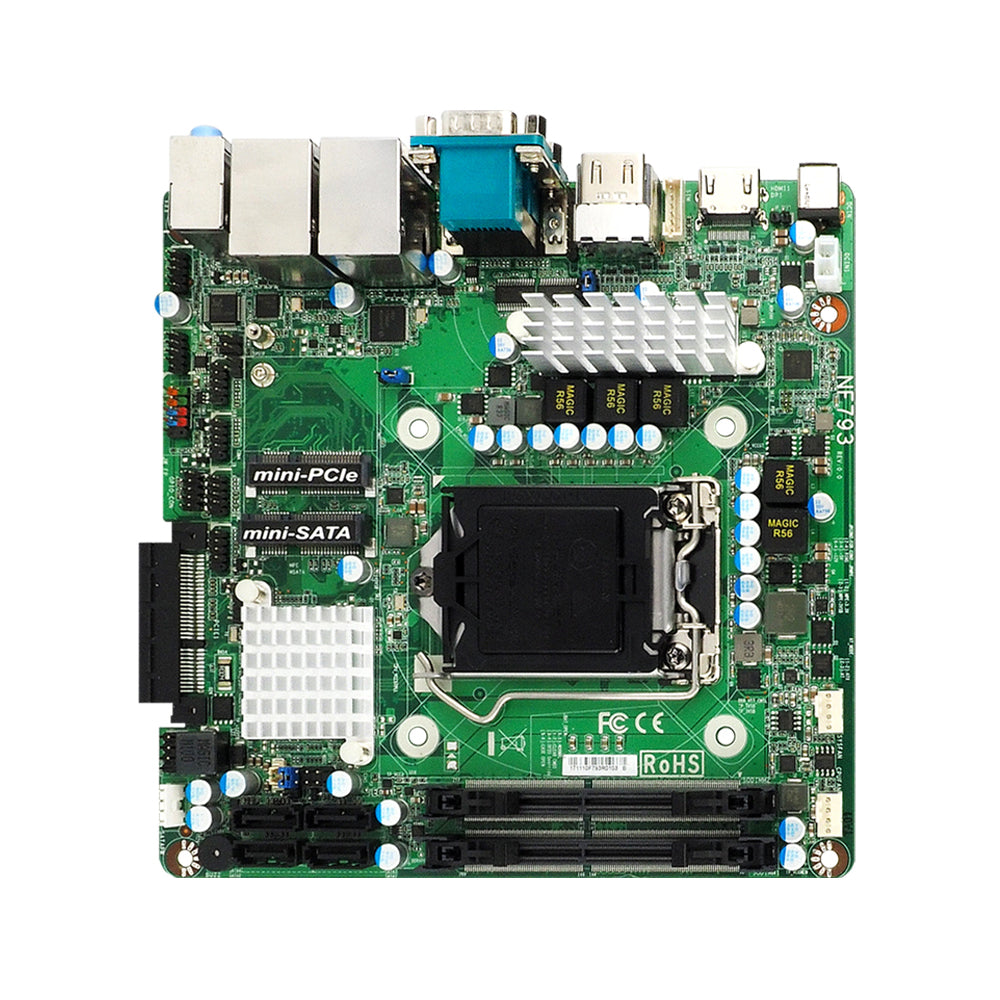

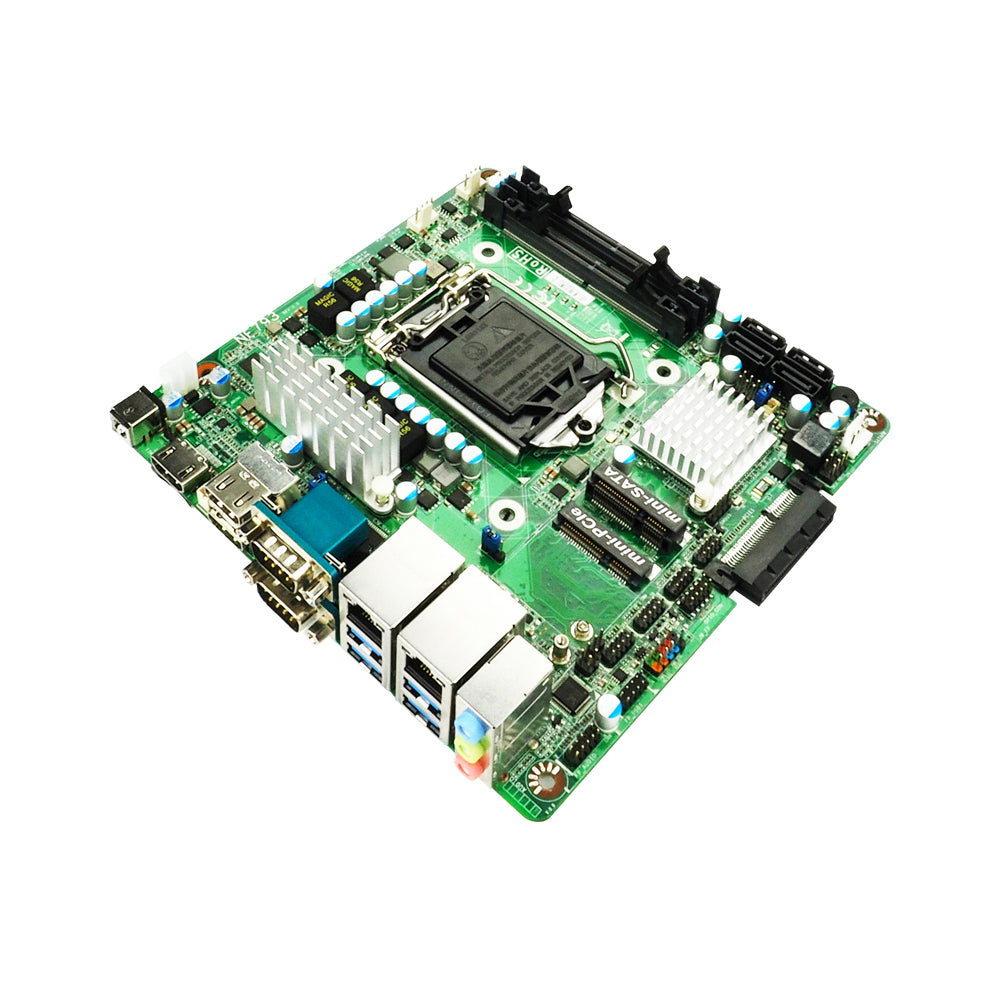

Manufacturer | Jetway |
Part Number | JNF793-Q170 |
CPU | Supports Intel Skylake/Kabylake Processors Supports 6th/7th Gen Intel Core i7/i5/i3/Pentium Processor Socket LGA 1151 |
Chipset | Intel Q170 |
Memory | 2 x DDR4-2133 SODIMM Slots Maximum 32GB Capacity Non-ECC, Un-Buffered Memory Dual Channel |
Video | Intel HD Graphics (CPU Dependant) HDMI Max Resolution: 4096x2304 @ 24Hz |
Audio | Realtek ALC662VD HD Audio |
Storage Technology | 4 x SATA3 6Gb/s Supports RAID 0,1,5,10 1 x mSATA slot |
Connectivity | 1 x Intel I219LM PHY GbE LAN (iAMT 11.0) 1 x Intel I211-AT GbE LAN |
Expansion | 1 x PCI-E x4 Side Slot 1 x mSATA slot (full-size) 1 x Mini PCI-E slot (half-size) 1 x SIM Card Slot |

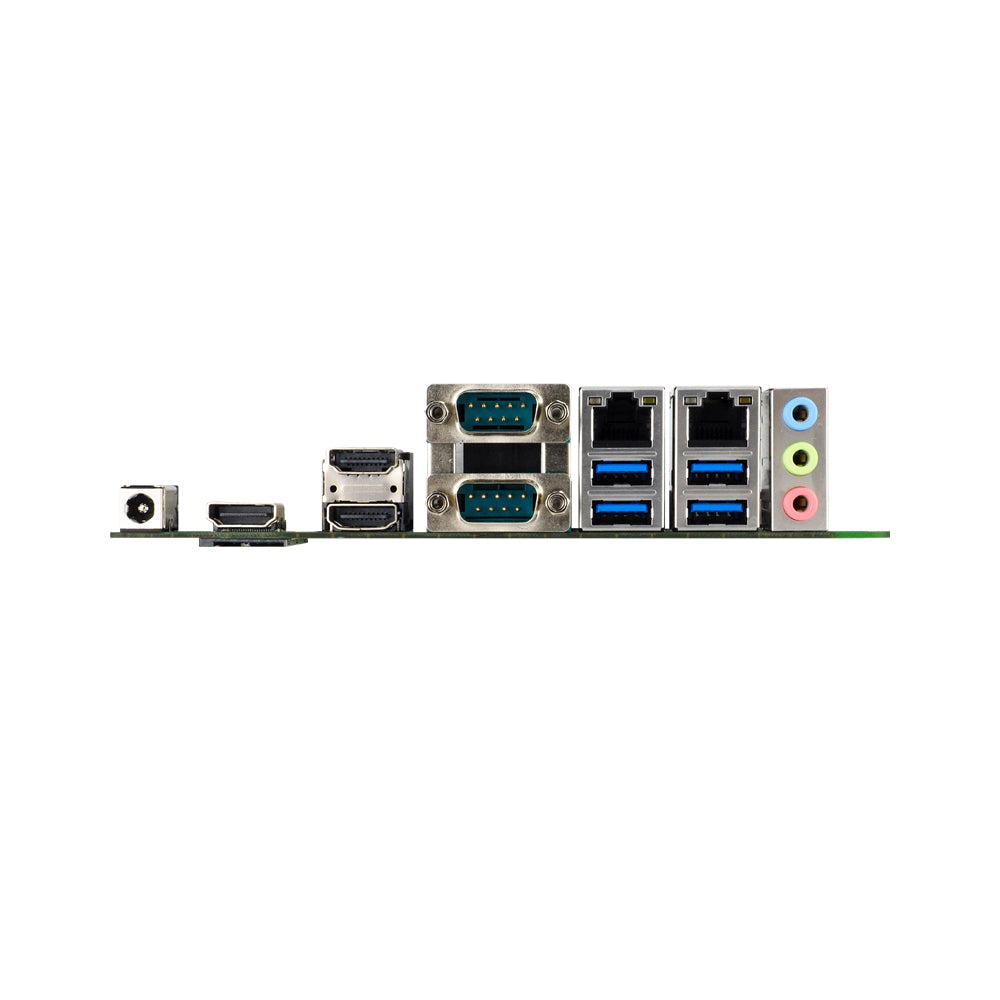

Rear I/O | 1 x 9-24V DC-IN 3 x HDMI 2 x COM Ports (RS232/422/485) 2 x RJ45 GbE LAN 4 x USB 3.0 3 x Audio I/O |
Onboard I/O Headers | 1 x 2mm Pitch USB 2.0 Header (Up to 2 Ports) 4 x 2mm pitch Serial COM Headers (RS232) 1 x Chassis Intrusion Jumper 1 x AT/ATX Mode Jumper 1 x 8-bit GPIO Header 1 x 4-pin SMBUS/I2C Header 1 x 7-pin PS2 Keyboard Mouse Header 2 x 4-pin Fan Headers |
Power | 1 x 9V - 24V DC-IN (ID 2.5mm / OD 5.5mm) Alternate: 2-pin Internal Power Connector (Molex 5566-2) Caution: No isolation circuitry, do not use both connectors |
Environmental | Operating Temperature : 0°C ~ 60°C Storage Temperature : -20°C ~ 85°C CE, FCC, LVD, RoHS, REACH |
Form Factor | Mini-ITX 170mm x 170mm 6.7" x 6.7" (in inches) |
Warranty | 2-Year Manufacturer's Limited Warranty |
Included in Box | JNF793-Q170 Mini-ITX Motherboard SATA Cable Power Cable I/O Shield Instruction Manual and Drivers & Application Disc |
