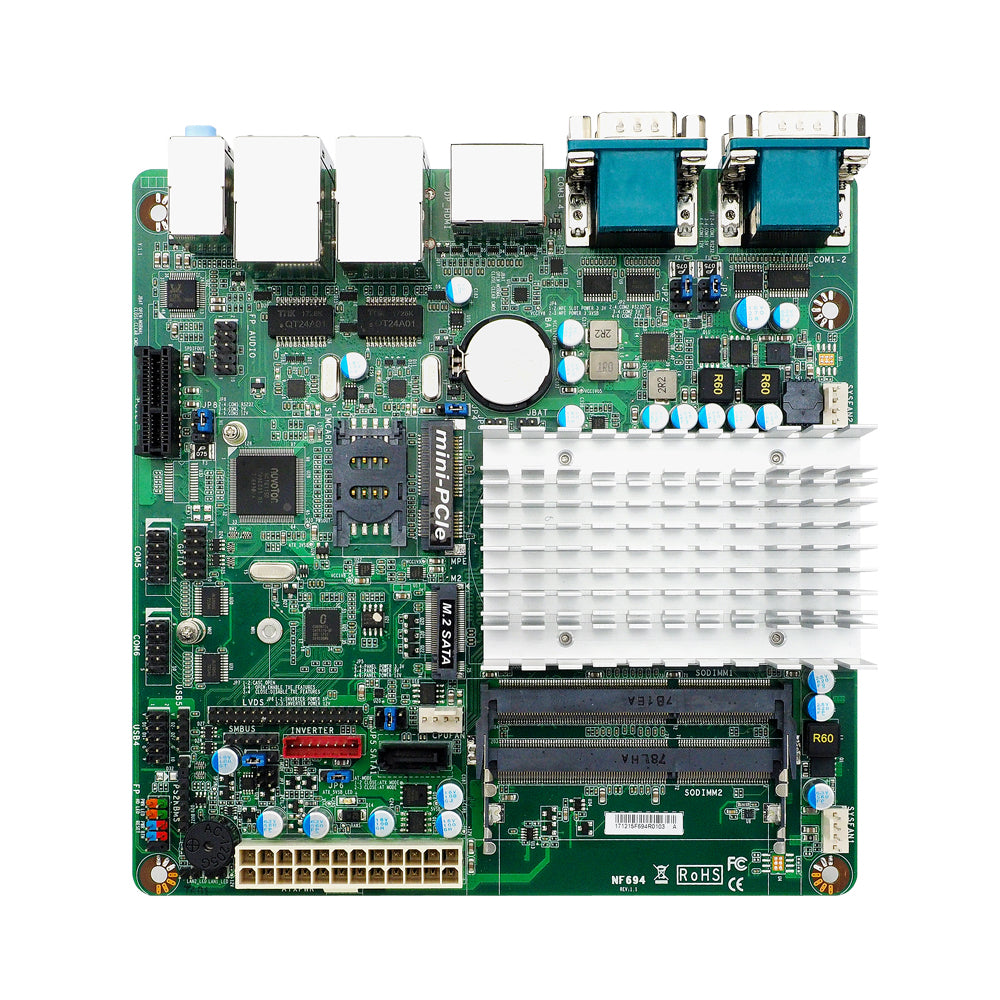

Manufacturer | Jetway |
Part Number | JNF694-4200 |
CPU |
Intel Pentium N4200 Processor 4 Cores / 4 Threads 1.10 - 2.50 GHz 6W TDP, 2MB L2 Cache |
Chipset | SoC |
Memory |
2 x DDR3L-1866 SODIMM slots Supports up to 8GB 1.35V Low Voltage Required |
Video |
Intel HD Graphics 505 200 - 750 MHz HDMI Max Resolution: 3840x2160@30Hz DisplayPort Max Resolution: 4096x2160@60Hz LVDS Max Resolution: 1920x1080@60Hz Supports up to 3 Displays |
Audio | Realtek ALC662 HD Audio |
Storage Technology |
1 x SATA3 6Gb/s Ports 1 x M.2 2242/2260 slot: SATA |
Connectivity |
2 x Realtek RTL8111H GbE LAN |
Expansion Slots |
1 x PCI-E 2.0 x1 slot 1 x Mini PCI-E slot (Full Sized) 1 x SIM Card Socket |
Power | 24-pin ATX Power Connector |
Rear I/O |
3 x Serial COM Port (RS232) 1 x Serial COM Port (RS232/422/485) 1 x DisplayPort 1 x HDMI 2 x RJ45 GbE LAN 4 x USB 3.0 3 x Audio I/O |
Onboard I/O Headers |
2 x Serial Port headers (RS232) 2 x USB 2.0 headers (Up to 3 Ports) 1 x 24-bit Dual Channel LVDS Connector/Inverter 1 x AT/ATX Mode Jumper 1 x 8-bit GPIO header 1 x 9-pin Front Audio header 1 x 5-pin SMBUS/I2C header 1 x 7-pin PS/2 Mouse/Keyboard header 3 x 4-pin Fan header |
Form Factor |
Mini-ITX 170 x 170mm 6.7" x 6.7" (in inches) |
Environmental |
Operating Temperature: 0°C to 60°C (32°F to 140°F) Non-Operating Temperature: -20°C to 85°C (-4°F to 185°F) |
Warranty | 1-Year Manufacturer's Limited Warranty |
