| Manufacturer | Jetway |

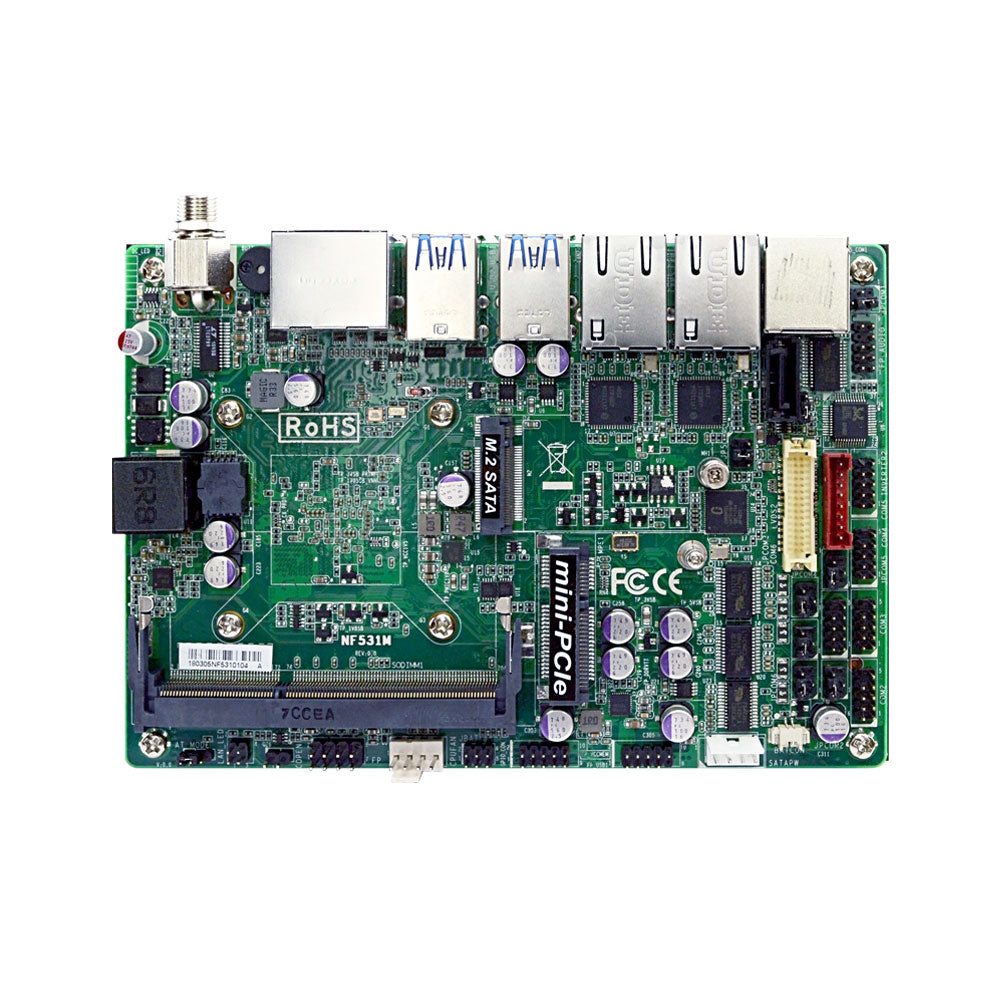

| Product ID | JNF531M-3160 |
| CPU | Intel Celeron N3160 Processor 4 Cores / 4 Threads 1.60 - 2.24GHz 6W TDP, 2MB L2 Cache AES-NI Support |
| Chipset | SoC |
| Memory | 1 x DDR3L-1600MHz SODIMM Slots Supports 8GB Maximum Unbuffered, Non-ECC Only Low Voltage 1.35V Only |
| Video | Intel HD Graphics 320 - 640 MHz 8GB Graphics Video Max Memory Supports up to 3 Displays HDMI Max Resolution: 3840x2160@30Hz, 2560x1600@60Hz DisplayPort Max Resolution: 3840x2160@30Hz, 2560x1600@60Hz |
| Audio | Realtek ALC662VD HD Audio 6 Channel |
| Storage Technology | 1 x SATA3 6Gb/s Connector 1 x M.2 2242 slot (SATA only) |
| Connectivity | 2 x Intel I211-AT GbE LAN Ports |
| Expansion Slots | 1 x Mini PCI-E slot (Half Size) |
| Rear Panel I/O | 1 x RJ45 Serial Port 2 x RJ45 GbE LAN 4 x USB 3.0 1 x DisplayPort 1 x HDMI 1 x 9-36V DC-IN |
| Onboard I/O Heaers | 4 x RS232 Serial Headers 1 x RS232/422/485 Serial Header 1 x 24-bits Dual Channel LVDS Connecter/Inverter 1 x USB 2.0 header (Supports up to 2 ports) 1 x Chassis Intrusion Jumper 1 x AT/ATX Mode Jumper 1 x 10-Pin GPIO Header 2 x 2-Pin LAN LED Header 1 x 9-Pin Audio Header 1 x 4-Pin Fan Header |
| Power | 9 - 36V DC-IN 2.5mm Diameter |
| Form Factor | 3.5" SBC 148 x 102mm 5.8" x 4.0" (in inches, approximate) |
| Environmental | Operating Temperature: 10°C to 60°C (50°F to 140°F) Non-operating Temperature: -20°C to 85°C (-4°F to 185°F) |
| Compliance | CE, FCC, RoHS, REACH |
| Warranty | 1-Year Manufacturer's Limited Warranty |
PRODUCT ID: JNF531M-3160
