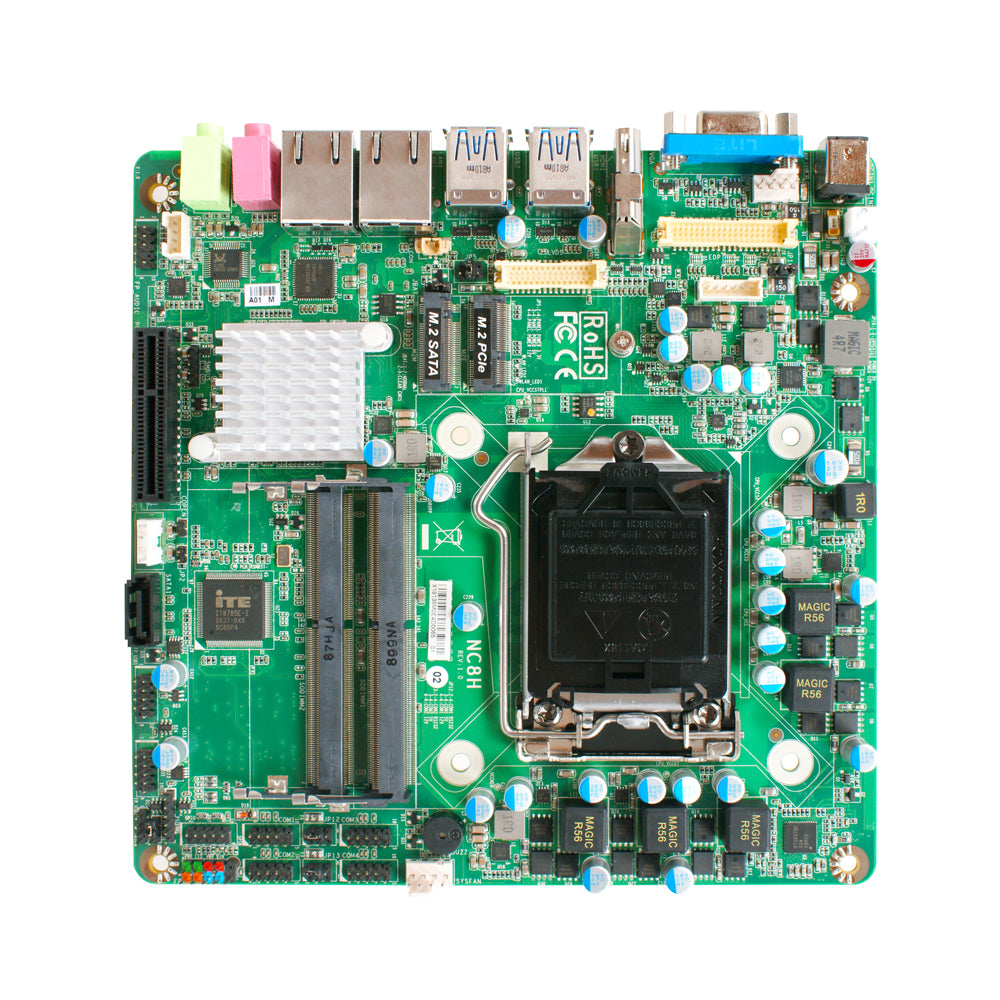

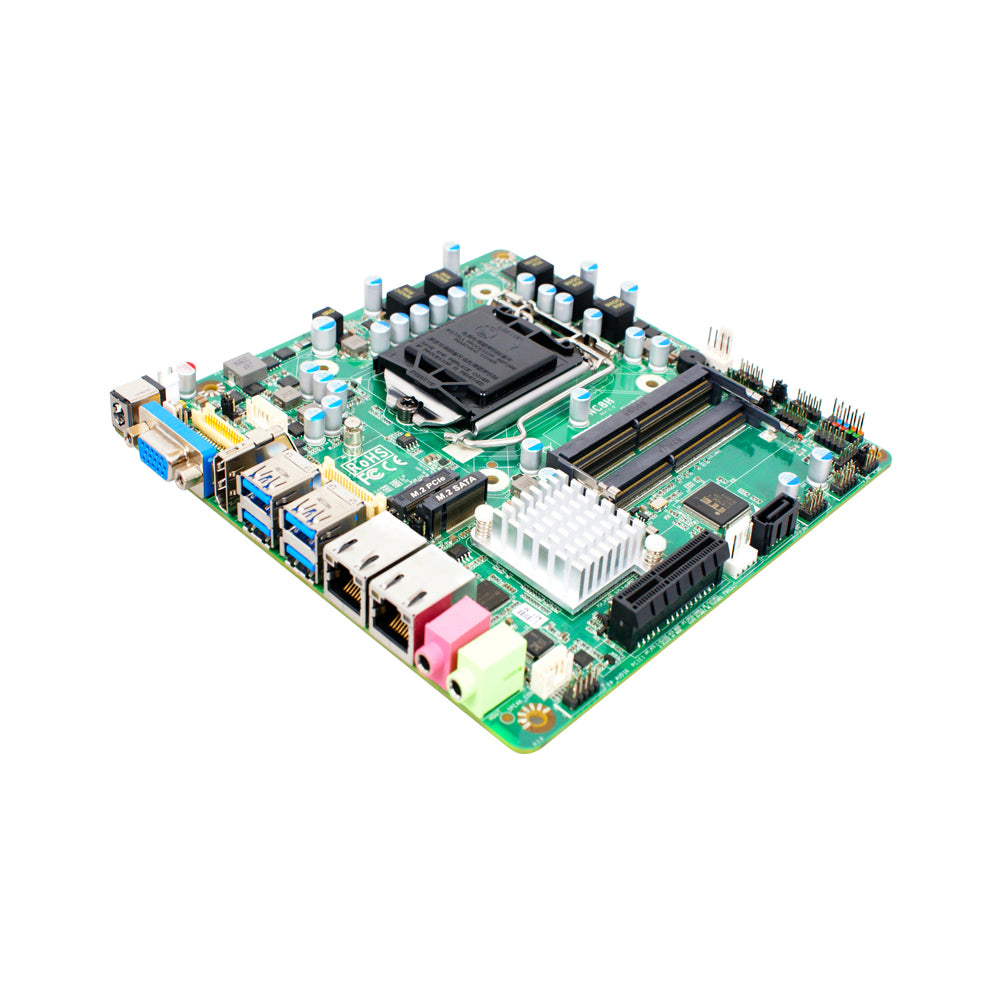

Manufacturer | Jetway |
Part Number | JNC8H-IH310 |
CPU |
Supports Intel 8th Gen Coffee Lake-S Processors LGA 1151 Maximum 65W TDP |
Chipset | Intel H310 |
Memory |
2 x DDR4 SODIMM Slots Maximum 32GB Capacity 2133 MHz |
Video |
Intel HD Graphics (CPU Dependent) VGA Max Resolution: 1920x1200@60Hz LVDS Max Resolution: 1920x1080@60Hz (Co-lay eDP) eDP Max Resolution: 4096x2304@24Hz (Co-ley LVDS) HDMI Max Resolution: 4096x2304@24Hz Supports Dual Display |
Audio | Realtek ALC662VD HD Audio Codec |
Storage Technology |
1 x SATA3 6Gb/s Ports M.2 2242 slot: M-Key, SATA |
Connectivity |
1 x Intel I219-LM GbE LAN 1 x intel i211AT GbE LAN |
Expansion Slots |
1 x PCI-E 3.0 x4 slot 1 x M.2 2230 slot (CNVi Only) |
Power | 19V DC-IN Barrel Connector |

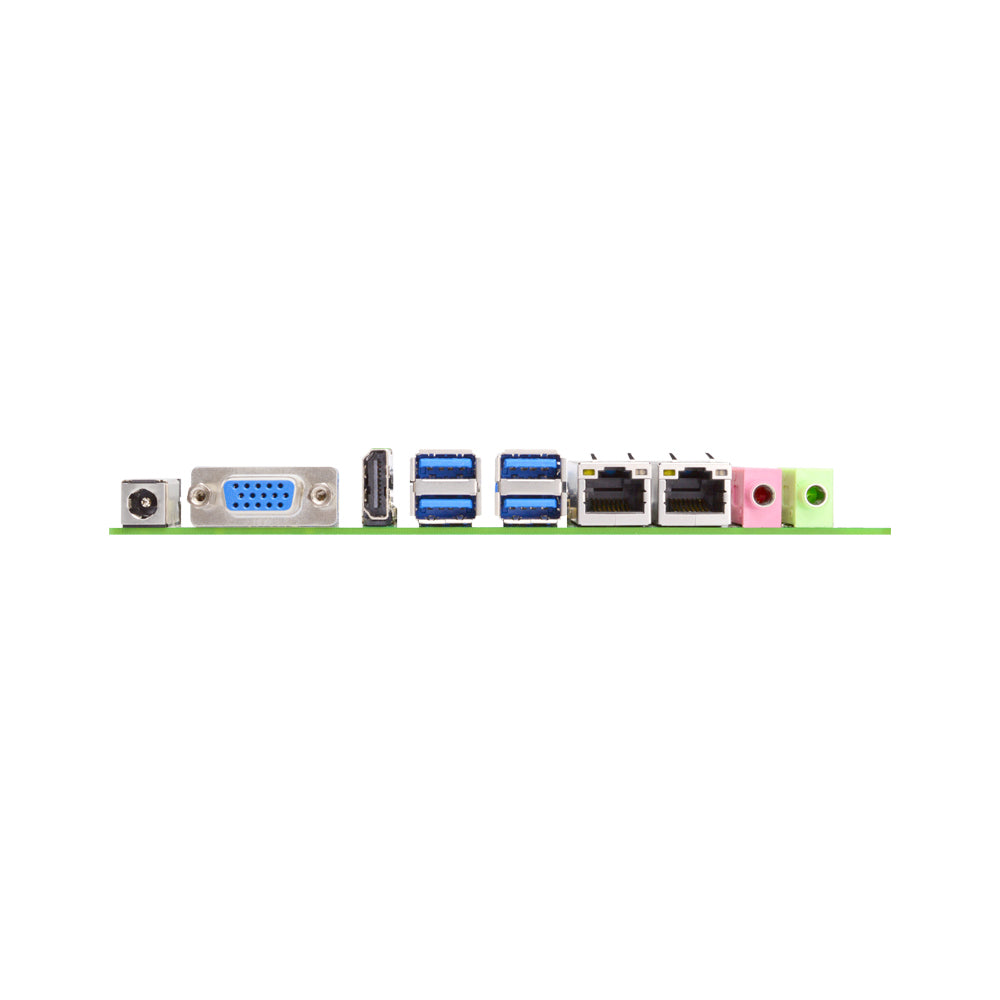

Rear I/O |
1 x 12-24V DC-IN 1 x VGA 1 x HDMI 4 x USB 3.0 2 x RJ45 GbE LAN 2 x Audio I/O |
Onboard I/O Headers |
2 x USB 2.0 headers (Supports up to 4 ports) 1 x USB 2.0 header (half side, supports 1 port) 2 x COM Port header (RS232, supports 5V/12V TTL) 2 x COM Port header (RS232) 1 x 8-Bit GPIO header 1 x Chassis Intrusion header 1 x Audio header 1 x SMBUS / I2C header 1 x LVDS/Inverter (co-lay eDP) 1 x eDP (co-lay LVDS) 1 x PS/2 header |
Form Factor |
Thin Mini-ITX 170 x 170mm 6.7" x 6.7" (in inches) |
Environmental |
Operating Temperature: 0°C to 60°C (32°F to 140°F) Non-Operating Temperature: -20°C to 85°C (-4°F to 185°F) |
Warranty | 2-Year Manufacturer's Limited Warranty |
