| Manufacturer | NVIDIA |
| Part Number | 945-82771-0000-000 |

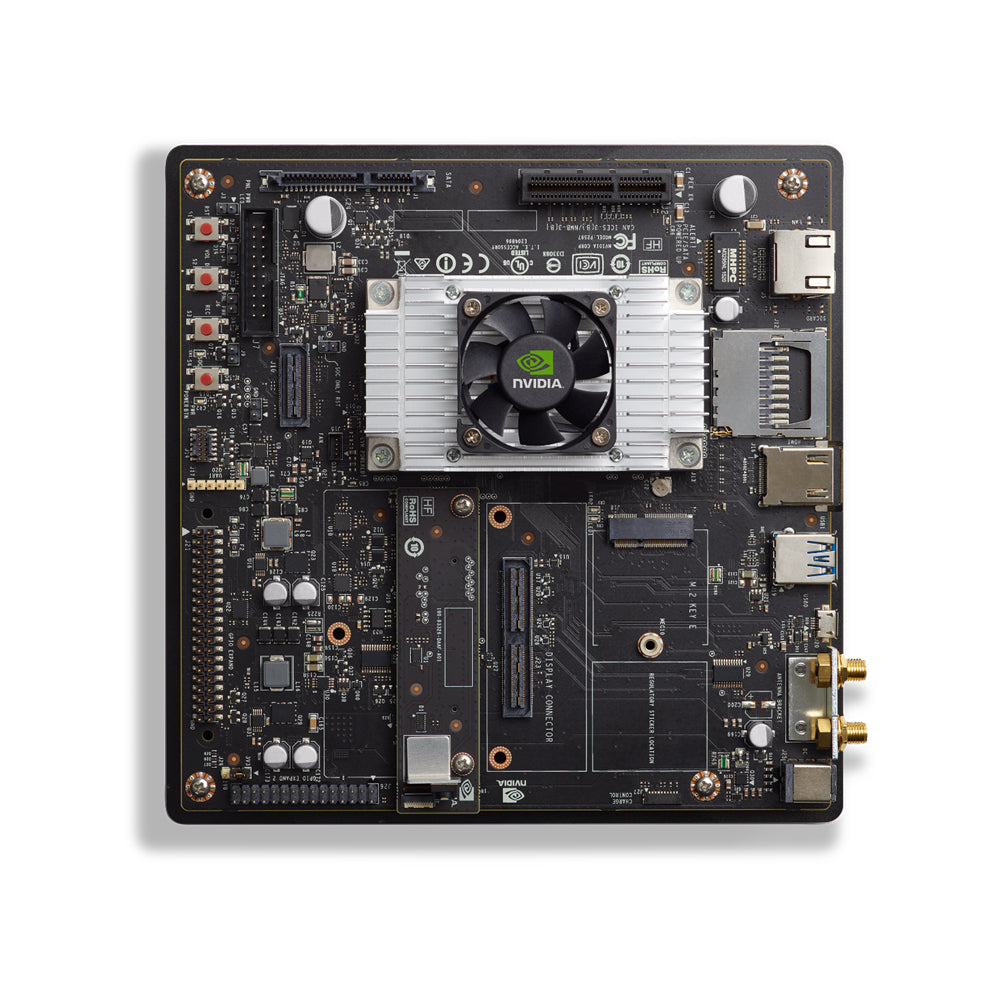

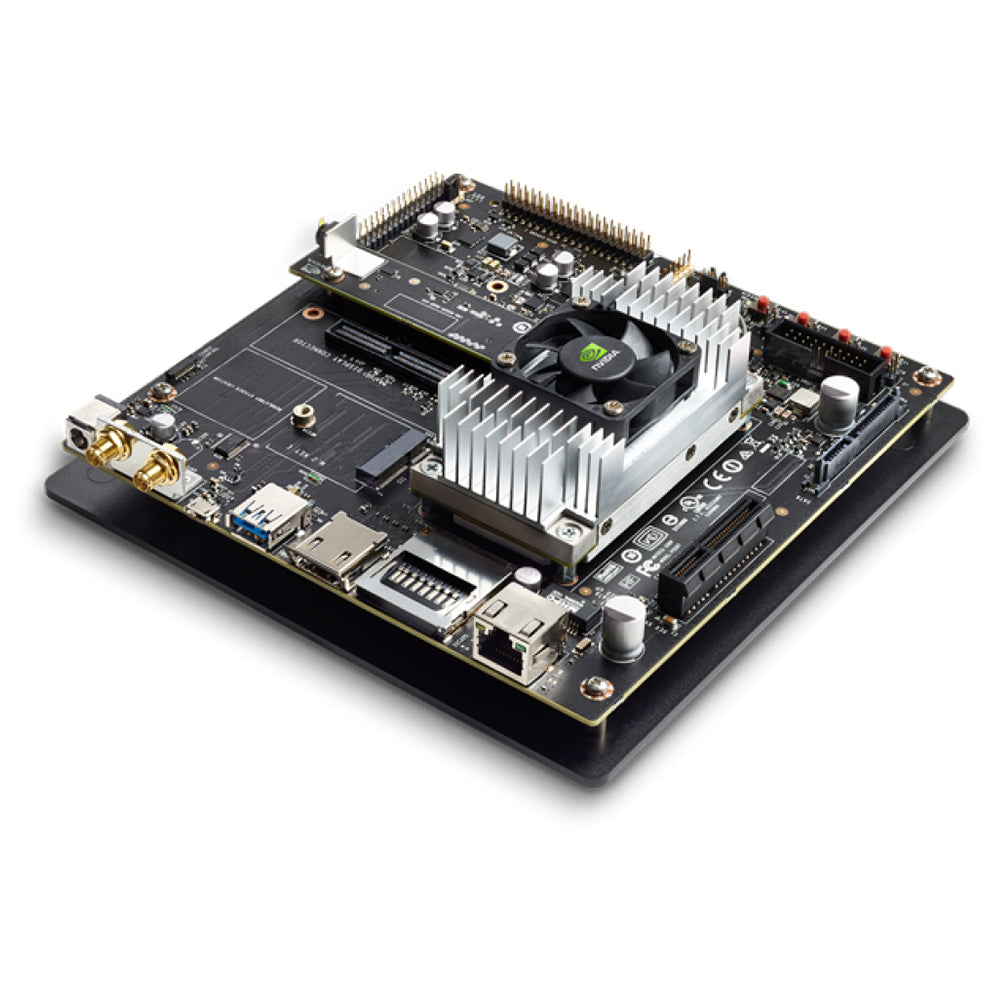

| Model Number | Jetson TX2 Developer Kit |
| CPU | ARM Cortex-A57 2.0 GHz Quad Core Processor NVIDIA Denver2 2.0 GHz Dual Core Processor |
| Memory | 8GB LPDDR4 Memory 1866 MHz 128-bit |
| Video | Hardware Encoder/Decoder 4K x 2K 60 Hz Encode (HEVC) 4K x 2K 60 Hz Decode (12-Bit Support) |
| Storage Technology | 32GB eMMC 5.1 Flash Storage SD Card Slot SATA Connector |
| Connectivity | 1 x Gigabit Ethernet 802.11ac WLAN Bluetooth |
| Expansion Slots | 1 x PCI-E x4 1 x M.2 (Key E) 1 x 30-pin GPIO Header 1 x 120-pin Display Expansion Header 1 x 40-pin Expansion Header |
| Power | 5.5V - 19.6V DC-IN 19V AC Adapter (External) |
| Rear I/O | 1 x 5.5V - 19.6V DC-IN 2 x Antenna Connectors 1 x Micro USB 1 x USB 3.0 Type A 1 x HDMI 1 x SD Card Slot 1 x RJ45 GbE LAN |
| Onboard I/O Headers | 1 x Debug Connector 1 x JTAG Header 1 x Power LED Header 1 x Reset Header 1 x Reset Switch 1 x Volume Down Switch 1 x Power Switch Header 1 x Recovery Switch 1 x SOC Enable LED 1 x Recovery Header 1 x Force Off Header 1 x Expansion Header (2x20, 2.54mm pitch) 1 x Serial Port Header 1 x GPIO Expansion Header 1 x Fan Header |
| Special Features | 5 MP Fixed Focus MIPI CSI Camera Dual CAN Bus Controller |
| Environmental | Operating Temperature: 0°C - 50°C |
| Warranty | 1-Year Manufacturer's Limited Warranty |
PRODUCT ID: JETSON-TX2
