Product ID | JBC142F791W-3855B |
CPU | Intel Celeron 3855U 1.60GHz 2C/2T; 2MB Cache; 15W TDP |
Chipset | SoC |
Memory | 2 x DDR4 SODIMM Slot Maximum 32GB Capacity Non-ECC, Un-Buffered Memory 2133MHz Minimum |
Video | Intel HD Graphics 510 Supports Dual Display 4K @ 24Hz (via HDMI) 1920 x 1200 @ 60Hz (via VGA) |
Audio | Line OUT, MIC IN |
Storage Technology | 1 x SATA 6.0Gb/s 1 x mSATA |
Connectivity | 2 x Realtek RTL8111H Gigabit Ethernet 802.11n + Bluetooth 4.0 |
Expansion | 1 x Mini PCI-E (full-height) 4 x Serial Ports |

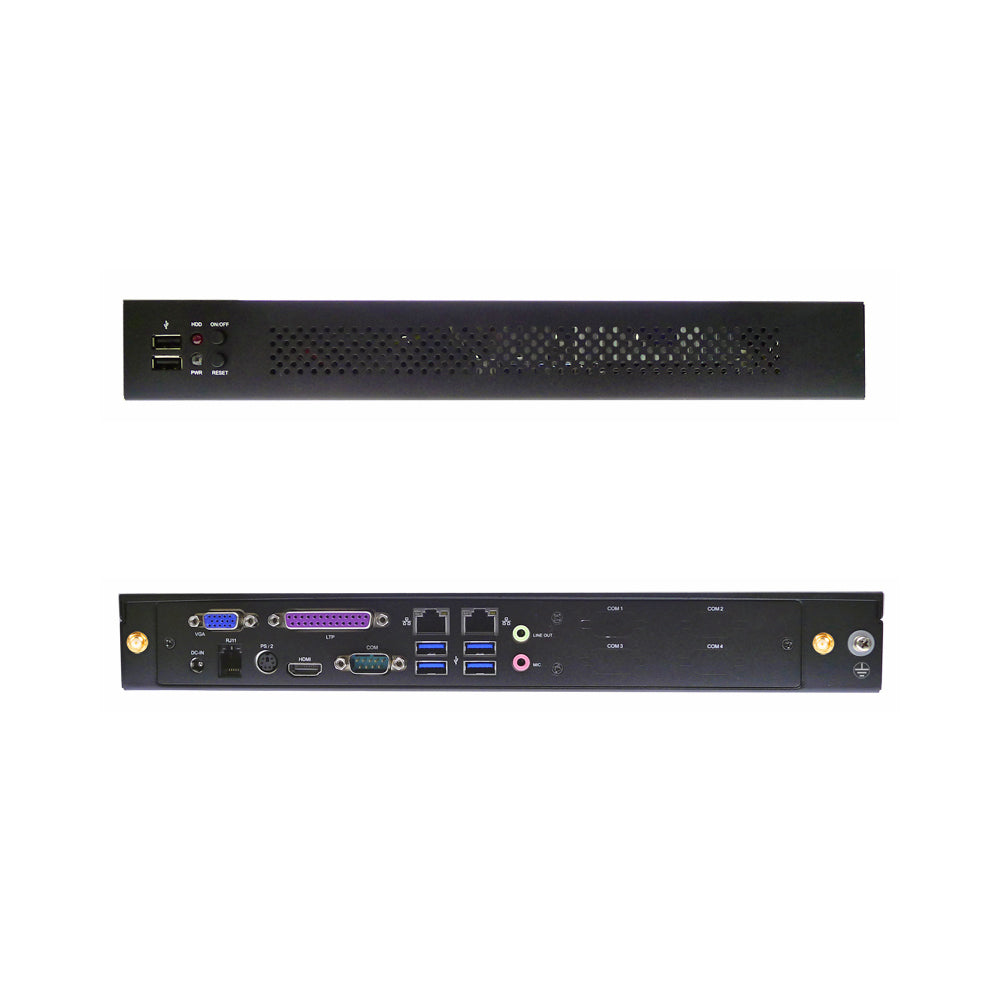

Rear I/O | 1 x VGA 1 x 12V DC-IN Jack 1 x RJ11 (+12/+24V) 1 x Parallel 1 x PS/2 1 x HDMI (1.4) 1 x Serial 2 x RJ45 LAN 4 x USB 3.0 2 x Audio I/O 2 x WIFI Connectors |
Front Panel I/O | 1 x Power Button 1 x Reset Button 2 x USB 2.0 HDD/PWR Status LEDs |
Drive Support | 1 x 2.5" 1 x mSATA |
Power Supply | 60W 12V AC-DC Adapter (external) |

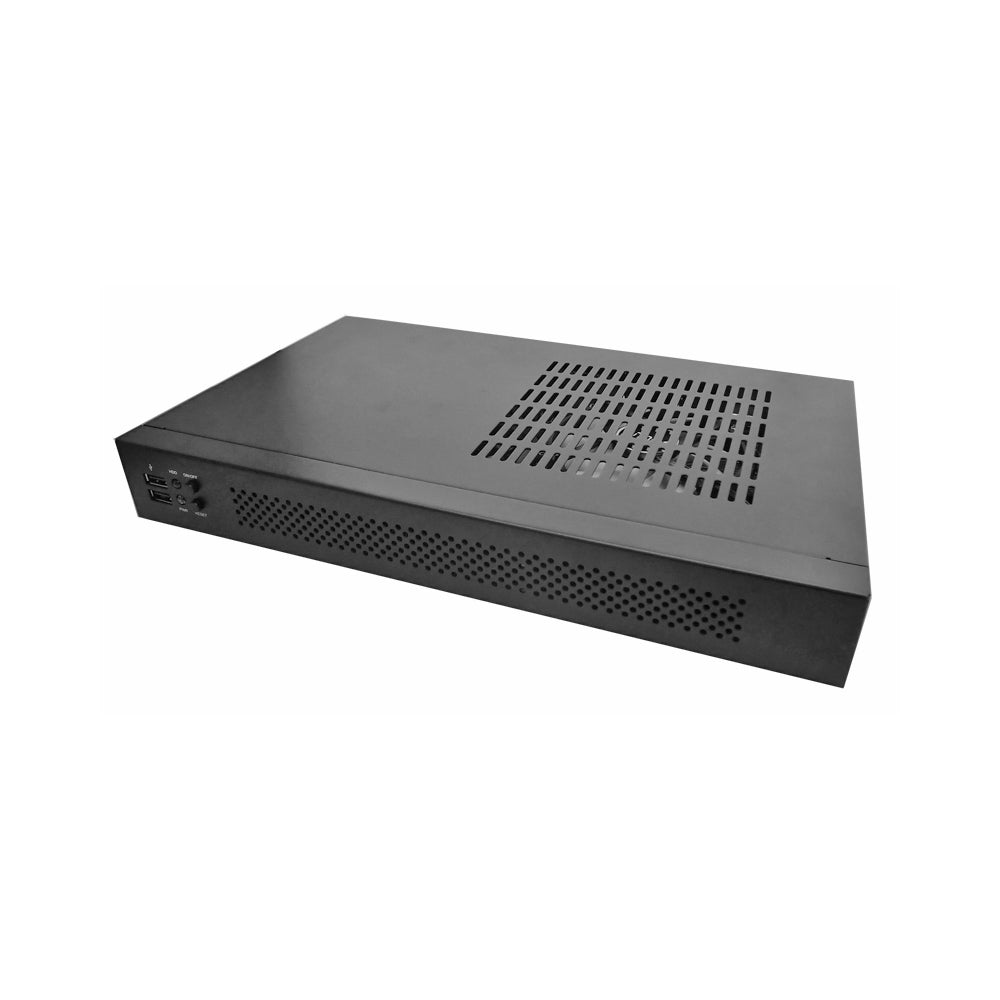

Case Dimensions | 330 x 192 x 44mm 12.99" x 7.56" x 1.73" (in inches) |
Warranty | 1-year warranty on parts and labor |
