Manufacturer	GigaIPC
Part Number	iTXL-3955A
CPU	Intel Celeron 3955U Processor 2.00 GHz 2 Cores / 2 Threads 15W TDP, 2 MB Cache
Chipset	SoC
Memory	2 x DDR4-2133MHz SODIMM Slots Maximum 32GB Capacity Dual Channel
Video	Intel HD Graphics 510 300 - 900 MHz HDMI Max Resolution: 4096x2160@24Hz DisplayPort Max Resolution: 4096x2160@60Hz eDP Max Resolution: 4096x2160@60Hz LVDS Max Resolution: 1920x1080@60Hz
Audio	Realtek ALC269 HD Audio
Storage Technology	2 x SATA3 Ports Note: Black connector supports SATADOM 1 x M.2 SATA slot (2242/2280, M Key)
Connectivity	1 x Intel i219LM GbE LAN 1 x Intel i211AT GbE LAN
Expansion Slots	1 x Mini PCI-E (Full Size)
Power	12V DC-IN Barrel Connector Alternate 2-Pin ATX Connector

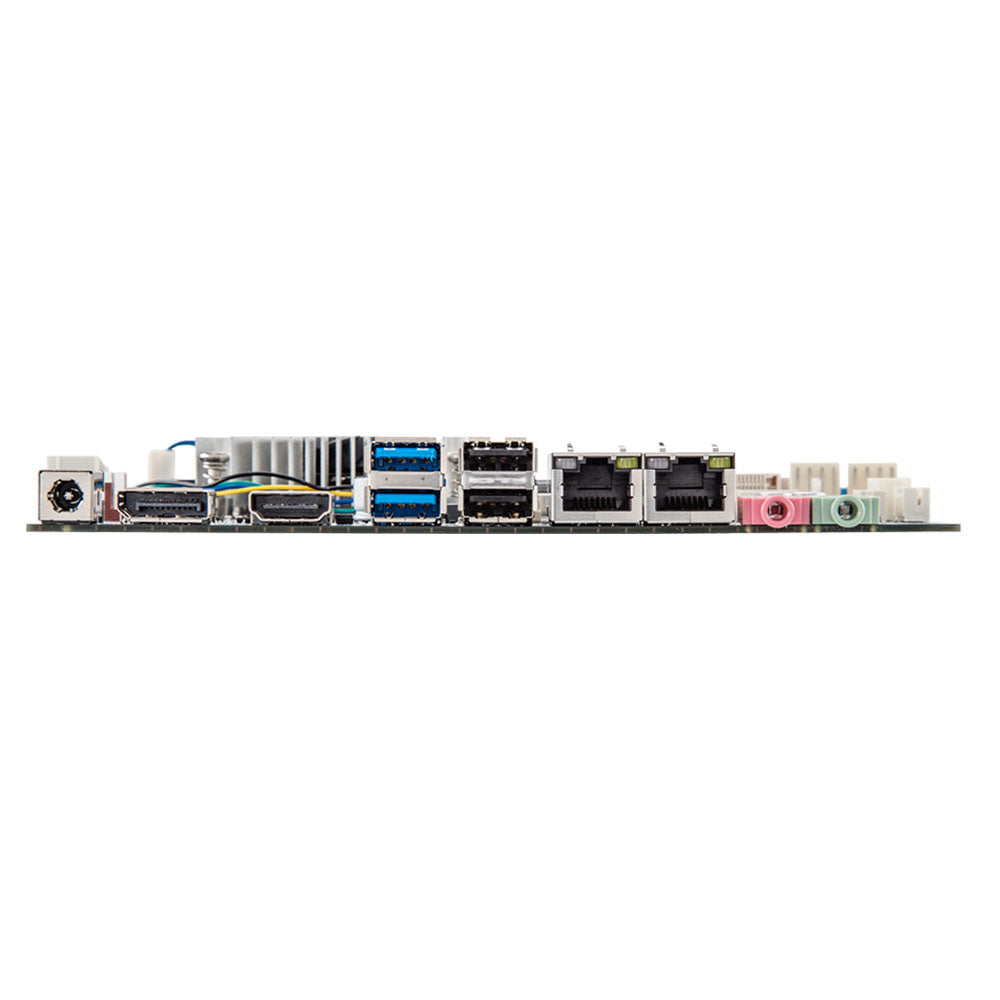

Rear I/O	1 x 12V DC-IN 1 x DisplayPort 1 x HDMI 2 x USB 3.0 2 x USB 2.0 2 x RJ45 GbE LAN 2 x Audio I/O
Onboard I/O Headers	1 x 2-pin ATX main power connector 2 x SATA 6Gb/s connectors 2 x USB 3.0 headers 1 x Front panel header 1 x Front panel audio header 1 x Speaker out header 1 x LVDS connector 1 x LCD_VCC Pin header 1 x Back Light Switch 1 x System fan header 1 x CPU fan header 2 x COM Headers (RS-232) 2 x COM headers (RS-232/422/485 and RI/5V/12V) 2 x SATA Power 1 x eDP 1 x GPIO (4 in/ 4 out) 1 x TPM header
Form Factor	Thin Mini-ITX 170 x 170mm 6.7" x 6.7" (in inches)
Environmental	Operating Temperature: 0°C to 60°C (32°F to 140°F) Non-Operating Temperature: -20°C to 70°C (-4°F to 158°F) Operating Humidty: 0% - 90% (non-condensing) Non-Operating Humidity: 0% - 95% (non-condensing)
Warranty	1-Year Manufacturer's Limited Warranty
