Manufacturer | GigaIPC |
Part Number | iTXL-3350A |
CPU | Intel Celeron N3350 Processor 1.10 - 2.40 GHz 2 Cores / 2 Threads 6W TDP, 2 MB Cache |
Chipset | SoC |
Memory | 2 x DDR3L-1866MHz SODIMM Slots Maximum 8GB Capacity Dual Channel |
Video | Intel HD Graphics 500 200 - 650 MHz HDMI Max Resolution:3840x2160@30Hz DisplayPort Max Resolution: 4096x2160@60Hz eDP Max Resolution: 3840x2160@60Hz LVDS Max Resolution: 1920x1080@60Hz |
Audio | Realtek ALC269 HD Audio |
Storage Technology | 2 x SATA3 Ports Note: one shared with mSATA 1 x Mini PCI-E with mSATA Support |
Connectivity | 2 x Realtek RTL8111HS GbE LAN |
Expansion Slots | 1 x Mini PCI-E (Half Size) |
Power | 12V DC-IN Barrel Connector Alternate 4-Pin ATX Connector |

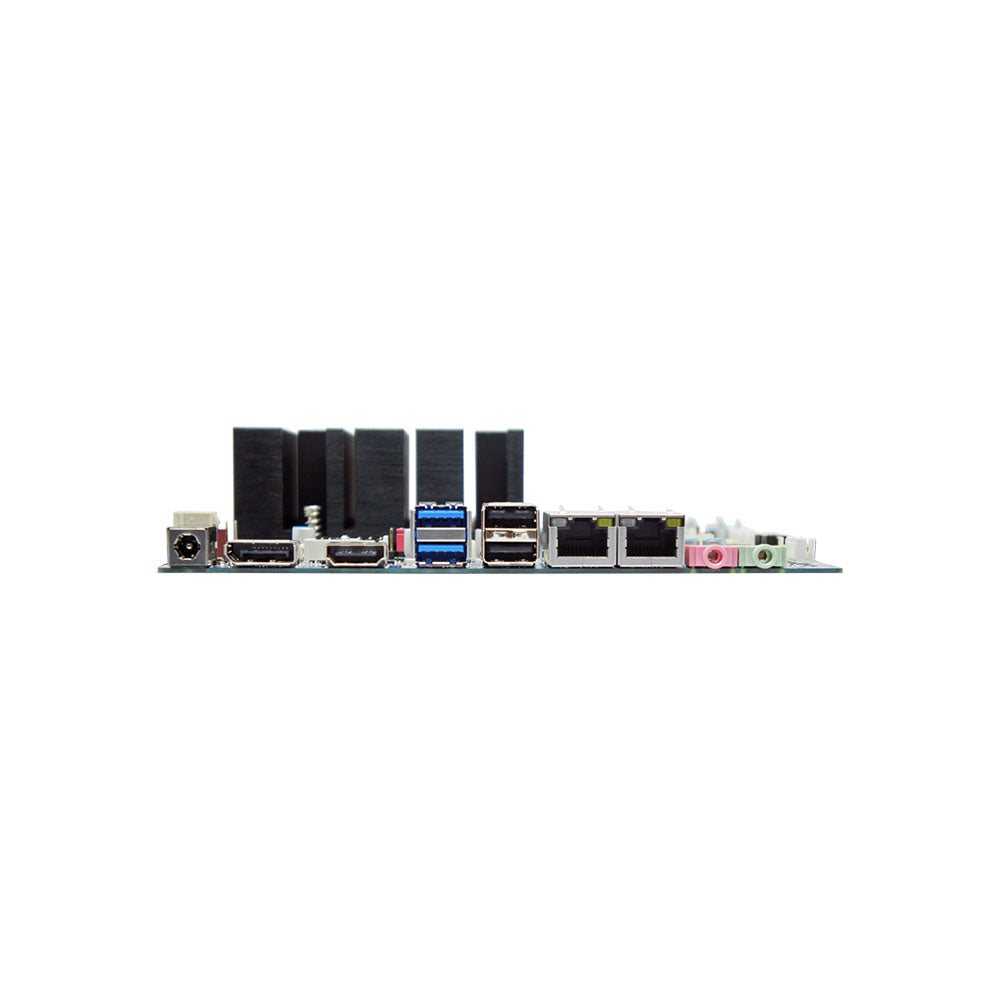

Rear I/O | 1 x 12V DC-IN 1 x DisplayPort 1 x HDMI 2 x USB 3.0 2 x USB 2.0 2 x RJ45 GbE LAN 2 x Audio I/O |
Onboard I/O Headers | 1 x USB 2.0 header 2 x USB 3.0 headers 1 x Front Panel header 1 x Front Panel Audio header ,br> 1 x Speaker Out header 1 x LVDS connector 1 x Back Light Switch 1 x System Fan header 1 x CPU Fan header 4 x COM headers (RS232) 2 x COM headers (RS232/422/485 and RI/5V/12V) 2 x SATA Power 1 x eDP 1 x PS/2 Keyboard/Mouse header 1 x 8-Pin GPIO (4 in/4 out) 1 x TPM header |
Form Factor | Thin Mini-ITX 170 x 170mm 6.7" x 6.7" (in inches) |
Environmental | Operating Temperature: 0°C to 60°C (32°F to 140°F) Non-Operating Temperature: -20°C to 70°C (-4°F to 158°F) Operating Humidty: 0% - 90% (non-condensing) Non-Operating Humidity: 0% - 95% (non-condensing) |
Warranty | 1-Year Manufacturer's Limited Warranty |
