Manufacturer	ASRock Industrial
Part Number	IMB-R1000M
CPU	AMD Ryzen R1606G Processor 2.6 - 3.5GHz 2 Cores / 4 Threads 25W TDP, 1MB L2 Cache, 4MB L3 Cache
Chipset	SoC
Memory	2 x DDR4 SODIMM Slots Maximum 32GB Capacity 2400MHz Dual Channel Notes: 32GB requires 2 x 16GB
Video	AMD Radeon Vega 3 Graphics 1200MHz DisplayPort Max Resolution: 3840x2160@60Hz VGA Max Resolution: 1920x1200@60Hz LVDS Max Resolution: 1920x1200@60Hz eDP Max Resolution: 3840x2160@60Hz Supports Triple Displays
Audio	Realtek ALC887 HD Audio
Storage Technology	2 x SATA3 6Gb/s Ports 1 x M.2 2242/2260/2280 slot (SATA only, M Key) Note: M.2 shared with red SATA port
Connectivity	2 x Realtek R8111G GbE LAN
Expansion Slots	1 x PCI-E 3.0 x4 slot 1 x Mini PCI-E slot (Full/Half Sized, PCI-E x1 and USB 2.0) 1 x M.2 2230 slot (PCIe x1 and shared USB 2.0, E Key)
Power	12V DC-IN Alternate 4-Pin DC-IN

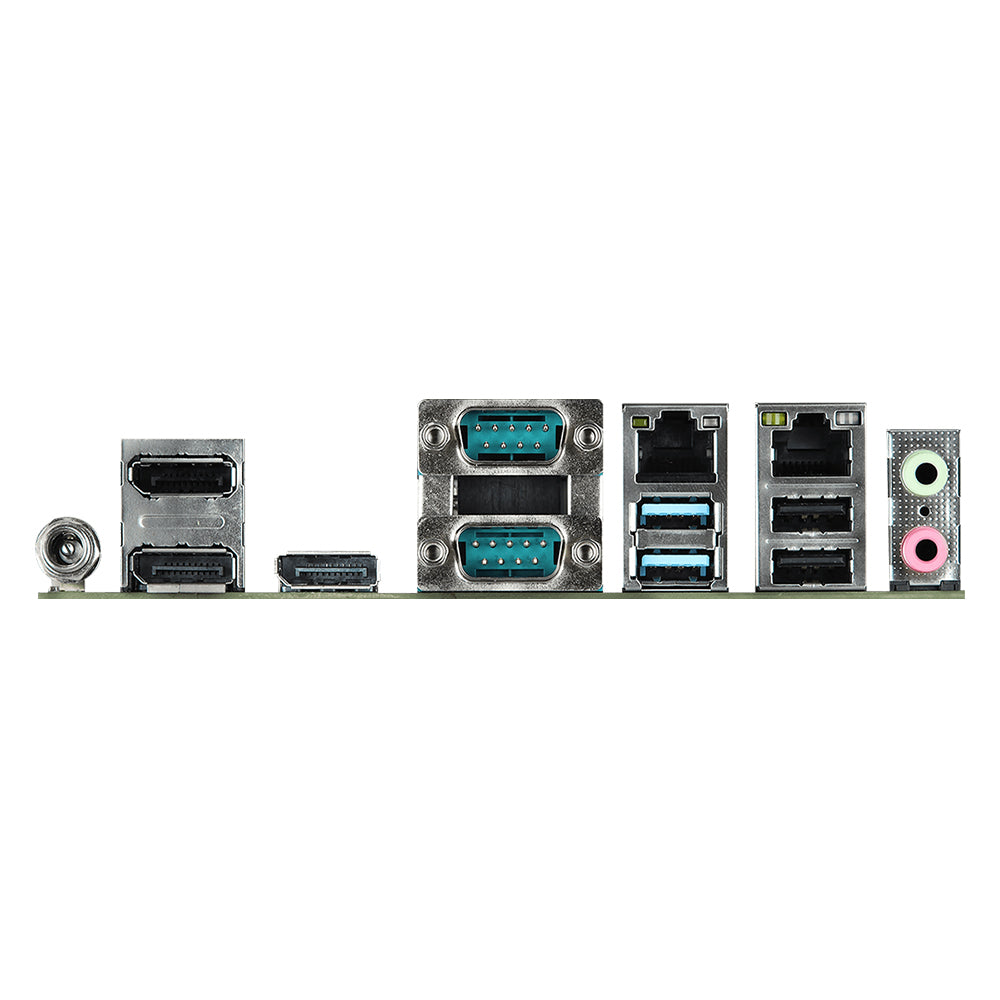

Rear I/O	1 x 12V DC-IN 3 x DisplayPorts 2 x Serial COM (RS232/422/485) 2 x RJ45 GbE LAN 2 x USB 3.2 (Gen2) 2 x USB 2.0 2 x Audio I/O
Onboard I/O Headers	2 x USB 2.0 headers (2.54 pitch, Supports up to 4 ports) 1 x USB 2.0 Type-A Vertical Connector 4 x Serial COM headers (RS232, COM6 shared with ccTalk) 1 x 16-pin GPIO (8 x GPI, 8 x GPO) (shared with LPT header) 1 x LVDS header (shared with DP1) 1 x eDP header (shared with DP0) 1 x VGA header (shared with DP3) 1 x Speaker header 1 x Onboard TPM 2.0
Form Factor	Mini-ITX 170 x 170mm 6.7" x 6.7" (in inches)
Environmental	Operating Temperature: 0°C to 60°C (32°F to 140°F) Non-Operating Temperature: -40°C to 85°C (-40°F to 185°F) Operating Humidity: 5% to 90% (non-condensing) Non-Operating Humidity: 5% to 90% (non-condensing)
Warranty	1-Year Manufacturer's Limited Warranty
