Manufacturer	Jetway
Part Number	IMB-1900-2L
CPU	Intel Celeron J1900 Processor 2.00 - 2.42 GHz 4 Cores / 4 Threads 10W TDP, 2MB L2 Cache
Chipset	SoC
Memory	1 x DDR3L SODIMM Slots 1333MHz Maximum 8GB Capacity Low Voltage 1.35V Required
Video	Intel HD Graphics 688 - 854 MHz HDMI Max Resolution: 1920x1200@60Hz VGA Maximum Resolution: 1920x1200@60Hz Supports Dual Display
Audio	Realtek ALC662 HD Audio
Storage Technology	1 x SATA2 3.0 Gb/s Port 1 x M.2 2242/2260 slot (SATA only)
Connectivity	2 x Realtek RTL8111G Gbe LAN
Expansion Slots	1 x Mini PCI-E slot (Full Size)
Power	12V DC-IN Barrel Connector Alternate ATX12V 2x2 Power Connector Note: No isolation circuitry, do not use more than one power supply.

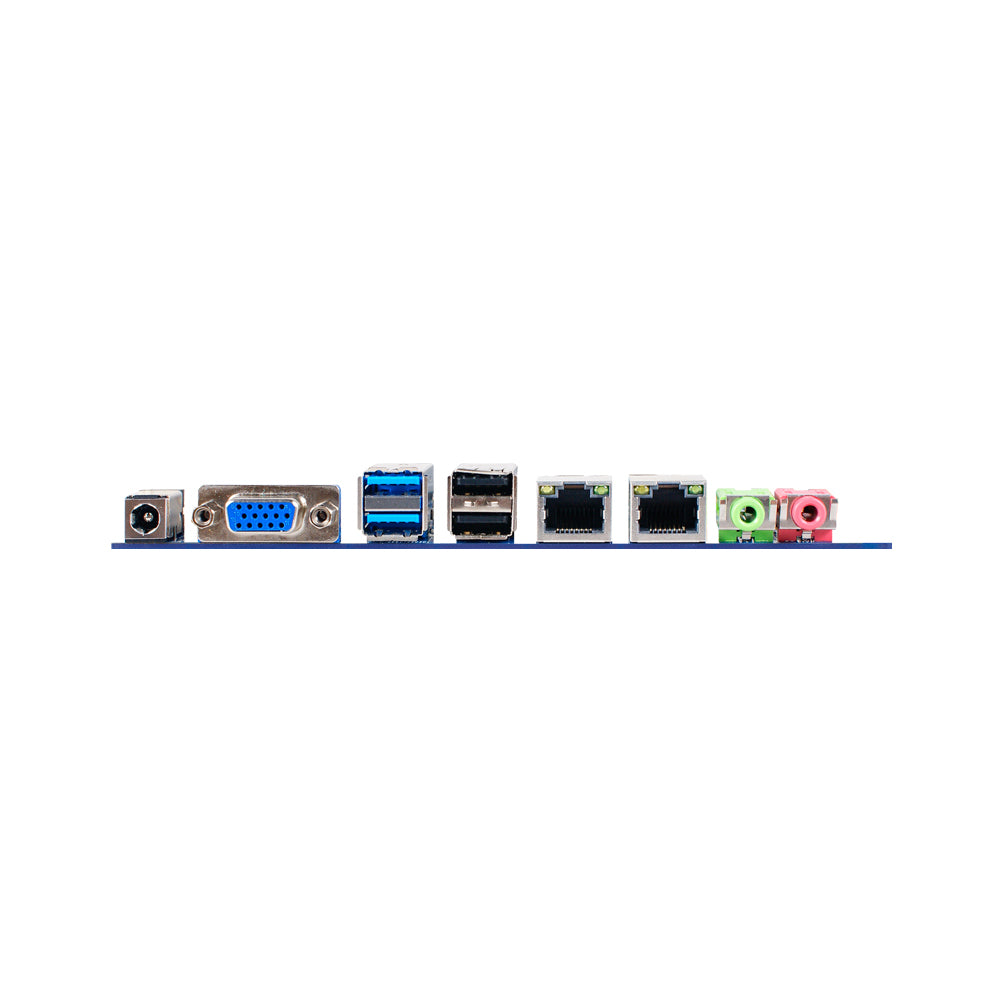

Rear I/O	1 x 12V DC-IN 1 x VGA 1 x USB 3.0 3 x USB 2.0 2 x RJ45 GbE LAN 2 x Audio I/O
Onboard I/O Headers	10 x Serial Port headers (RS232, 2.0mm pitch) 2 x Serial Port headers (RS232/422/485/TTL, 2.0mm pitch) 3 x USB pin headers (Supports up to 6, 2.0mm pitch) 1 x 24-bit Dual Channel LVDS Connector/Inverter 1 x SIM Card Socket 1 x AT/ATX Mode jumper 1 x 20-pin HDMI header 1 x 12-pin VGA header 1 x 4-pin 3W Stereo Amplifier header (Left+Right) 1 x 10-pin GPIO header 1 x 25-pin Parallel header 1 x 4-pin Fan header
Form Factor	Mini-ITX 170 x 170mm 6.7" x 6.7" (in inches)
Environmental	Operating Temperature: 0°C to 60°C (32°F to 140°F) Non-Operating Temperature: -20°C to 80°C (-4°F to 176°F)
Warranty	1-Year Manufacturer's Limited Warranty
