Manufacturer	ASRock Industrial
Part Number	IMB-1210-D
CPU	Supports Intel 8th/9th Gen Core Processors (Coffeelake-S) Supports up to 65W TDP Note: Performance of CPUs over 65W will be limited due to power design Socket LGA1151
Chipset	Intel H310
Memory	2 x DDR4 SODIMM Slots Maximum 64GB Capacity Intel Core i9/i7/i5 support up to 64GB Capacity Intel Core i3/Pentium/Celeron support up to 32GB Capacity 2666MHz Dual Channel
Video	Intel HD Graphics (CPU Dependent) DisplayPort Max Resolution: 4096x2304@60Hz eDP Max Resolution: 4096x2304@60Hz  Supports Dual Display
Audio	Realtek ALC887 HD Audio
Storage Technology	4 x SATA3 6Gb/s Ports 1 x M.2 2242/2260/2280 slot (SATA Only, M Key) Note: M.2 shared with SATA_3 port
Connectivity	1 x Intel I210 GbE LAN 1 x Intel I219V GbE LAN
Expansion Slots	1 x PCI-E 3.0 x16 slot 1 x Mini PCI-E slot (Full/Half Sized, PCI-E x1 and USB 2.0) 1 x M.2 2230 slot (PCIe x1, USB 2.0, CNVI for Wireless, E Key)
Power	24+4-Pin ATX Power Connector

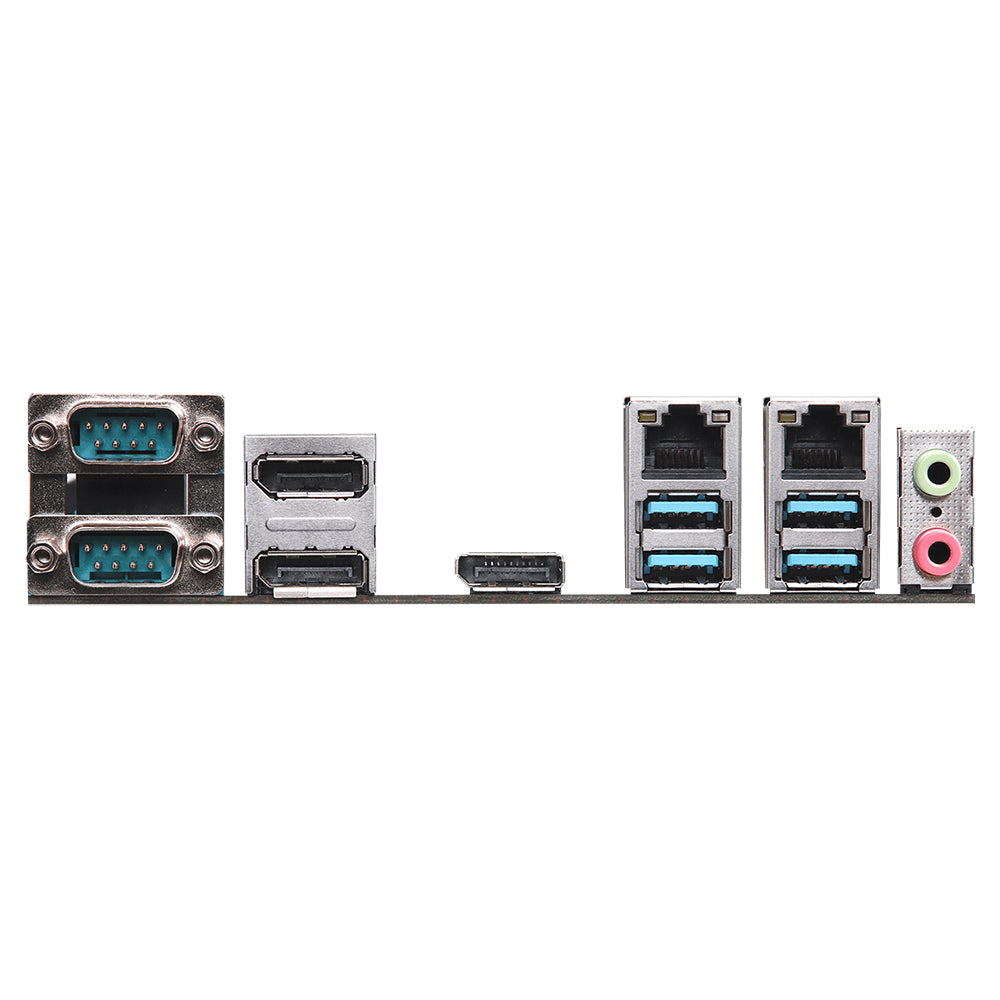

Rear I/O	1 x Serial COM (RS232/422/485) 1 x Serial COM (RS232) 3 x DisplayPort 2 x RJ45 GbE LAN 4 x USB 3.1 (Gen1) 2 x Audio I/O
Onboard I/O Headers	2 x USB 2.0 headers (2.54 pitch, Supports up to 4 ports) 2 x Serial COM headers (RS232) 1 x 8-pin GPIO (4 x GPI, 4 x GPO) 1 x eDP header 1 x Speaker header 1 x TPM header
Form Factor	Mini-ITX 170 x 170mm 6.7" x 6.7" (in inches)
Environmental	Operating Temperature: 0°C to 60°C (32°F to 140°F) Non-Operating Temperature: -40°C to 85°C (-40°F to 185°F) Operating Humidity: 5% to 90% (non-condensing) Non-Operating Humidity: 5% to 90% (non-condensing)
Warranty	1-Year Manufacturer's Limited Warranty
