| Product ID |
HPW-TRX40-R01N |
| CPU |
AMD Ryzen Threadripper 3rd Gen Processor
AMD Socket sTRX4 |
| Chipset |
AMD TRX40 |
| Memory |
Includes 64GB DDR4 DIMM
8 x 288-pin DDR4 DIMM
Maximum 256GB Capacity
2133MHz Minimum
Quad-Channel
Supports ECC or non-ECC, Un-buffered Memory |
| Video |
GPU Dependent |
| Audio |
Realtek ALC4050H+ALC1220
7.1 Channel HD Audio |
| Storage Technology |
8 x SATA3: 6Gb/s
Supports RAID 0, 1, 10
2 x M.2: PCI-E 4.0 x4
1 x M.2: SATA or PCI-E 4.0 x4 |
| Connectivity |
1 x Dragon RTL8125AG 2.5GbE LAN
Supports Wake-On-LAN
Supports PXE
1 x Inte I211-AT GbE LAN
Supports Wake-On-LAN
Supports PXE
1 x Intel 802.11AX WIFI Module
Dual Band (2.4/5 GHz)
Bluetooth 5.0 + High speed class II |
| Expansion Slots |
4 x PCI-E 4.0 x16 slots
Quad: x16/x8/x16/x8
1 x M.2 Vertical E-Key (Occupied by WIFI Module) |

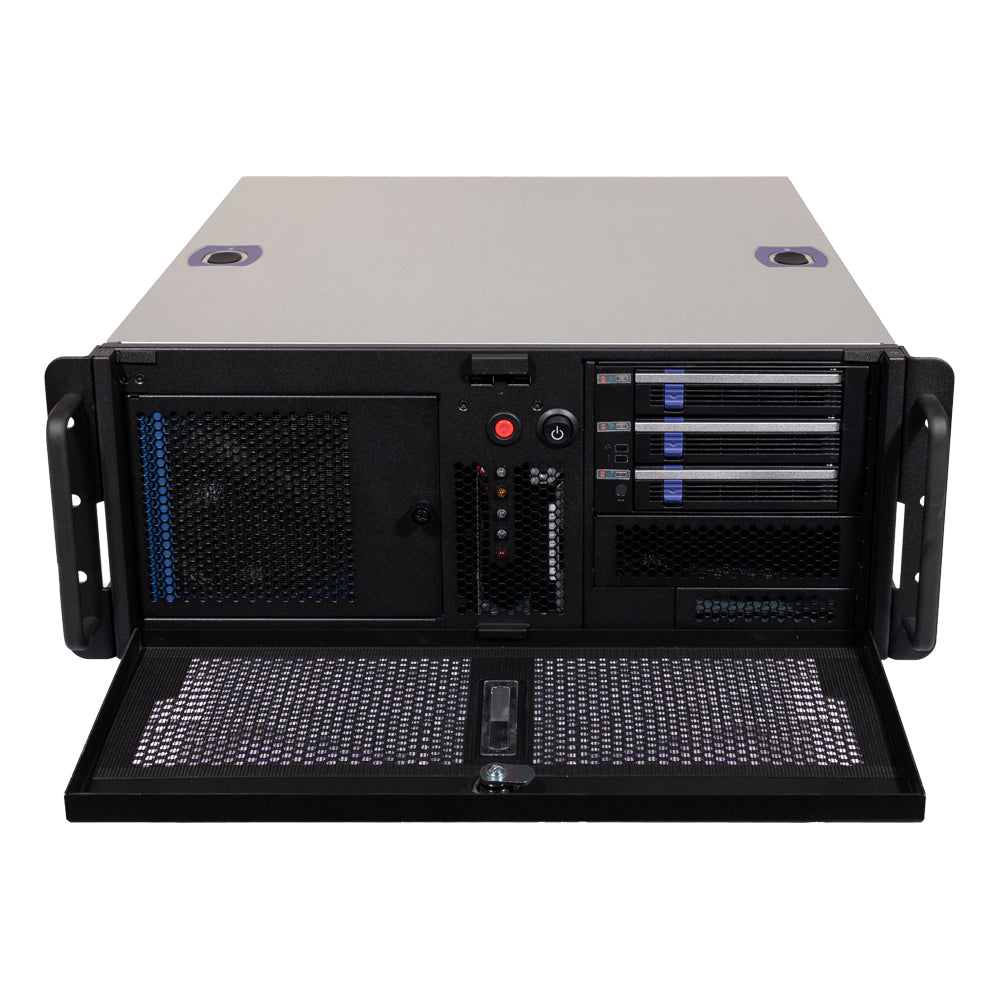

| Front Panel I/O |
2 x USB 2.0
1 x Power Button
1 x Reset Button
5 x Status LED (Power, HDD, LAN) |

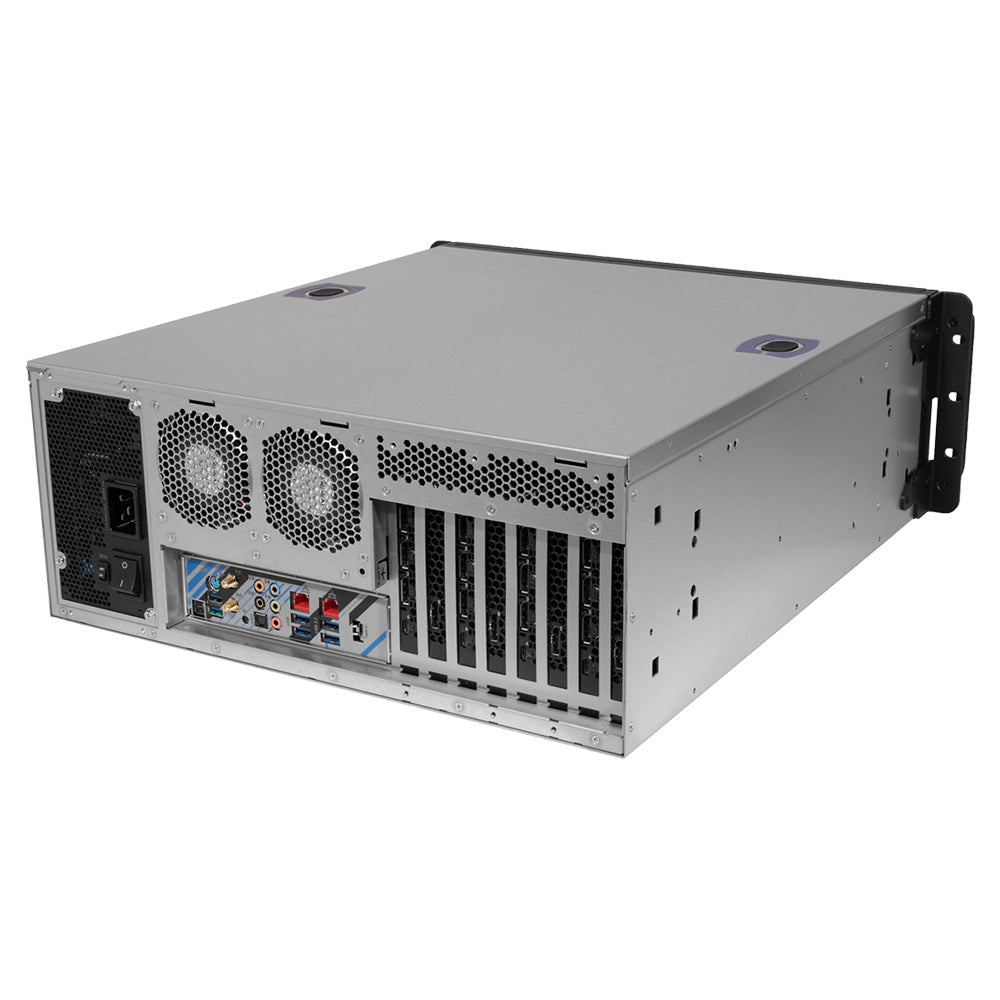

| Rear Panel I/O |
2 x Antenna Connector
2 x BIOS Flashback Button
1 x RJ45 GbE LAN
6 x USB 3.2 (Gen1) 1 x PS/2 Keyboard/Mouse
1 x USB 3.2 (Gen2) Type-C
1 x RJ45 2.5GbE LAN
2 x USB 3.2 (Gen2) Type-A
5 x Audio I/O
1 x S/PDIF |
| Drive Support |
1GB NVMe M.2 Solid State Drive Installed
4TB 3.5" 7200PRM Enterprise SATA Hard Drive Installed
3 x 5.25" Drive Bays (External)
1 x 3.5" Drive Bay (External)
4 x 3.5" Drive Bays (Internal)
1 x 2.5" Drive Bay (Internal)
1 x M.2 2242/2260/2280/22110 slot (SATA or PCI-E 4.0 x4) |
| Fan Support |
2 x 80x25mm Front Fan
2 x 80x25mm Rear Fan |
| Power Supply |
2000W 80+ Platinum Modular ATX Power Supply
AC Input: 100 - 240 VAC, 12-15A, 50-60Hz
2000W Output @ 200-240Vac
1500W Output @ 115-200Vac
1200W Output @ 100-115Vac |
| Case Dimensions |

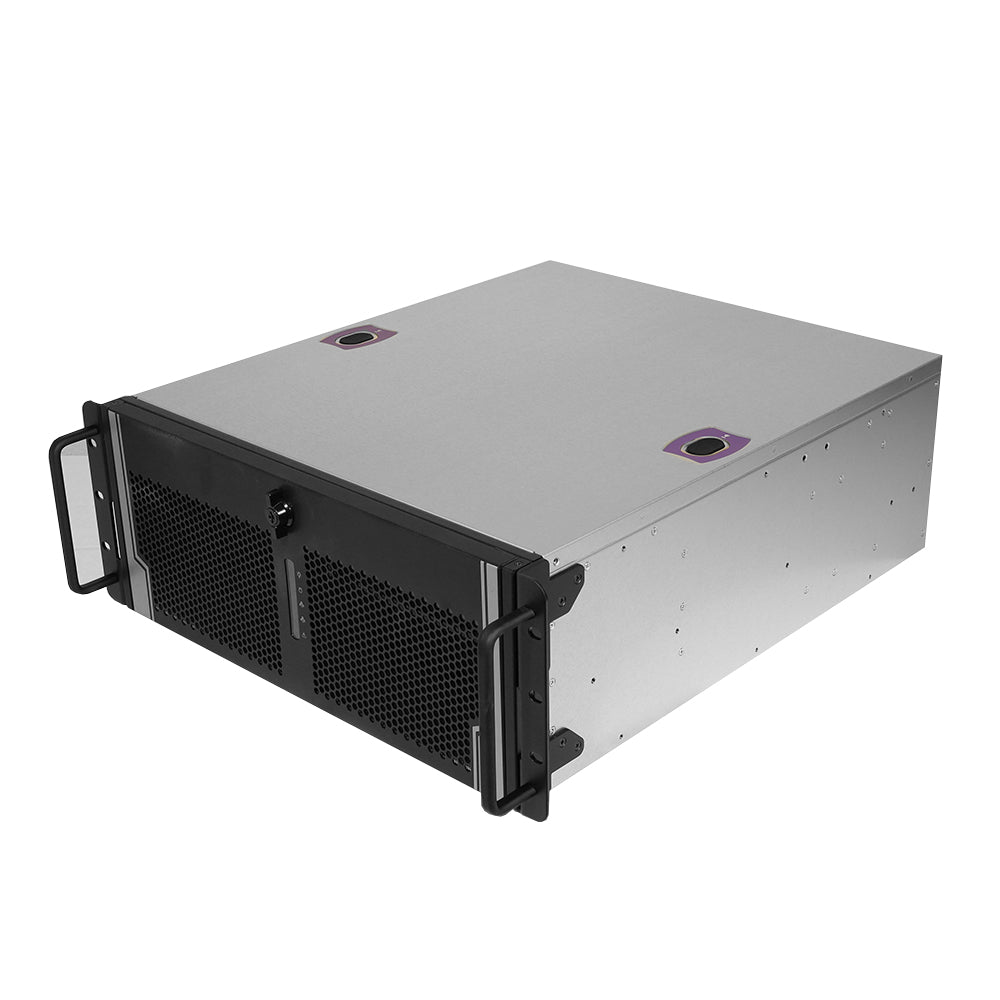

4U Rackmount
525 x 430 x 174.8mm
20.7" x 16.9" x 6.9" (in inches) |
| Warranty |
1-Year Warranty on Parts and Labor |
