Manufacturer | Jetway |
Part Number | HBJC400P691W-420B |
Model Number | JBC400P691 |
CPU | Intel Pentium N4200 Processor 1.10 - 2.50 GHz 4 Cores / 4 Threads 6W TDP, 2MB Cache, 64-bit |
Chipset | SoC |
Memory | 1 x DDR3L SODIMM slot Maximum 8GB Capacity 1866MHz Low Voltage 1.35V Required |
Video | Intel HD Graphics 505 200 - 750 MHz HDMI Max Resolution: 3840x2160@30Hz |
Audio | Intel Display Audio via HDMI |
Drive Support | 1 x M.2 Slot (M key, Type 2242 SATA SSD only) |
Connectivity | 1 x Realtek RTL8111H Gigabit LAN Wireless 802.11 b/g/n + Bluetooth 4.0 |
Expansion Slots | 1 x Mini PCI-E slot (Occupied by WIFI) 1 x Micro SIM Slot |
Power | 12V DC-IN Locking Barrel Connector (2.5mm/5.5mm) 40W 12V AC-DC Adapter |

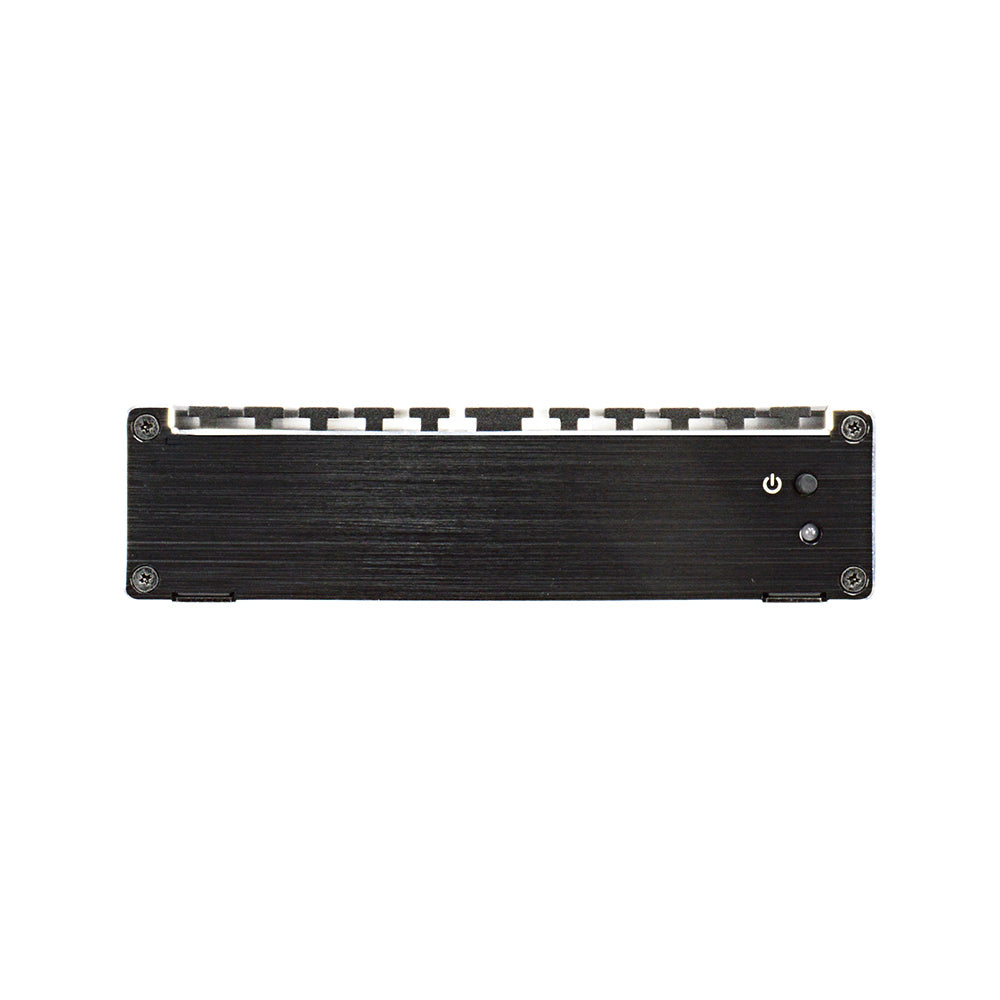

Front Panel I/O | 1 x Power Button 1 x Power LED |

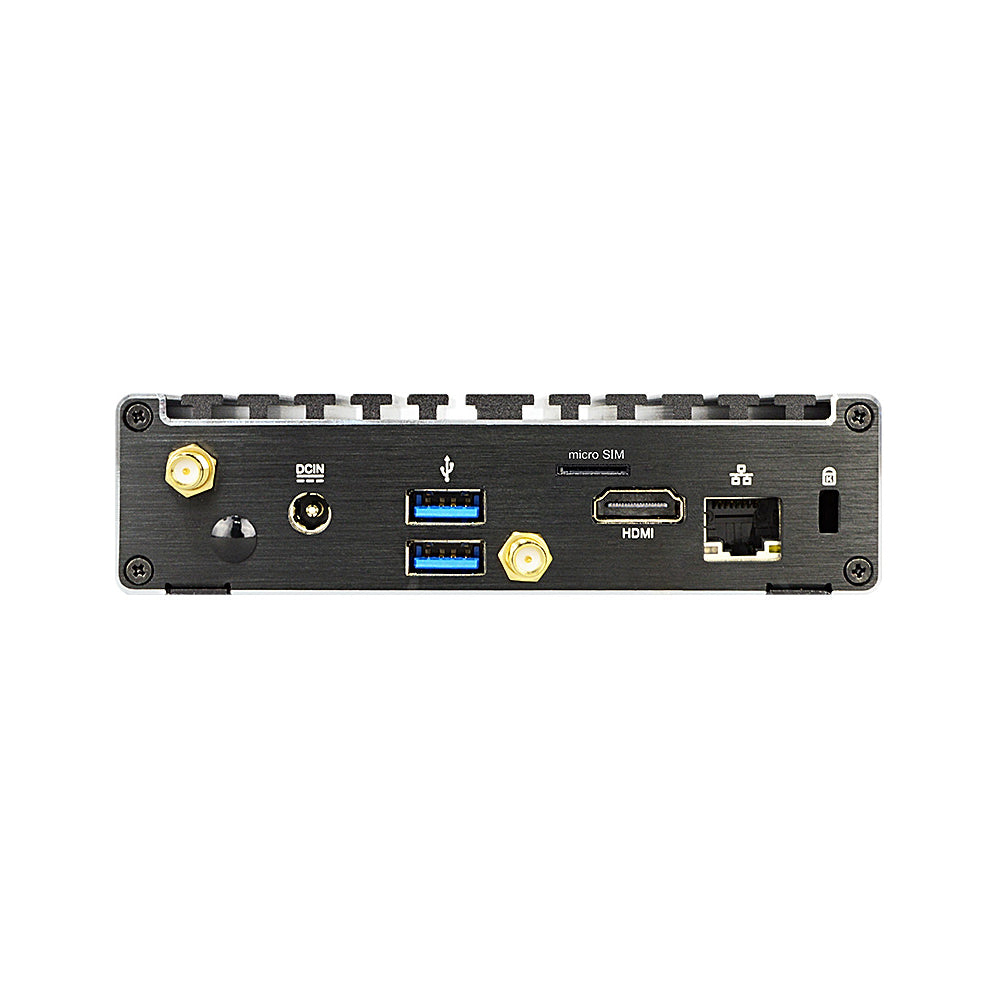

Rear Panel I/O | 2 x Antenna Connector 1 x 12V Locking DC-IN 2 x USB 3.0 1 x HDMI 1 x Micro SIM Slot 1 x RJ45 1 x Kensington slot |
Case Dimensions | 129mm x 78.4mm x 34mm 5.07" x 3.09" x 1.34" |
Compliance | CE, FCC, RoHS, ErP/EuP |
Environmental | Operating Temperature: 0° ~ 40°C with air flow Storage Temperature: -20° ~ 80°C |
Warranty | 1-Year Manufacturer's Limited Warranty |
