Manufacturer | Jetway |
Part Number | HBJC390F541CA19B |
Model Number | JBC390F541CA-1900-B |
CPU | Intel Celeron J1900 Quad Core Processor 2 - 2.42 GHz 4 core / 4 Threads 10W TDP, 22nm, 2MB Cache, 64-bit |
Chipset | SoC |
Memory | 1 x 204-pin DDR3L SODIMM Maximum 8GB capacity 1333MHz Minimum Low Voltage 1.35V required |
Video | Intel HD Graphics 688 MHz - 854 MHz |
Audio | Realtek ALC662 HD Audio |
Storage | 1 x 2.5" SATA2 3Gb/s drive 1 x Mini PCI-E slot with mSATA support |
Connectivity | 2 x Intel i211AT GbE LAN |
Expansion Slots | 1 x Mini PCI-E (Full Size) 1 x SIM Card Socket |

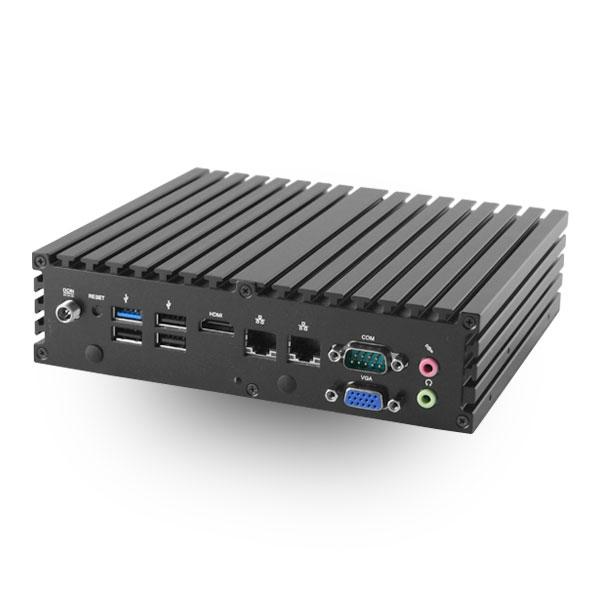

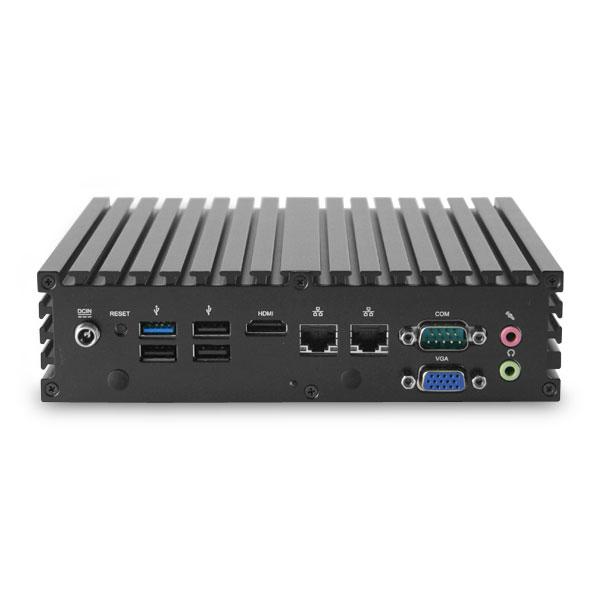

Rear Panel I/O | 1 x 12V DC-IN 1 x Reset button 1 x USB 3.0 3 x USB 2.0 1 x HDMI 2 x RJ45 GbE LAN 1 x Serial COM Port (RS232/422/485) 1 x VGA 2 x Audio I/O 2 x Cutout for Antenna Jack |

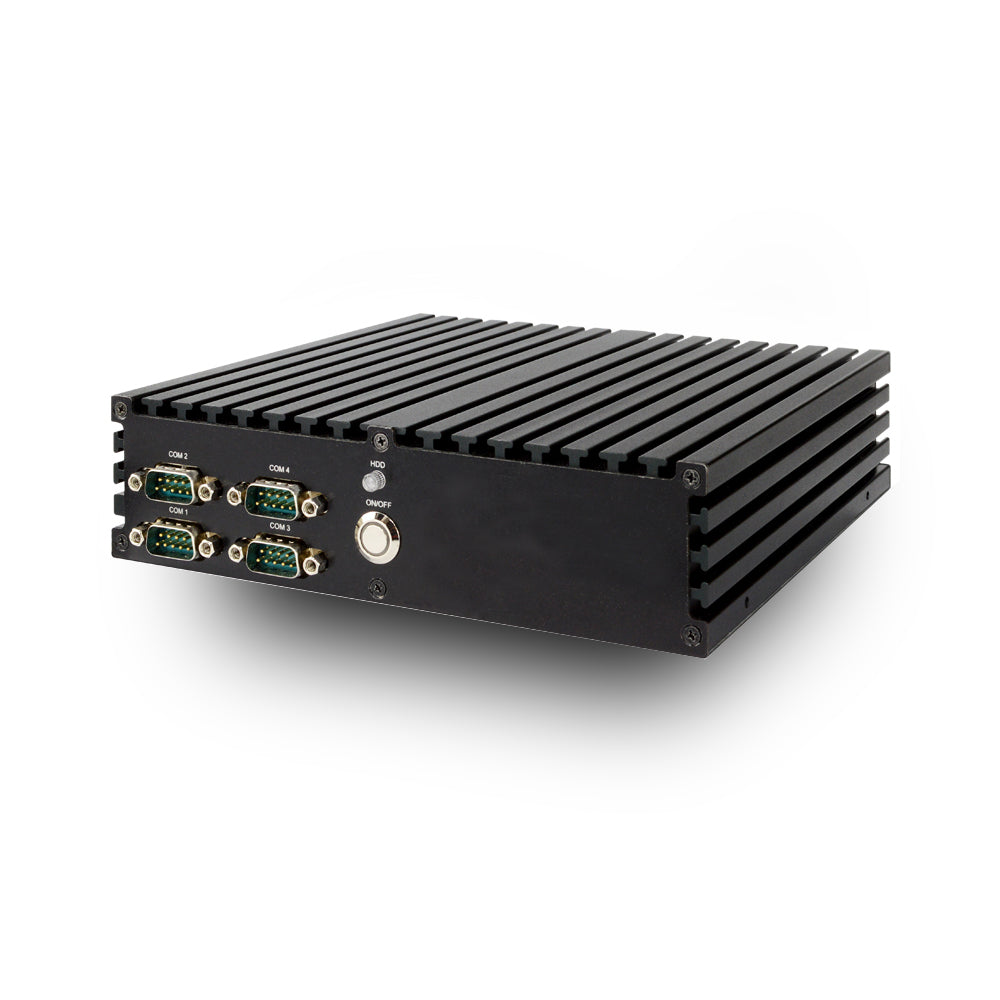

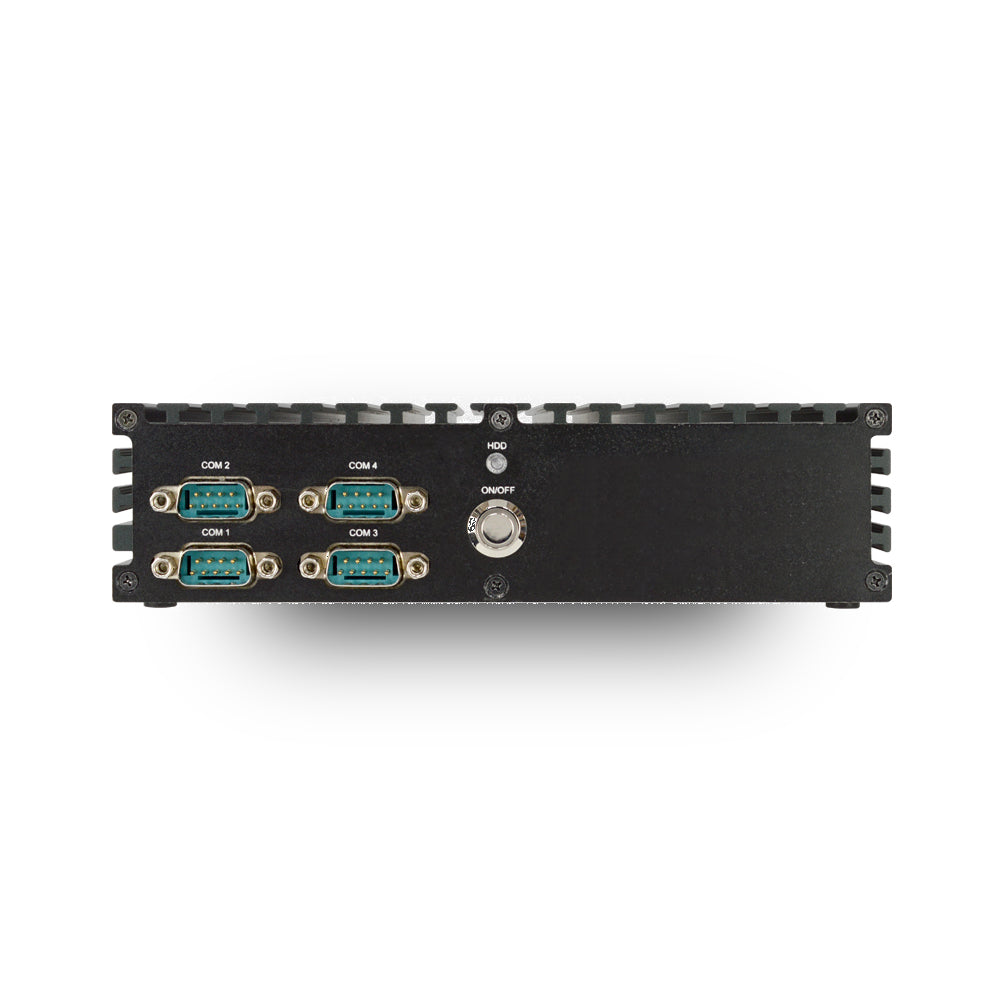

Front Panel I/O | 4 x Serial COM Port (RS232/422/485) 1 x HDD LED 1 x Power button |
Drive Support | 1 x 2.5" SATA Drive 1 x mSATA |
Power Supply | 60W 12V Universal AC-DC Adapter (110/220V) |
Case Dimensions | 165mm x 185mm x 48mm 6.50" x 7.28" x 1.89" (in inches) |
Mounting | Wall Mounting Kit |
Warranty | 1-Year Limited Warranty |
