Manufacturer | ASRock |

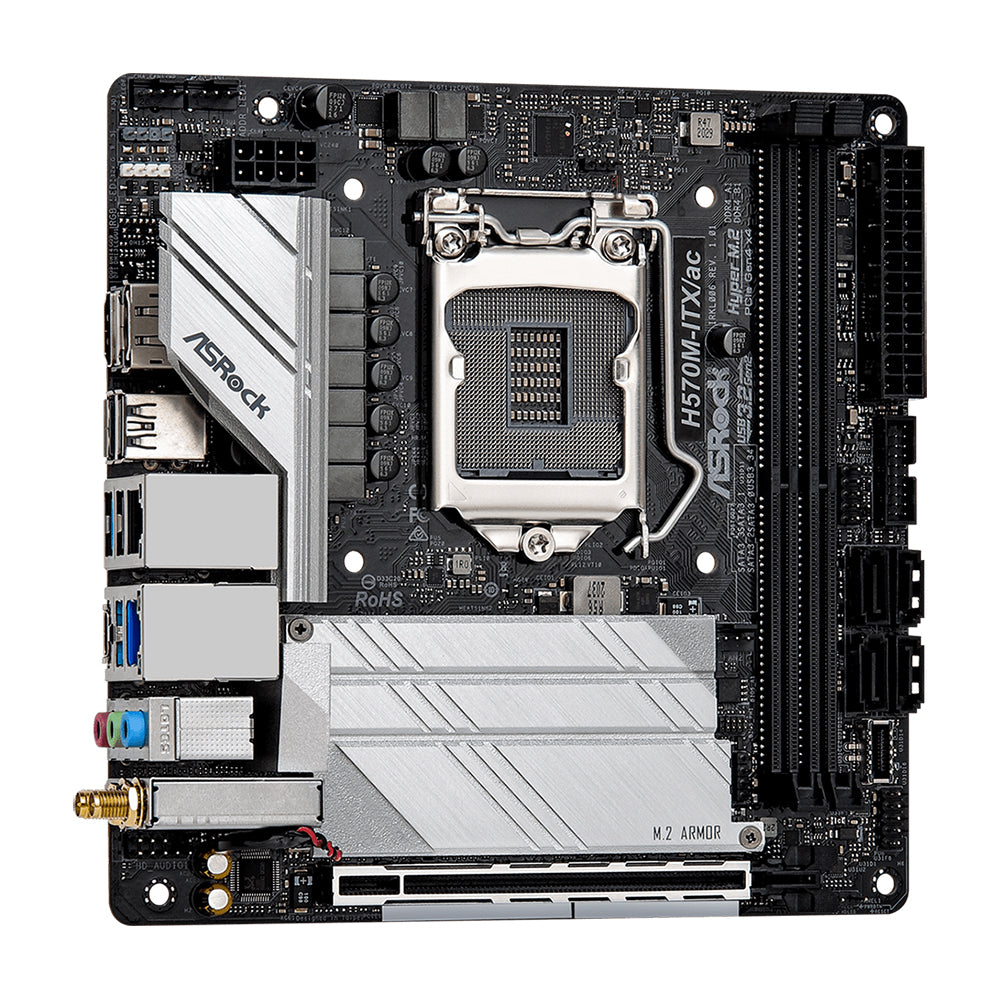

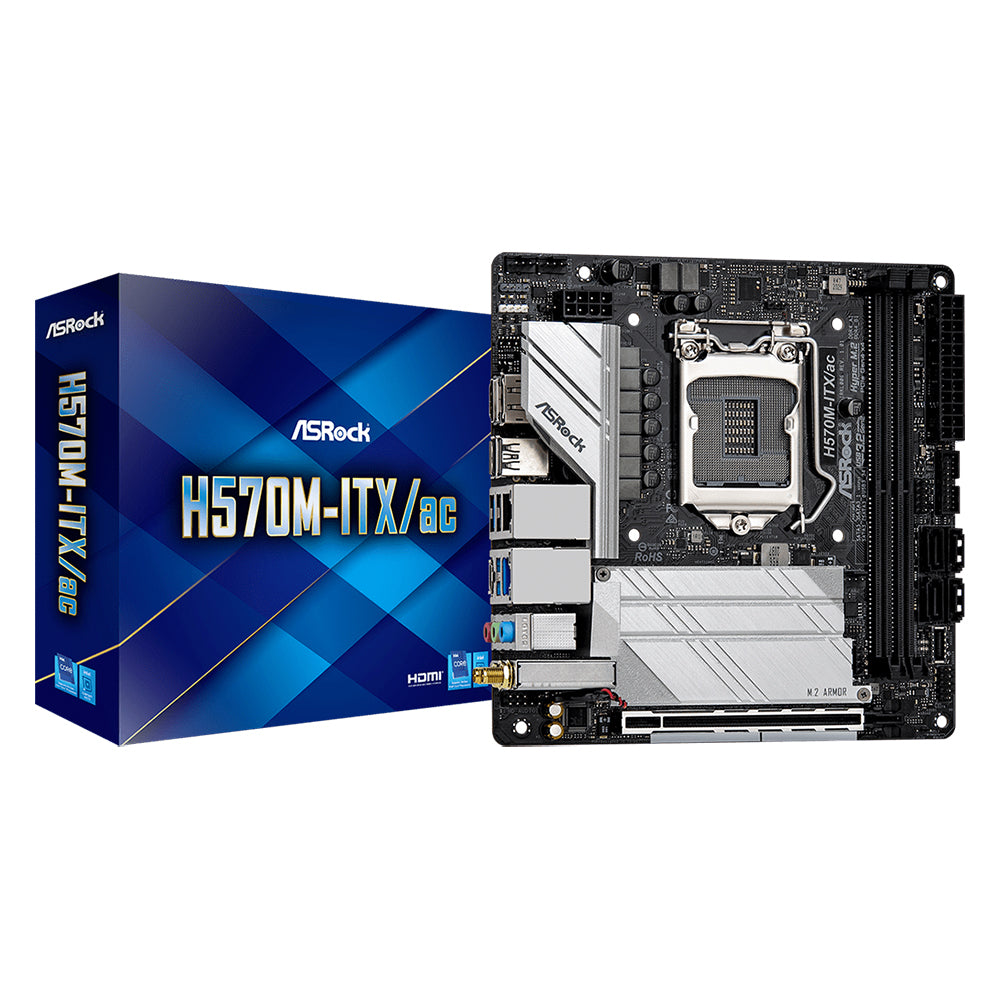

Part Number | H570M-ITX/ac |
CPU | Supports Intel 10th/11th Gen Processors Socket LGA1200 Supports Intel Turbo Boost Max 3.0 Technology |
Chipset | Intel H570 |
Memory | 2 x DDR4 DIMM slots Maximum 64GB Capacity Dual Channel Memory Technology 11th Gen Intel Core i9/i7/i5 support DDR4 3200 natively; Core i3, Pentium and Celeron support DDR4 2666 natively 10th Gen Intel Core i9/i7 support DDR4 2933 natively; Core i5/i3, Pentium and Celeron support DDR4 2666 natively |
Video | Intel UHD Graphics (CPU Dependent) HDMI 2.0 with 11th Gen Processors Max Resolution: 4096x2160@60Hz HDMI 1.4 with 10th Gen Processors Max Resolution: 4096x2160@30Hz Display Port Max Resolution: 4096x2304@60Hz Supports Dual Display via HDMI and DisplayPort |
Audio | Realtek ALC897 Audio Codec 7.1 CH HD Audio Supports Surge Protection Nahimic Audio |
Storage Technology | 4 x SATA3 6.0 Gb/s Connectors Supports RAID 0, 1, 5, 10 1 x M.2 2280 slot: PCI-E 4.0 x4 (Requires 11th Gen Core Processors) 1 x M.2 2280 slot: SATA and PCI-E 3.0 x4 Supports RAID 0 and RAID 1 for M.2 NVMe Storage Devices Note: RAID function for PCIe mode SSD available only with Intel SSD |
Connectivity | 1 x Dragon RTL8125BG 2.5GbE LAN Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient 802.3az 1 x Intel I219V GbE LAN Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient 802.3az Supports PXE Inte 802.11ac WiFi Module Supports IEEE 802.11 a/b/g/n/ac Dual Band (2.4/5 GHz) Supports Bluetooth 4.2 / 3.0 + High speed class II |
Expansion Slots | 1 x PCI-E 4.0 x16 slot (with 11th Gen Core Processors) 1 x PCI-E 3.0 x16 slot (with 10th Gen Core Processors) 1 x M.2 Verticle slot (E Key, Occupied by WIFI Module) |
Power | 1 x 24-Pin ATX Power Connector 2 x 8-Pin ATX 12V Power Connector for CPU |
Rear I/O | 1 x DisplayPort 1 x HDMI 3 x USB 2.0 1 x RJ45 GbE LAN 2 x USB 3.2 (Gen2) Type-A 1 x RJ45 2.5GbE LAN 1 x USB 3.2 (Gen2x2) Type-C 3 x Audio I/O 2 x Antenna Connector |
Onboard I/O Headers | 1 x RGB LED header (Supports in total up to 12V/3A, 36W LED Strip) 1 x Addressable LED header (Supports up to 5V/3A, 15W LED Strip) 1 x 4-Pin Chassis Fan Connector 1 x 4-Pin Chassis/Water Pump Fan Connector (Supports Maximum 2A, 24W Fan Power) 1 x Front Panel Audio Connector 1 x USB 2.0 header (Supports up to 2 ports) 1 x USB 3.2 (Gen1) header (Supports up to 2 ports) 1 x USB 3.2 Type-C header (5Gb/s) |
Form Factor | Mini ITX 6.7" x 6.7"(in inches) 170 x 170mm |
OS Support | Microsoft Windows 10 64-bit Microsoft Windows 11 64-bit |
Compliance | FCC, CE ErP/EuP Ready (ErP/EuP ready power supply is required) |
Warranty | 1-Year Manufacturer's Limited Warranty |
