Manufacturer	GigaIPC
Product ID	EL-30
CPU	Intel Pentium N4200 Processor 1.10 - 2.50 GHz 4 core / 4 Threads 6W TDP, 14nm, 2MB L2 Cache
Chipset	SoC
Memory	Includes 4GB DDR3L SODIMM Memory 2 x DDR3L SODIMM slots Maximum 8GB capacity 1600/1866 MHz Dual Channel Requires 1.35V Low Voltage Memory
Video	Intel HD Graphics 505 200 - 750 MHz HDMI Max Resolution: 3840x2160@30Hz
Audio	Reatel ALC255 HD Audio
Storage Technology	Onboard 32GB eMMC Storage 1 x Mini PCI-E (Full Size, mSATA support)
Connectivity	2 x Realtek RTL8111HS GbE LAN Wireless M.2 Module
Expansion Slots	1 x M.2 (E Key, Occupied by WIFI module) 1 x Micro SD Card slot 1 x Zigbee Module Support 1 x TPM header

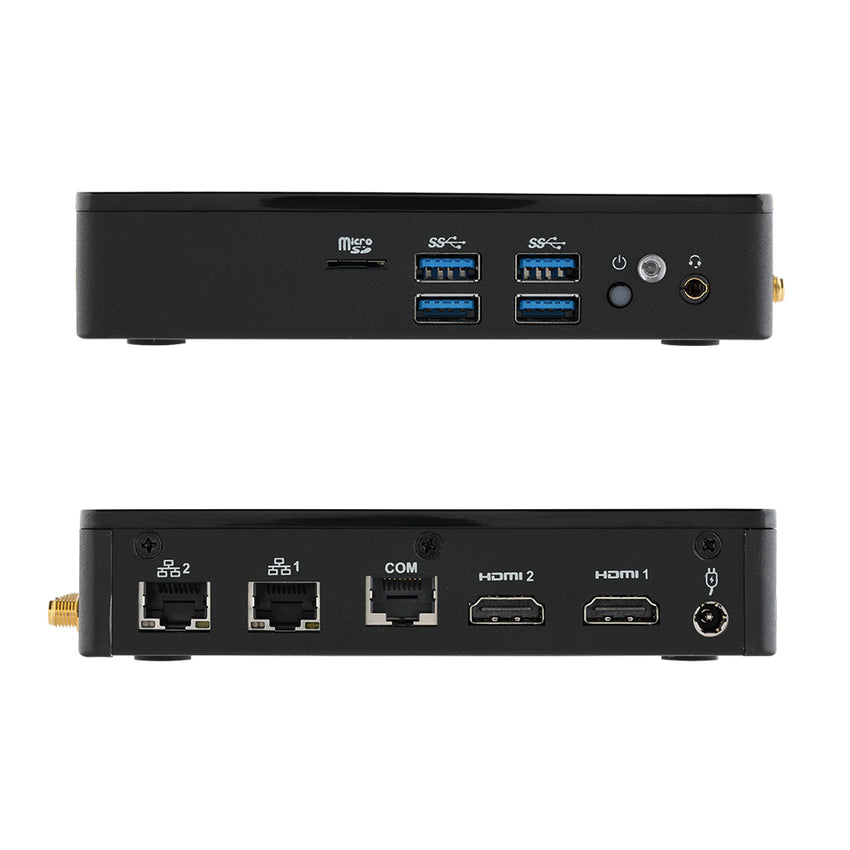

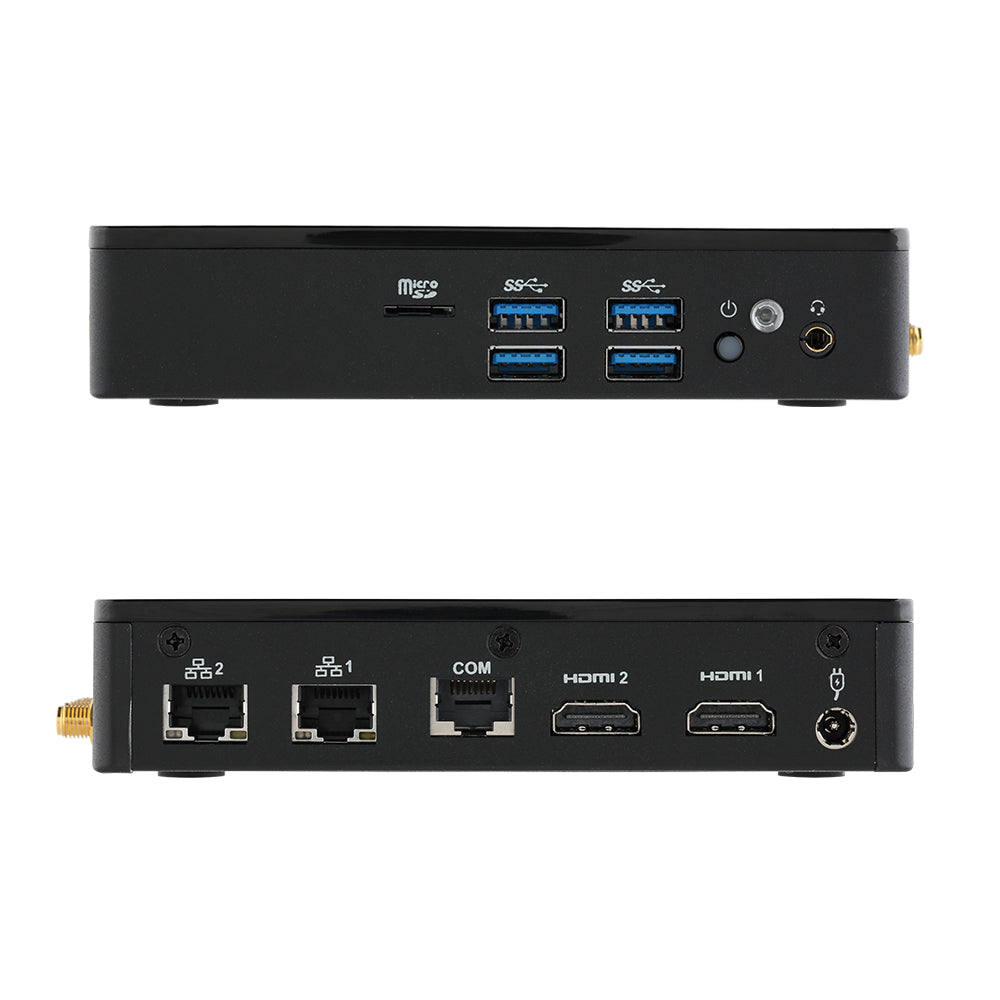

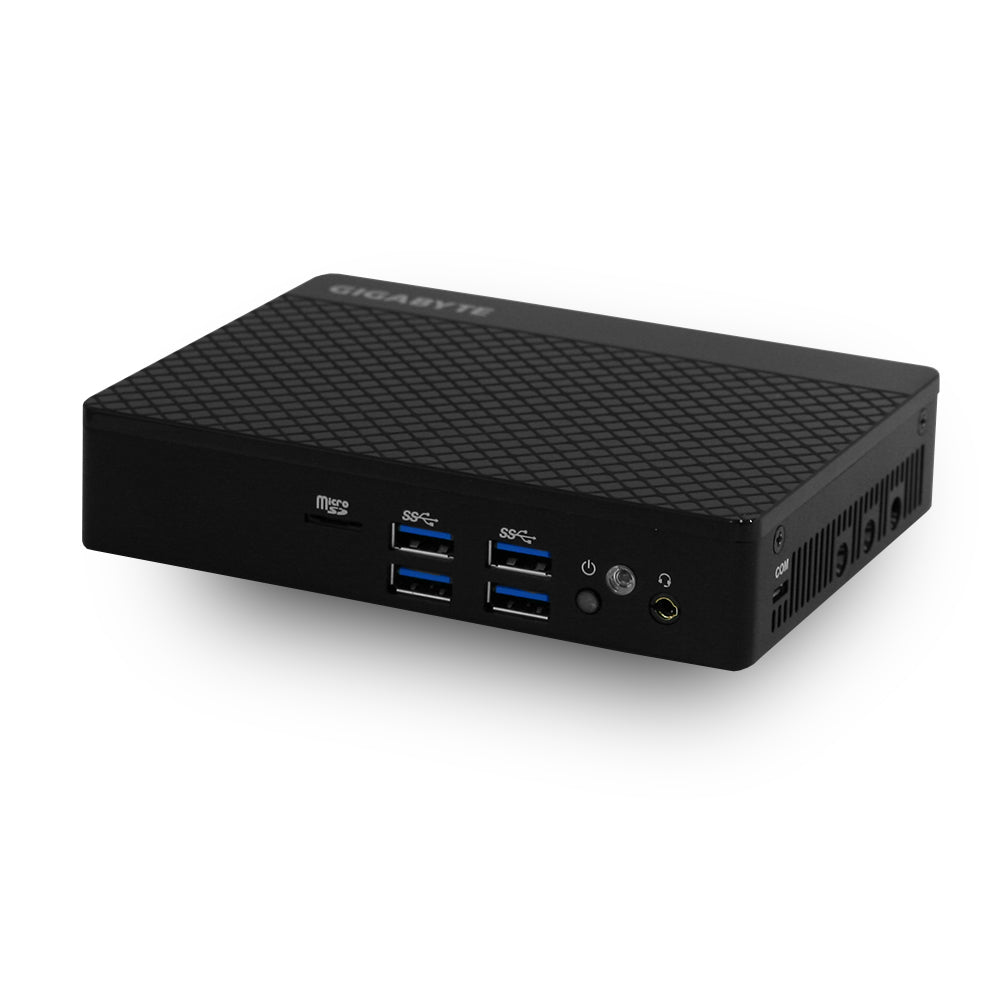

Front Panel I/O	1 x Micro SD Slot 4 x USB 3.0 1 x Power Button w/ LED 1 x Status LED (HDD) 1 x Audio I/O

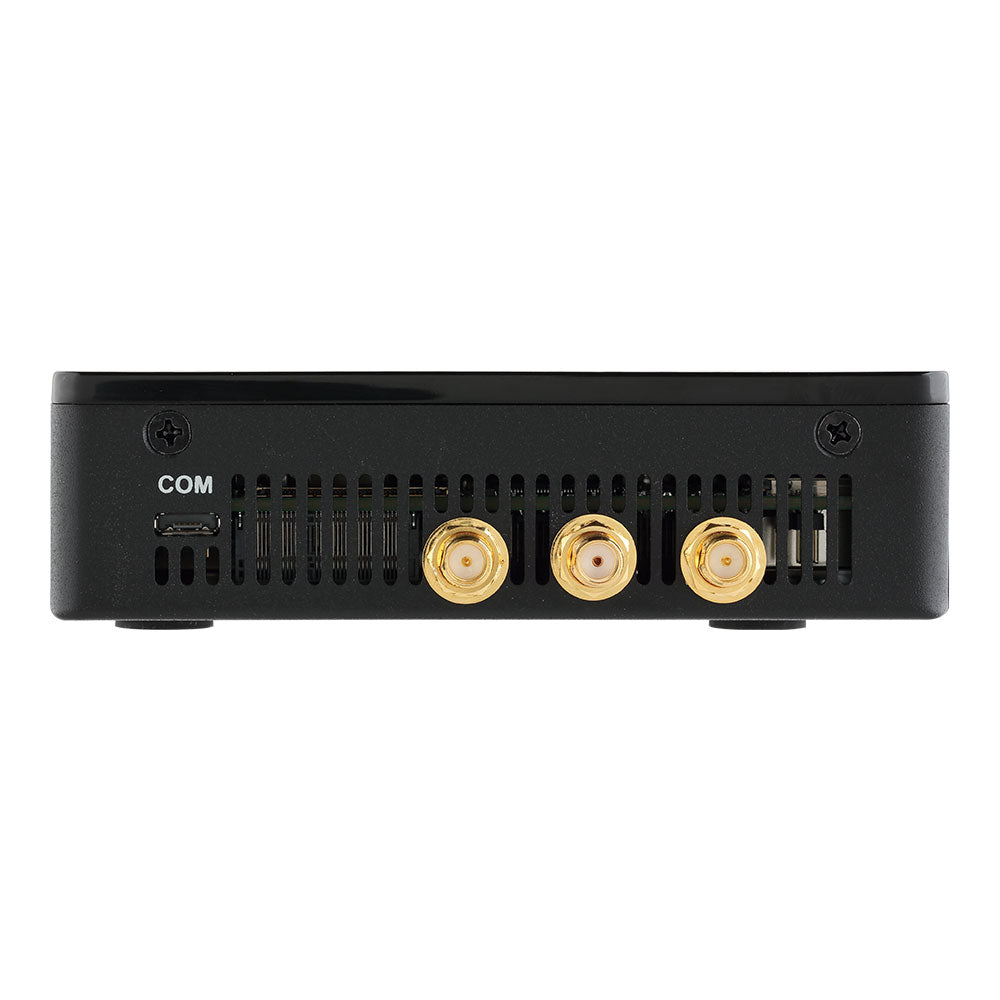

Side Panel I/O	1 x Micro-B 5-Pin RS232 Full Duplex Port (TxD, RxD, CTS, RTS, GND)

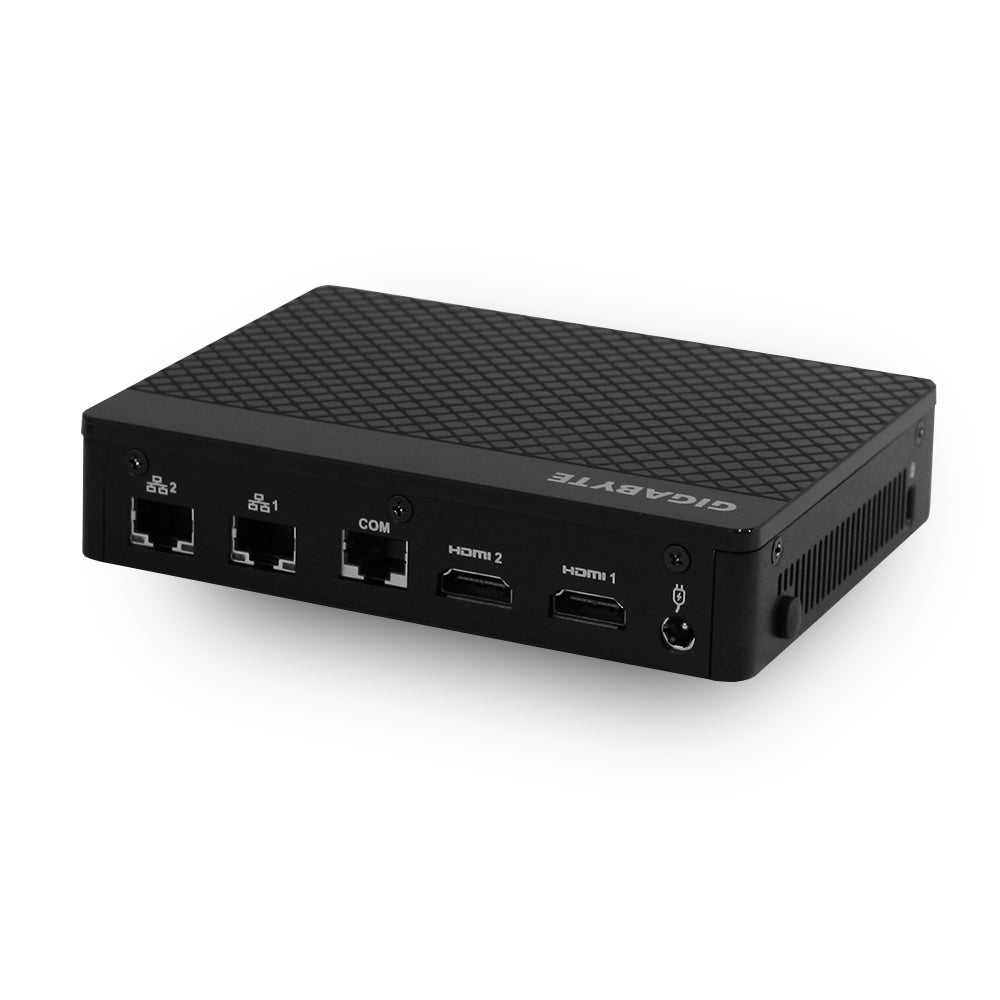

Rear Panel I/O	2 x RJ45 GbE LAN 1 x RJ45 COM (RS232/485) 2 x HDMI 1 x 19V DC-IN
Drive Support	Onboard 32GB eMMC Storage 1 x Mini PCI-E (Full Size, mSATA support) 1 x Micro SD card Slot
Power Supply	19V DC IN AC: 100-240V, 3.42A, 65W
Case Dimensions	140.8 x 107.5 x 29.5 mm 5.5" x 4.2" x 1.2" (in inches)
Environmental	Operating Temperature: 0°C to 40°C (32°F to 104°F) Non-Operating Temperature: -20°C to 60°C (-4°F to 140°F) Operating Humidty: 0% - 90% (non-condensing) Non-Operating Humidity: 0% - 95% (non-condensing)
Warranty	1-Year Manufacturer's Limited Warranty
