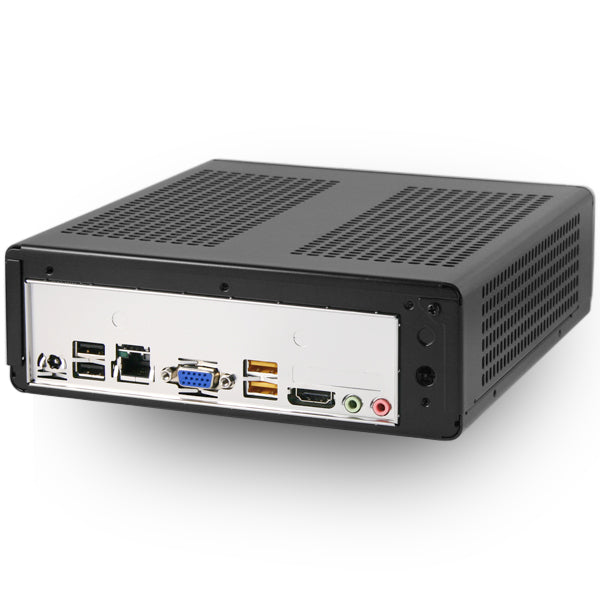

| MITXPC Intel Atom N2800 Mini-ITX Fan-less Embedded Barebone Kit |
|
| Product ID |
EKMPD11TIM350 |
| CPU |
Intel Atom N2800 Core Processor
1.86 GHz
2 core / 4 Threads
6.5W TDP, 32nm, 1MB Cache, 64-bit*
Tip: Windows 32-bit OS software recommended. 64-bit devices drivers, for Windows, are not available. |
| Chipset |
Intel NM10 Express |
| Memory |
2 x 204-pin DDR3 SODIMM
Maximum 4GB capacity
1066MHz Minimum |
| Video |
Intel GMA 3600
640MHz |
| Audio |
Realtek ALC888S HD Audio
2 + 2 HD Audio
In-chassis stereo speaker support (3W / 3?)
8-Channel HD Audio via HDMI |
| Storage |
2 x SATA 3Gb/s
1 x mSATA*
Tip: mSATA port multiplexed with SATA Port 1 (gray) |
| Connectivity |
1 x Intel 82579L
10/100/1000 (Gigabit)
Wake On LAN (WOL) |

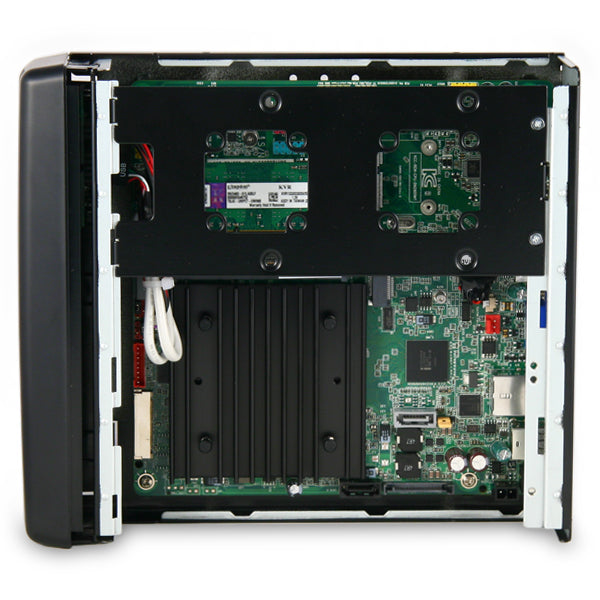

| Expansion Slots |
1 x Mini PCI-E (half/full-length; shared with mSATA)
1 x Mini PCI-E (half-length)

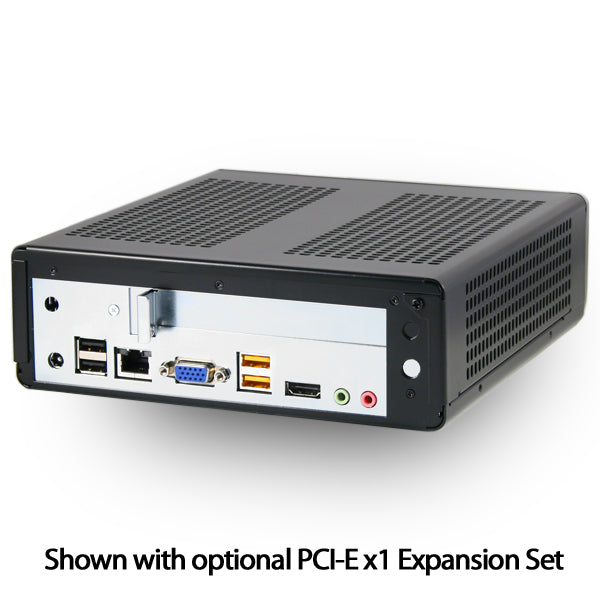

1 x PCI-E x1 (1.0a)*
Tip: PCI-E expansion requires the optional PCI-E expansion set (see options) |

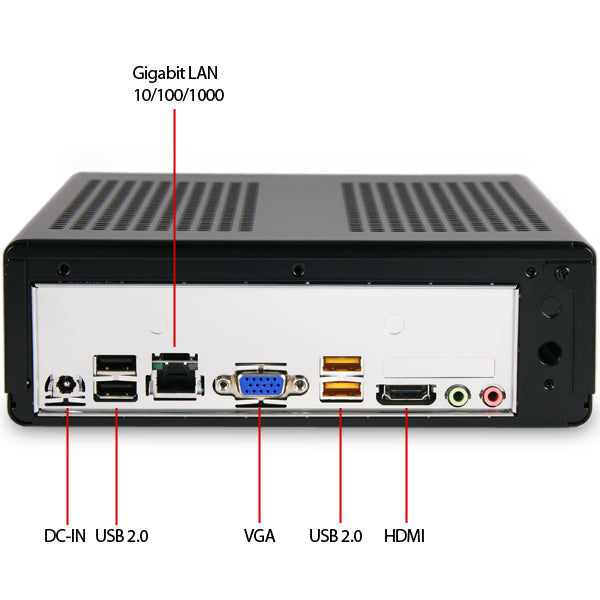

| Rear Panel I/O |
1 x DC-IN
2 x USB 2.0
1 x RJ45 LAN
1 x VGA
2 x USB 2.0 (High Current/Fast Charging)
1 x HDMI
2 x Audio I/O |

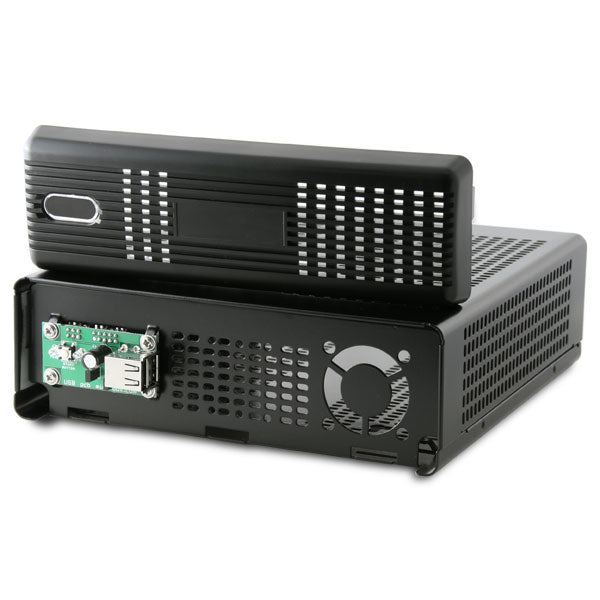

| Front Panel I/O |
2 x USB 2.0
1 x Power Switch w/ Blue Status LED |
| Drive Support |
2 x 2.5" SATA Drive |
| Power Supply |

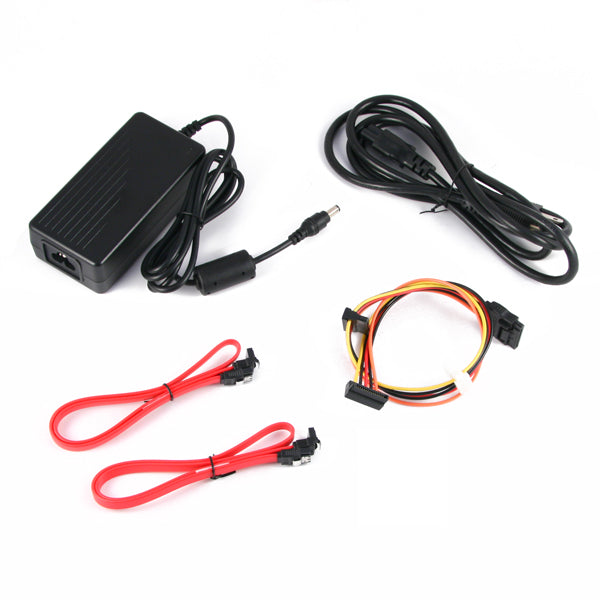

60W 12V Universal AC-DC Adapter (110/220V)
On-board DC-DC Converter (8 ~ 19V DC IN)
External DC-IN Jack (2.5/5.5mm)
Interal 2-pin ATX Power Connector (Molex 5566-2)
Tip: No isolation circuitry; use only one DC-power Source
SATA 15-pin Power OUT
Power Cable Harness |
| Case Dimensions |
Size: 192 x 210 x 62mm
7.56" x 8.27" x 2.44" (in inches) |
| Mounting |
Optional VESA and Wall Mounting Bracket (see options)
Optional DIN Rail Mounting Hardware (see options) |
| Warranty |
1-Year Warranty on Parts and Labor
3-Year Manufacturer's Warranty on Motherboard |
