MITXPC EKARC2550D4I557 Mini-ITX Server w/ Intel Avoton C2550, Dual Intel LAN,Teaming, IPMI

Model Number	EKARC2550D4I557
CPU	Intel Avoton C2550 2.4 - 2.6GHz Quad Core 4 Cores / 4 Threads 14W TDP, 2MB Cache, 64-bit
Chipset	SoC
Memory	4 x 204-pin DDR3 DIMM Maximum 64GB capacity Dual Channel Support 1333MHz Minimum Supports ECC and Non-ECC Unbuffered Memory
Video	ASPEED AST2300 DDR3 16MB VGA Max. Resolution: 1920 x 1200 @ 60Hz
Audio	None
Storage	Intel C2550 SATA controller: 2 x SATA 6.0Gb/s, 4 x SATA 3.0Gb/s Marvell SE9172 controller: 2 x SATA 6.0Gb/s (Supports RAID 0, 1) Marvell SE9230 controller: 4 x SATA 6.0Gb/s (Supports RAID 0, 1, 10)
Connectivity	2 x Intel i210 GbE Supports WOL, Teaming, PXE, Energy Efficient Ethernet 802.3az 1 x Realtek RTL8211E for IPMI ASPEED AST2300 : IPMI 2.0 with iKVM Support
Expansion Slots	1 x PCI-E x8 (2.0) (Inaccessible)

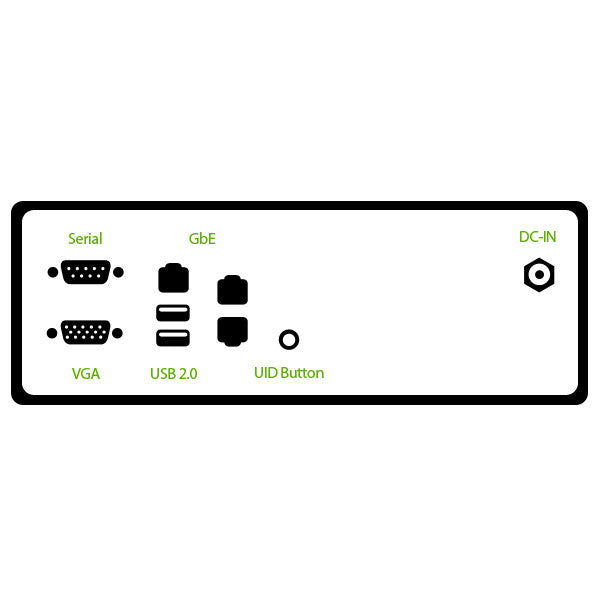

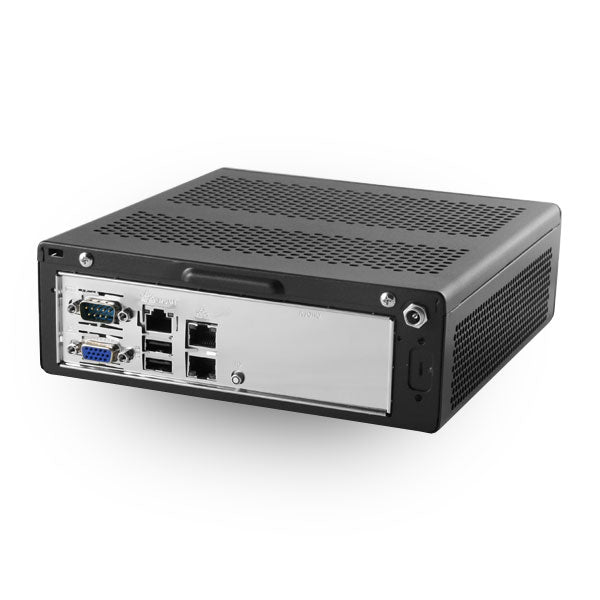

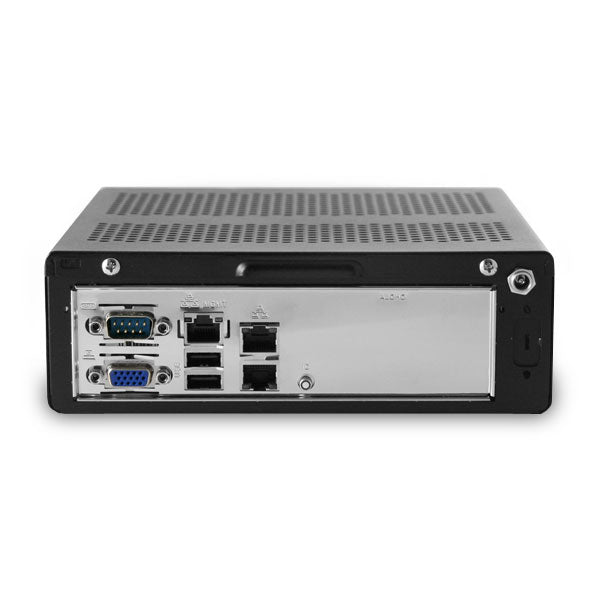

Rear Panel I/O	1 x Serial 1 x VGA 2 x RJ45 LAN 1 x RJ45 IPMI 2 x USB 2.0 1 x UID Button/LED 1 x DC-IN
Front Panel I/O	1 x USB 2.0 1 x Power Switch w/ Blue Status LED
Drive Support	2 x 2.5" SATA Drive

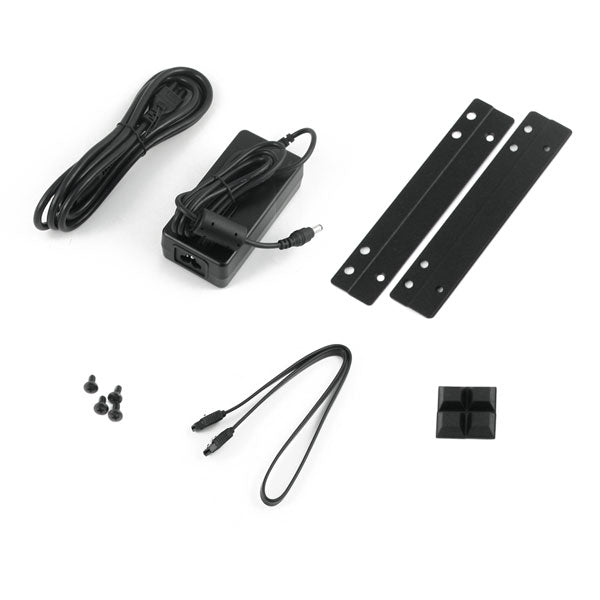

Power Supply	PicoPSU-80: 12V DC-DC Converter 60W 12V Universal AC-DC Adapter (110-240V)
Case Dimensions	190mm x 196mm x 62mm 7.48" x 7.72" x 2.44" (in inches)
Case Cooling	2 x 40mm x 10mm (optional)
Mounting	Wallmount Bracket VESA Mounting Hardware
Warranty	1-Year Warranty on Parts and Labor
