Model Number	DS77U5
CPU	Intel Kaby Lake Core i5-7200U Processor 2.50 - 3.10 GHz 2 Cores / 4 Threads 15W TDP, 14nm, 3 MB SmartCache
Chipset	SoC
Memory	2 x DDR4-2133 SODIMM Slots Maximum 32GB Capacity
Video	Intel HD Graphics 620 300 MHz - 1.00 GHz Supports 4K/UHD Playback Supports Triple Display: 2 x HDMI, 1 x DisplayPort
Audio	Realtek ALC662 HD Audio
Storage Technology	SATA3 6.0Gb/s for HDD/SSD M.2 PCIE x4/SATA SD Card Reader
Connectivity	1 x Intel i219LM GbE LAN 1 x Intel i211 GbE LAN Support Wake-On-LAN Realtek RTL 8188EE 802.11b/g/n Wireless
Expansion Slots	1 x M.2 2230 Type A,E Key (Occupied)

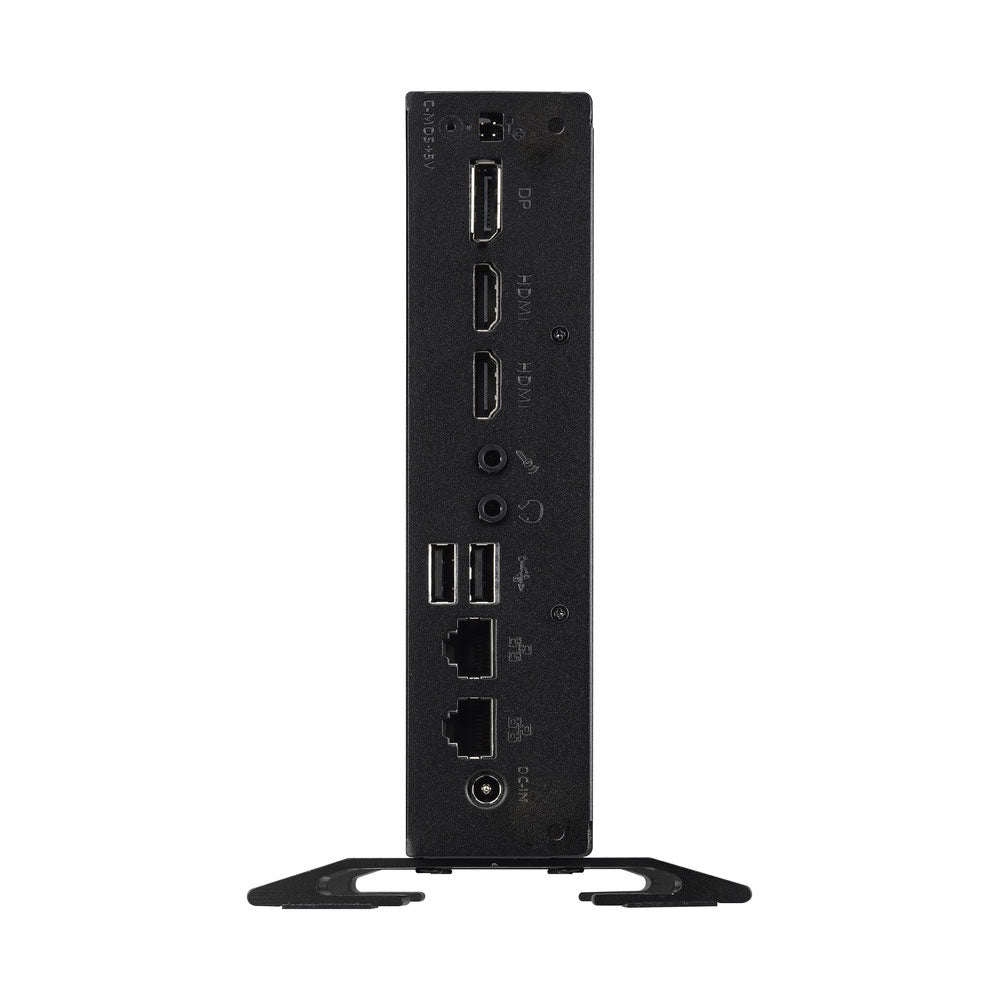

Rear Panel I/O	1 x External Power On/Clear CMOS Header 1 x DisplayPort 2 x HDMI 1 x Mic In 1 x Audio Out 2 x USB 2.0 2 x Rj45 GbE LAN 1 x DC-IN

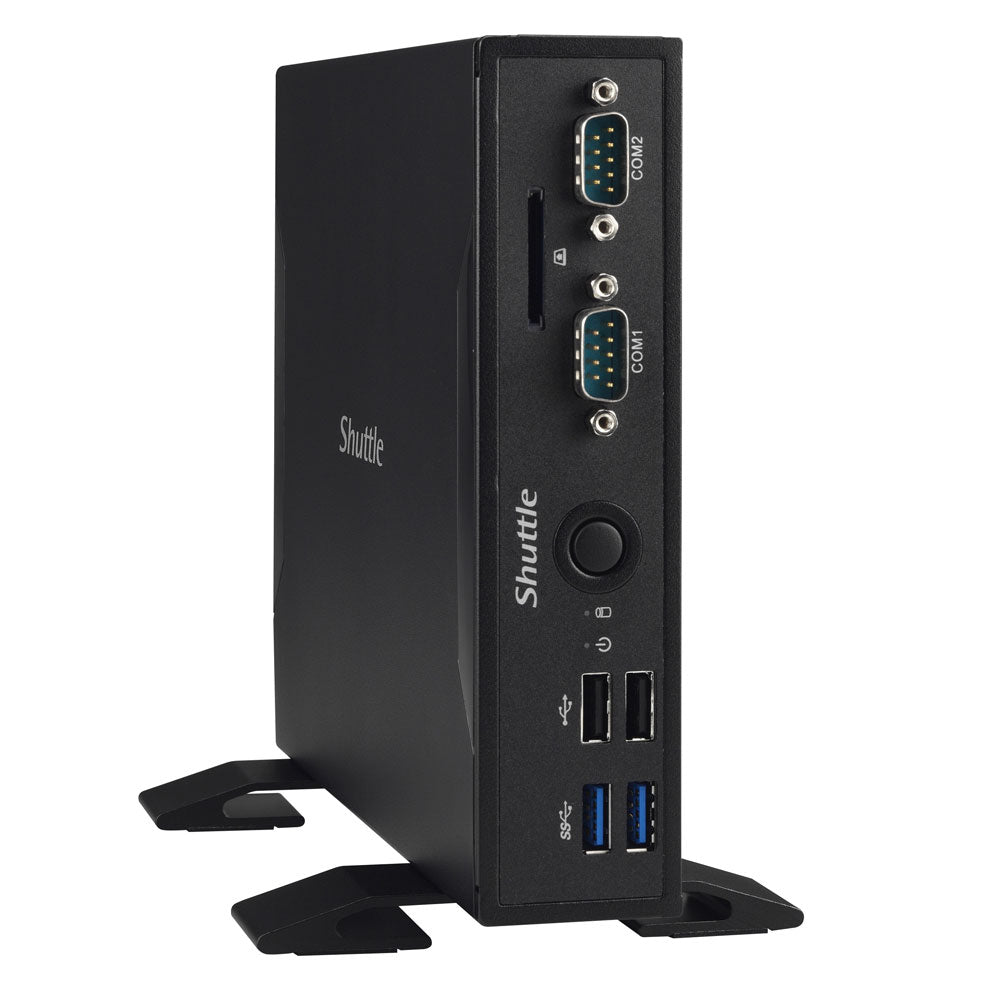

Front Panel I/O	2 x USB 3.0 2 x USB 2.0 2 x Status LED (Power, HDD) 1 x Power Button 1 x Serial COM (RS232/RS422/RS485) 1 x Serial COM (RS232)
Drive Support	1 x 2.5" HDD/SSD Drive 1 x M.2 Type M 2280
Power Supply	Input: 100-240V AC Output: 19V/3.42A or 12V/5.42A DC 65W 19V Adapter Included
Case Dimensions	200 x 165 x 39.5mm 7.9" x 6.5" x 1.6" (in inches)
Mounting	Two Metal Feet Stand VESA mount Included
OS Support	Windows 10 64-Bit Ubuntu Linux
Warranty	3-Year Manufacturer Limited Warranty
