| Manufacturer | Shuttle |
| Product ID | DH410 |
| CPU |
Supports Intel 10th Gen Processors, Comet Lake LGA 1200 Supports up to 65W TDP |
| Chipset | Intel H410 Express |
| Memory |
2 x DDR4 SODIMM slots Maximum 64GB Capacity 2666/2933 MHz Dual Channel Non-ECC, Unbuffered Memory Only |
| Video |
Intel HD Graphics (CPU Dependent) Supports Dual 4K Displays (Dual Channel Memory Recommended) Supports 2 Displays |
| Audio |
Realtek ALC662 HD Audio |
| Storage Technology |
1 x SATA3 6.0 GB/s Ports 1 x M.2 2280 slot: SATA or PCIe |
| Connectivity |
2 x Intel I210-AT GbE LAN Supports Wake-On-LAN Supports Teaming Function |
| Expansion Slots |
1 x M.2 2230 slot (E Key) |

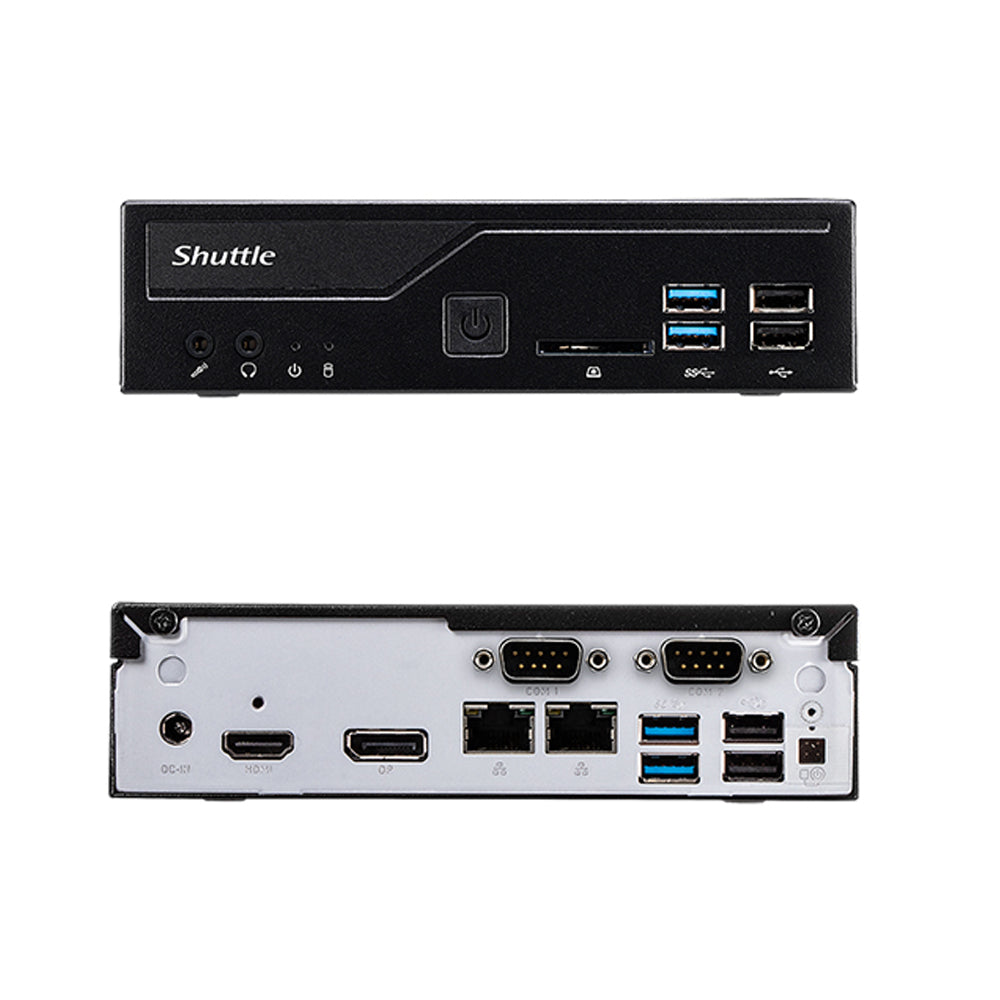

| Rear Panel I/O |
1 x 19V DC-IN 1 x HDMI 1 x DisplayPort 1 x COM (RS232/422/485) 2 x RJ45 GbE LAN 1 x COM (RS232) 2 x USB 3.2 (Gen1) 2 x USB 2.0 1 x External 4-Pin header |
| Front Panel I/O |
1 x Audio In 1 x Audio Out 2 x Status LED (Power, HDD) 1 x Power Button 1 x SD Card Reader 2 x USB 3.2 (Gen1) 2 x USB 2.0 |
| Drive Support |
1 x 2.5" Drive Bay 1 x M.2 2280 slot (M Key, PCIe/SATA) |
| OS Support |
Windows 10 64-Bit Linux |
| Power Supply |
19V DC-IN 90W 19V AC/DC Adapter Input: 100-240V AC |
| Case Dimensions |
190 x 165 x 43mm 7.5" x 6.5" x 1.7" (in inches) |
| Mounting | VESA |
| Warranty | 1-Year Warranty on Parts and Labor |
PRODUCT ID: DH410
