| Manufacturer | Shuttle |
| Product ID | DH110-SE |
| CPU | Supports Intel 6th/7th Gen Processors Skylake/Kabylake LGA 1151 CPU Max TDP 65W |
| Chipset | H110 |
| Memory | 2 x DDR4-2133MHz SODIMM slots Maximum 32GB capacity Non-ECC, Unbuffered Memory Only Dual Channel |
| Video | Intel HD Graphics (CPU Dependent) Supports Dual Display 4K Playback (Dual Channel Memory Recommended) |
| Audio | Realtek ALC662 HD Audio |
| Storage Technology | SATA3 6Gb/s M.2: SATA |
| Connectivity | 1 x Realtek RTL8111G GbE LAN Supports Wake-On-LAN |
| Expansion Slots | 1 x M.2 2230 slot (Type A, E Key) |
| Front Panel I/O | 1 x Audio In 1 x Audio Out 2 x Status LED (Power, HDD) 1 x Power Button 1 x SD Card Reader 2 x USB 3.0 2 x USB 2.0 |
| Rear Panel I/O | 1 x 19V DC-IN 1 x HDMI 1 x DisplayPort 1 x RJ45 GbE LAN 4 x USB 2.0 1 x External Power on/Clear CMOS header |
| Drive Support | 1 x 2.5" Drive Bay 1 x M.2 2260 slot (SATA Only, M Key) |
| Power Supply | 19V DC-IN 90W 19V 4.74A Adapter 100-240V AC Input |
| Case Dimensions | 190 x 165 x 43mm 7.5" x 6.5" x 1.7" (in inches, approximate) |
| Warranty | 3-Year Manufacturer's Limited Warranty |
PRODUCT ID: DH110-SE

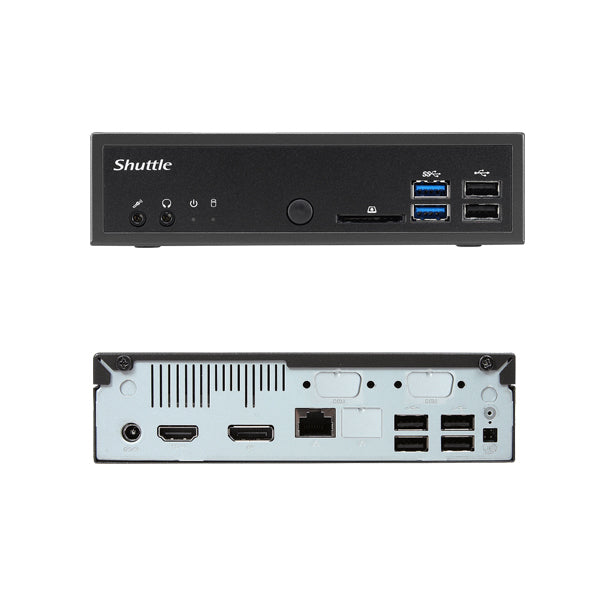

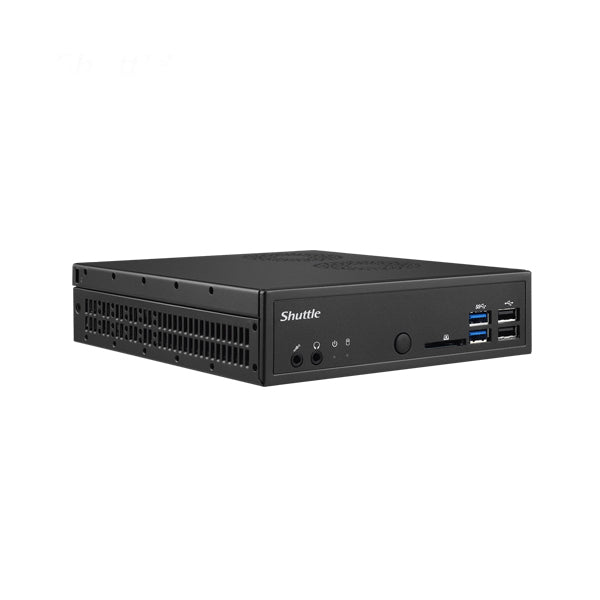

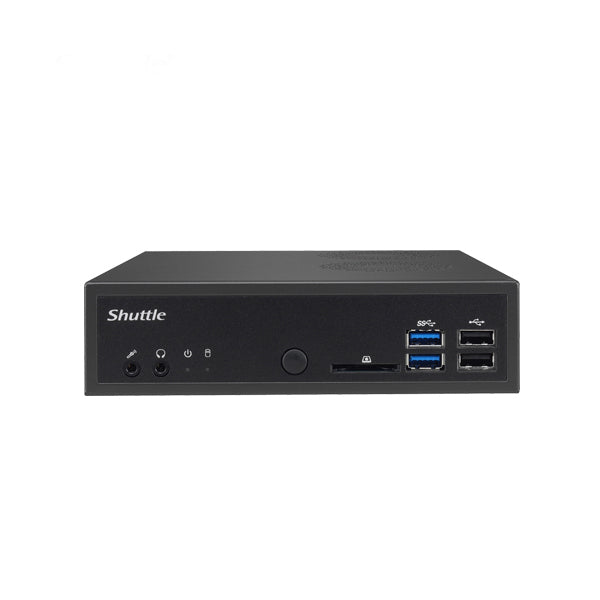

Shuttle DH110 SE Skylake/Kabylake Media Player XPC Slim PC, Dual Display
This product is discontinued!
