Product ID	NUC7i5BNK
CPU	Intel i5-7260U Dual Core Processor 2.2 - 3.4GHz 2C/4T; 4MB Cache; 15W TDP
Chipset	SoC
Memory	DDR4 2133MHz Minimum 2 x SODIMM Slots 32GB Maximum Dual Channel Intel Optane Memory Ready
Graphics	Intel Iris Plus Graphics 640 OpenGL 4.4; DirectX 12 HDCP 2.2 Supported HDMI 2.0; 4K @ 60Hz Thunderbolt 3 with DisplayPort 1.2; 4K @ 60Hz Multi-Stream Transport (MST) Capable* *Daisy chain up to 3 DisplayPort 1.2 monitors; resolution reduced to 1080p.
Storage Technology	M.2 AHCI SATA or NVMe (PCIe x4 3.0) SATA 6Gbps Micro SDXC with UHS-I support
Connectivity	Intel I219-V Gigabit Ethernet Intel Wireless-AC 8265; 2x2 Bluetooth 4.2
Audio	Up to 7.1 surround audio via HDMI or DisplayPort signals Headphone/microphone jack on the front panel Dual array mics on the chassis front

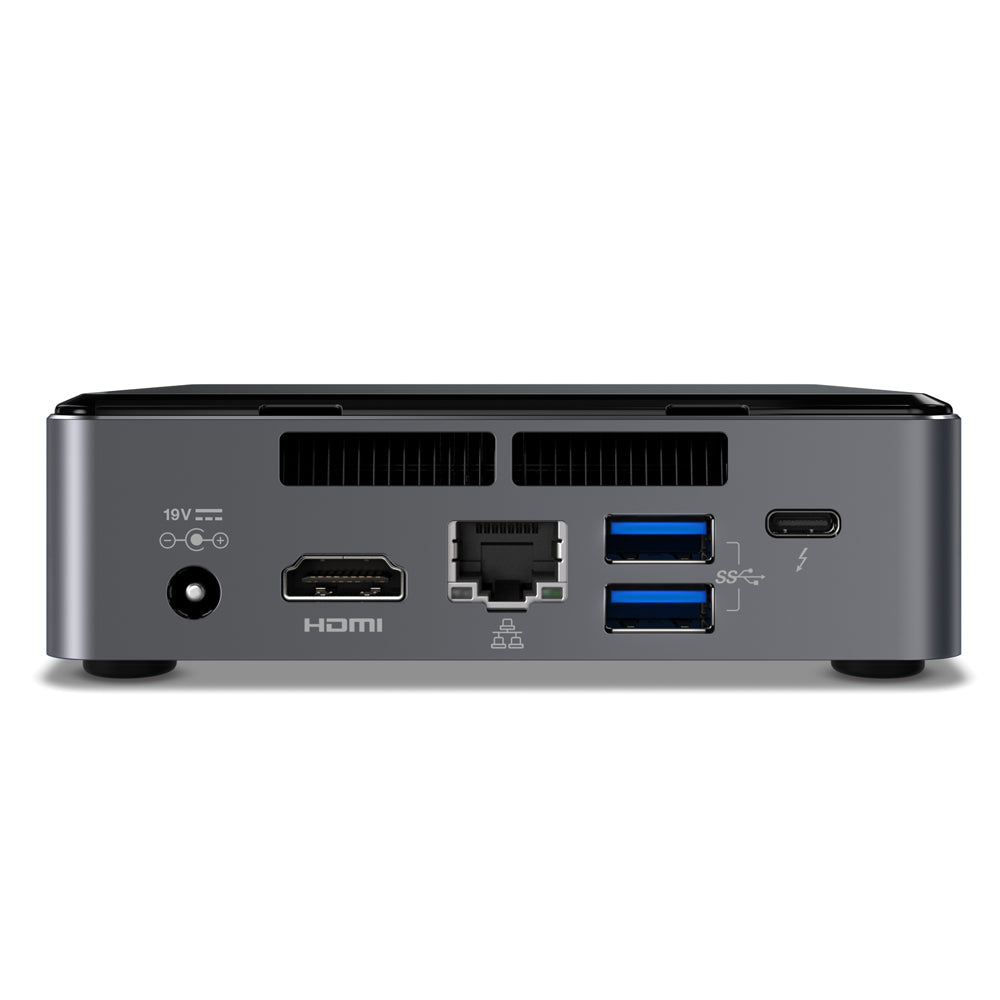

Rear I/O	1 x 19V DC-IN Jack 1 x HDMI 1 x RJ45 LAN 2 x USB 3.0 1 x USB C Thunderbolt 3 (USB 3.1, DisplayPort 1.2, 40Gbps Thunderbolt)
Front & Side I/O	2 x USB 3.0 (One device-charging port) 1 x MIC/Headset Jack 1 x Power Button Multi-color Front Panel LED Ring Dual-array MICs 1 x Micro SD slot 1 x Kensington Security Slot
Drive Support	1 x M.2 2242/2280 (SATA or NVMe)
Fan Support	Active cooling
Power Supply	19V, 65W wall-mountable AC-DC power adapter
Case Dimensions	115 x 111 x 35mm 4.53" x 4.37" x 1.38" (in inches)
Additional Features	Microsoft Windows® 10 logo’d, compatible with various Linux distros Support for user-replaceable third-party lids Fan sensor inputs used to monitor fan activity ACPI-compliant power management control HDD LED, Power LED, power on/off Multi-color selectable front panel LED ring Kensington lock with base security
Warranty	3-year Manufacturer's Warranty
