| Manufacturer |
Intel |
| Product ID |
BKNUC9VXQNX1 |
| CPU |
Intel Xeon E-2286M Processor
2.4 - 5.0 GHz
8 Cores / 16 Threads
45W TDP, 16MB Intel SmartCache |
| Chipset |
Intel CM246 |
| Memory |
2 x DDR4 SODIMM slots
Maximum 64GB capacity
2666MHz
Supports ECC/Non-ECC
Dual Channel |
| Video |
Intel UHD Graphics P630
350 MHz - 1.25 GHz
DisplayPort via USB-C Max Resolution: 4096x2304@60Hz
HDMI Max Resolution: 4096x2304@30Hz
Supports up to three displays |
| Audio |
Intel HD Audio via HDMI and USB Type-C
Realtek HD Audio via 3.5mm speaker/TOSLINK jack on back
Realtek HD Audio via 3.5mm audio I/O on front |
| Storage Technology |
M.2: PCI-E or SATA
Supports Intel RAID 0, RAID 1
SDXC slot with UHS-II Support |
| Connectivity |
1 x Intel I219-LM Gigabit Ethernet
1 x Intel i210-AT Gigabit Ethernet
Intel WiFi 6 AX200
Dual Band, WiFi 802.11ax and Bluetooth 5
|
| Expansion Slots |
1 x PCI-E 3.0 x16 slot
Supports Dual Width, Maximum 8" Length (202mm)
1 x PCI-E 3.0 x4 slot
Note: PCI-E x16 slot will run in x8 mode if PCI-E x4 slot or M.2 NVMe Only slot occupied.
Note: PCI-E x16 slot dual slot will occupy space over PCI-E x4 slot. |

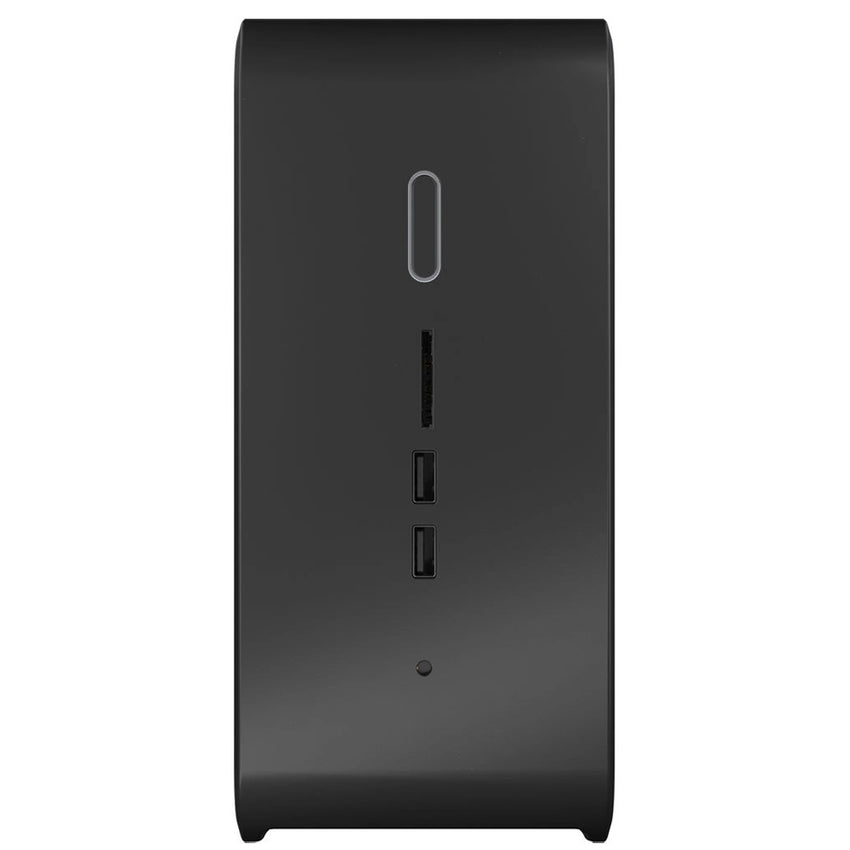

| Front Panel I/O |
1 x Power Button w/ Status LED
1 x SDXC slot with UHS-II support
2 x USB 3.1 (Gen2) Type A Ports
1 x 3.5mm Audio I/O
|

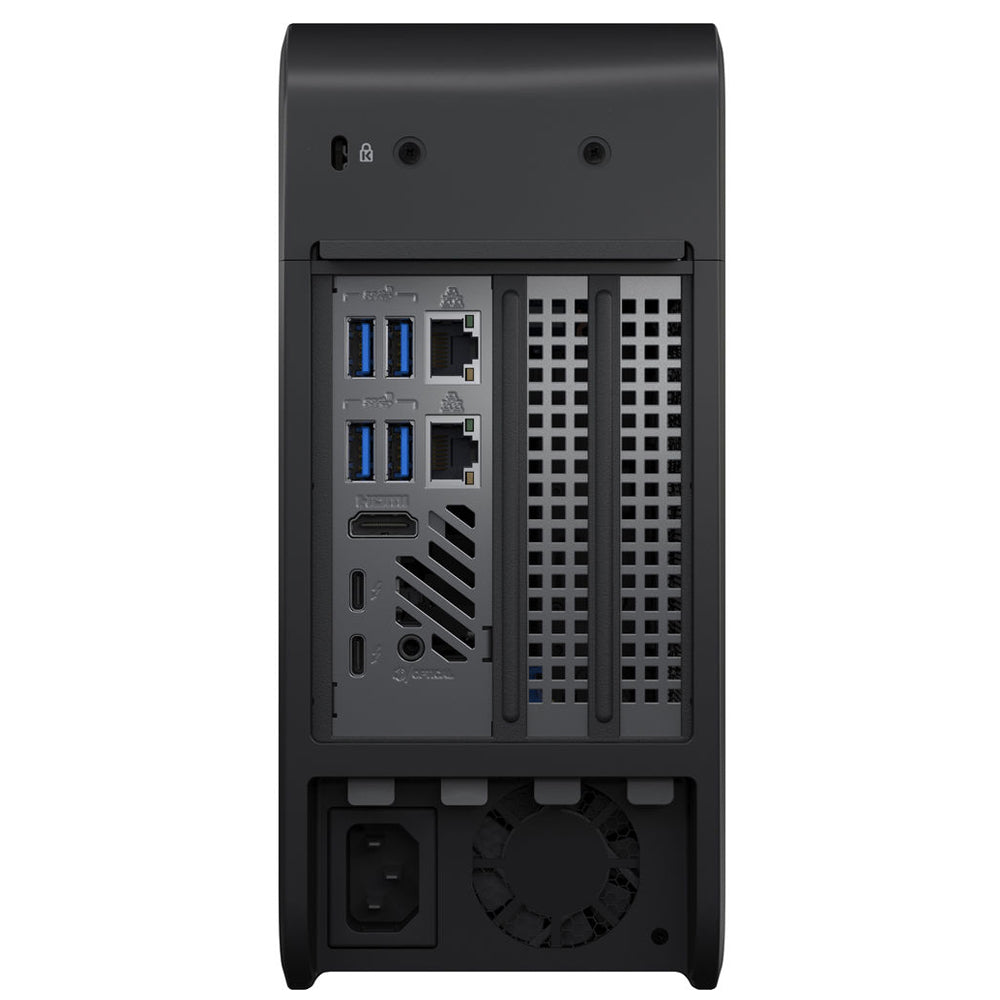

| Rear Panel I/O |
2 x RJ45 GbE LAN
4 x USB 3.1 (Gen2) Type A Ports
1 x HDMI
2 x Thunderbolt 3 Ports
1 x Stereo/TOSLINK combo jack
|
| Drive Support |
1 x M.2 2242/2280/22110 slots (PCI-E x4 or SATA)
1 x M.2 2242/2280/22110 slot (PCI-E x4 only, on baseboard)
Note: PCI-E lanes for NVMe only slot shared with PCI-E 3.0 x16 slot
1 x M.2 2242/2280 slot (PCI-E x4 or SATA) |
| Power Supply |
500W 80+ Platinum Flex ATX Power Supply
AC Input: 100-240V, 6-3A, 50-60Hz
|
| Case Dimensions |
238 x 216 x 96mm
9.37" x 8.50" x 3.78" (in inches, approximate) |
| Environmental |
Operating Temperature: 0°C to 35°C (32°F to 95°F)
Non-Operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Compliance |
IEC 60950-1, UL 60950-1, EN 60950-1, CAN/CSA-C22.2 No. 60950-1
RoHS Directive 2011/65/EU, WEEE Directive 2012/19/EU, China RoHS |
| Warranty |
1-Year Manufacturer's Limited Warranty |
