Manufacturer	Intel
Product ID	NUC8I3PNK
CPU	Intel Core i3-8145U Processor 2.10 - 3.90 GHz 2 Cores / 4 Threads 15W TDP, 4MB Smart Cache
Chipset	SoC
Memory	2 x DDR4 SODIMM slots Maximum 64GB Capacity 2400 MHz Minimum Dual Channel Non-ECC, Unbuffered Memory Only
Video	Intel UHD Graphics 620 300 MHz - 1.0 GHz 32GB Graphics Video Max Memory HDMI Max Resolution: 4096x2304@24Hz Supports Triple Display va Thunderbolt 3
Audio	7.1 Channel Audio via HDMI
Storage Technology	M.2: SATA or PCI-E 3.0 x4
Connectivity	1 x Intel i219-LM GbE LAN Wireless AC 9560 Bluetooth 5.0
Expansion Slots	1 x M.2 2230 slot (Occupied by Wireless)

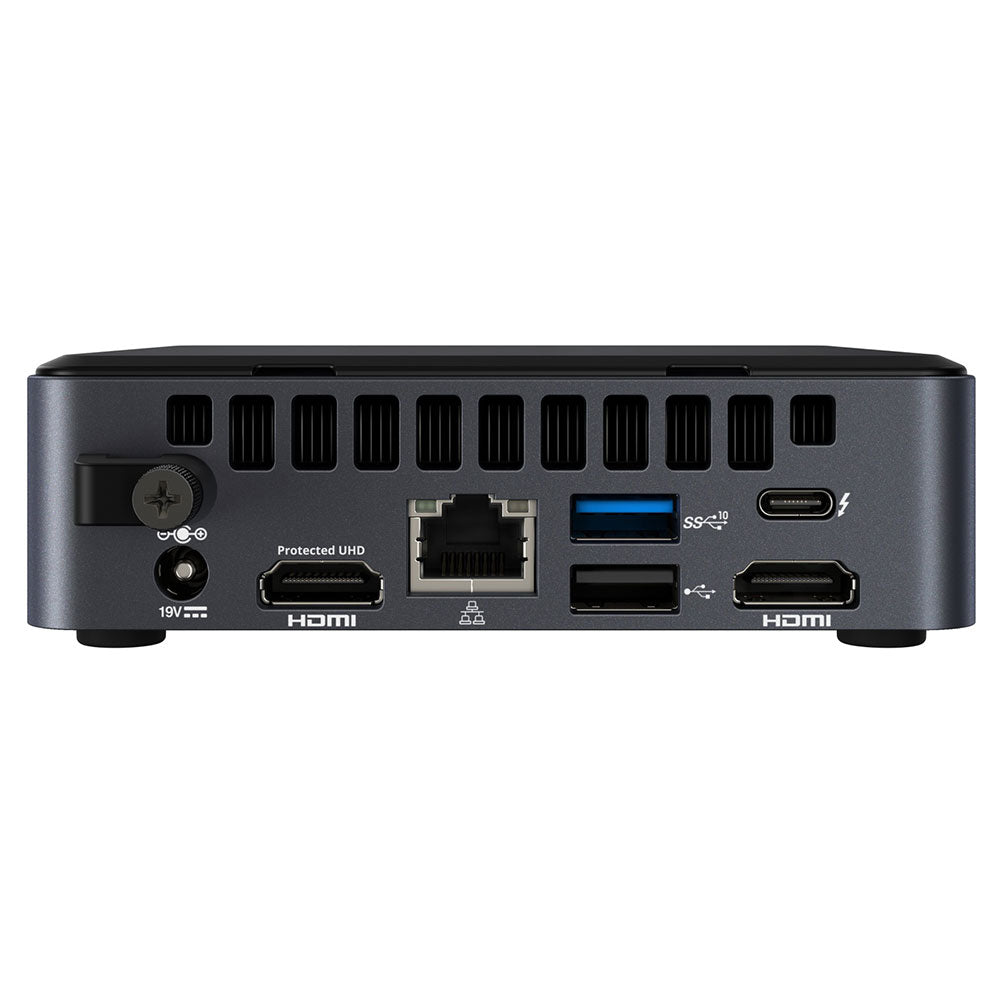

Rear Panel I/O	1 x Ground Screw 1 x 12-24V DC-IN 1 x HDMI 1 x RJ45 GbE LAN 1 x USB 3.1 (Gen2) 1 x USB 2.0 1 x Thunderbolt 3 1 x HDMI

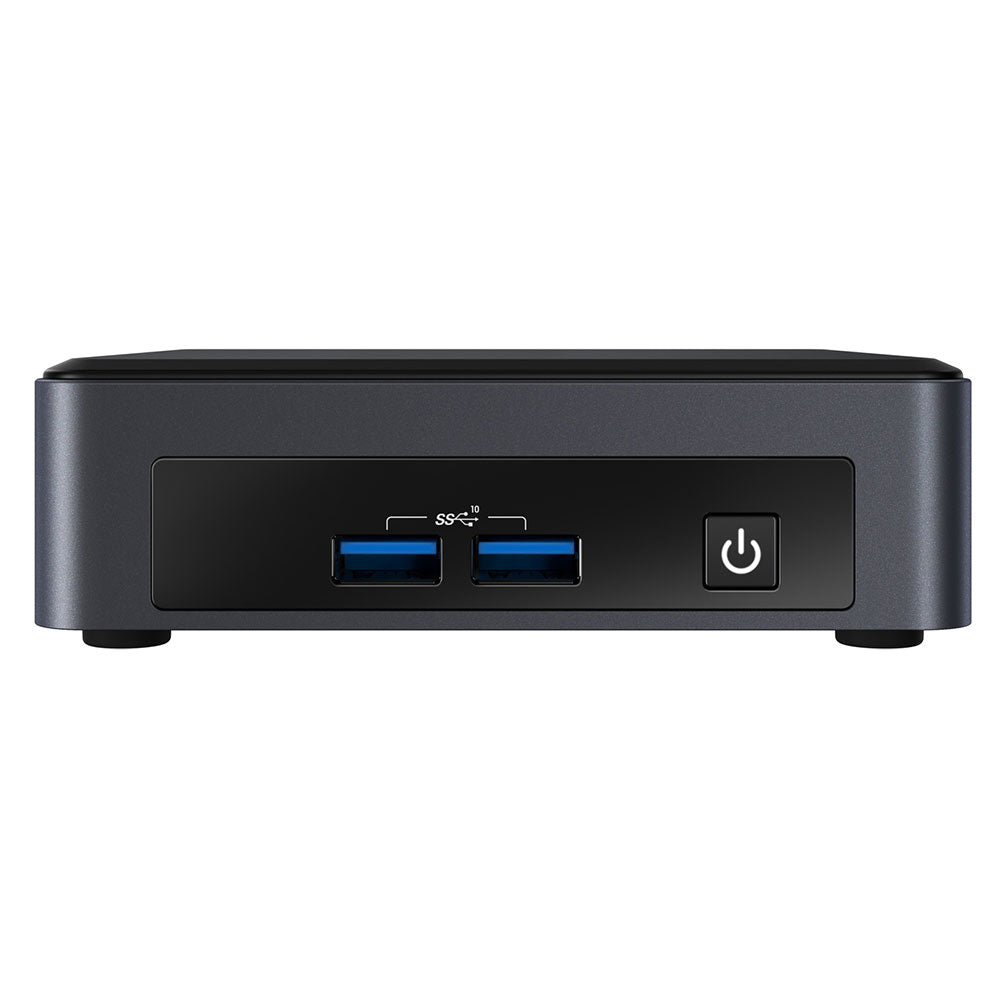

Front Panel I/O	2 x USB 3.1 (Gen2) 1 x Power Button w/ LED
Drive Support	1 x M.2 2280 slot (SATA or NVMe)
Power Supply	12-24V DC-IN 19V 90W AC-DC Adapter
Case Dimensions	4.61" x 4.41" x 1.42" (in inches) 117 x 112 x 36mm
Mounting	VESA Mounting Bracket
Environmental	Operating Temperature: 0°C to 35°C (32°F to 95°F) Non-operating Temperature: -20°C to 40°C (-4°F to 104°F)
Compliance	EU RoHS, China RoHS, Taiwan BSMI RoHS, REACH
Warranty	3-Year Manufacturer's Limited Warranty
