Product ID	SYS-1018GR-T
CPU	Intel Xeon E5-1600 v4/v3 Intel Xeon E5-2600 v4/v3 145W TDP MAX LGA 2011
Chipset	Intel C612
Memory	8 x DDR4 DIMM Slots Up to 1TB ECC 3DS LRDIMM Up to 512GB ECC LRDIMM Up to 512GB ECC RDIMM 2133MHz Minimum DIMM Capcities: 3DS LRDIMM: 128GB Minimum LRDIMM: 32GB Minimum RDIMM: 4GB Minimum
Video	ASPEED AST2400 BMC
Storage Technology	6 x SATA 6Gbps RAID 0, 1, 5, 10 SAS/SATA Backplane 2 x DOM Power Connectors
Connectivity	2 x Intel i350 Gigabit LAN 1 x Dedicated IPMI 2.0 w/ virtual media-over-LAN and KVM-over-LAN
Management	IPMI 2.0
Expansion	2 x PCIe x16 3.0 Slots (Supports NVIDIA GPU/Xeon Phi) 1 x PCIe x8 3.0 Half-height Slot

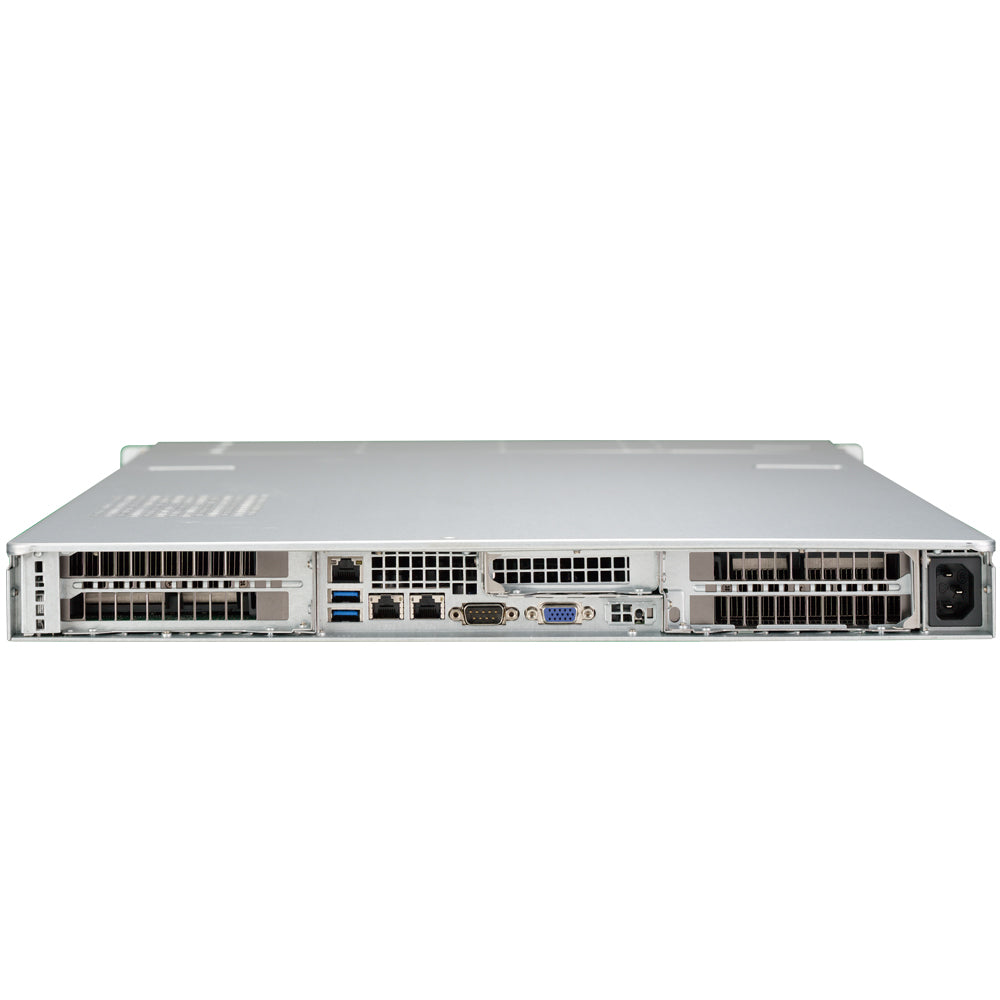

Rear I/O	1 x RJ45 (IPMI) 2 x USB 2.0 1 x Serial Port 1 x VGA Port
Front I/O	1 x Power LED 1 x Hard Drive activity LED 2 x Network activity LED 1 x System Overheat/fan-fail/UID LED 1 x Reset Switch 1 x Power Switch 3 x 3.5" Hot-swap SATA Drive Bays
Drive Support	6 x 2.5" SATA Drives 2 x SATA DOM
Power Supply	1400W High-efficiency Redundant power supply with Digital Switching Control & PMBus 1.2 1200W MAX @ 100 ~ 140V 1400W MAX @ 180 ~ 240V 100 ~ 240V Operation 80 PLUS Platinum Certified
Case Dimensions	437mm x 724mm x43mm 17.20" x 28.5" x 1.69" (in inches)
Case Cooling	8 sets of 40mm, counter-rotating PWM fans
Mounting	Standard 19" 1U Rackmount Two sets of rail assemblies, mounting brackets and mounting screws are included. The rails will fit a rack between 25.6" and 33" deep. Optional brackets (P/N: MCP-290-00016-0N) are needed to install the server to a two post (telco type) rack.
Warranty	1-Year Warranty on Parts and Labor
